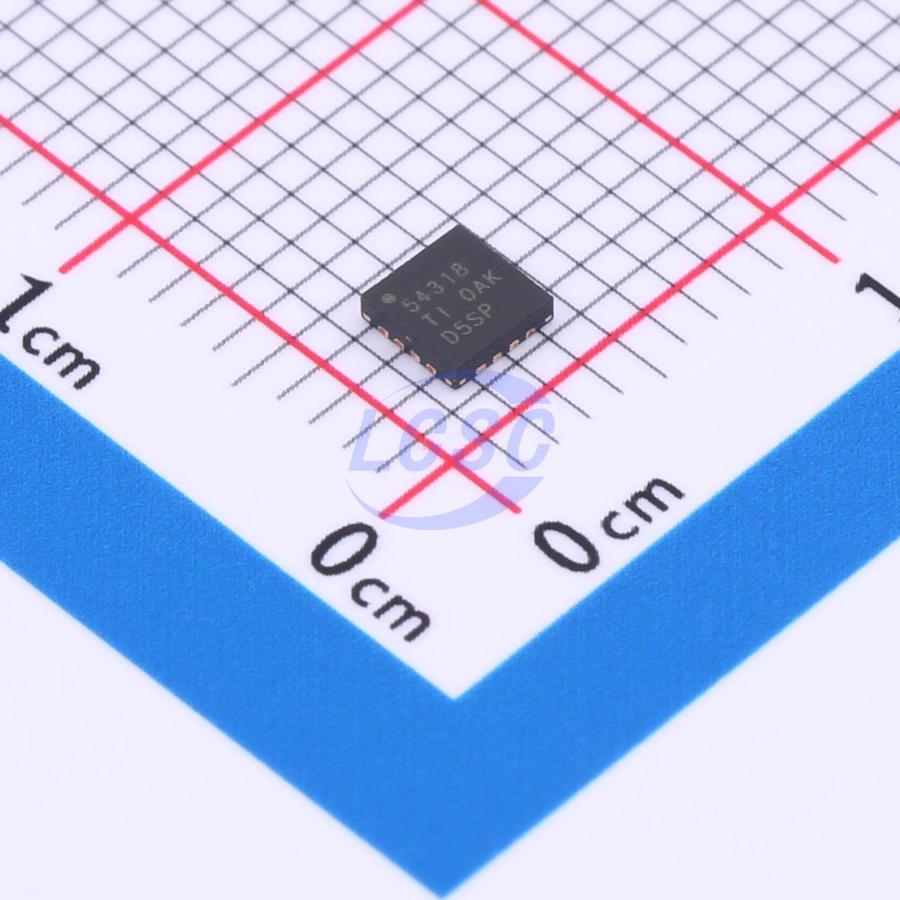

TPS54318RTET

The TPS54318 device integrates MOSFETs, implements current mode control to reduce external component count, supports switching frequencies up to 2MHz to minimize inductor size, and features a compact 3mm×3mm thermally enhanced QFN package to minimize device footprint, enabling small-form-factor designs. The TPS54318 is a full-featured 6V, 3A synchronous step-down current mode converter with two integrated MOSFETs. The TPS54318 provides precise regulation with a voltage reference (V_REF) accuracy of ±1% across the full temperature range for a wide variety of loads. Efficiency is maximized through integrated 30mΩ MOSFETs and a typical quiescent current of 350μA. Shutdown mode via the EN pin reduces shutdown supply current to 2μA. UVLO is internally set at 2.6V but can be increased by setting the threshold via a resistor network on the enable pin. The output voltage startup ramp is controlled by the soft-start pin. An open-drain power-good signal indicates that the output is within 93% to 107% of its nominal voltage. Frequency foldback and thermal shutdown protect the device from damage under overcurrent conditions.

Applications

• Low-voltage, high-density power systems
• Point-of-load regulation for high-performance DSP, FPGA, ASIC, and microprocessors
• Broadband, network interconnect, and fiber optic communication infrastructure

Key features

• Two 30mΩ (typical) MOSFETs for high efficiency at 3A load
• Switching frequency: 200kHz to 2MHz
• Voltage reference across full temperature range: 0.8V ±1%
• Synchronization to external clock
• Adjustable soft-start/sequencing
• Undervoltage (UV) and overvoltage (OV) power-good output
• Low operating and shutdown quiescent current
• Safe start-up into pre-biased output voltage
• Cycle-by-cycle current limiting, thermal and frequency foldback protection
• Operating junction temperature range: -40°C to 150°C
• Thermally enhanced 3mm×3mm 16-pin WQFN package
• Create custom designs using TPS54318 with WEBENCH Power Designer
