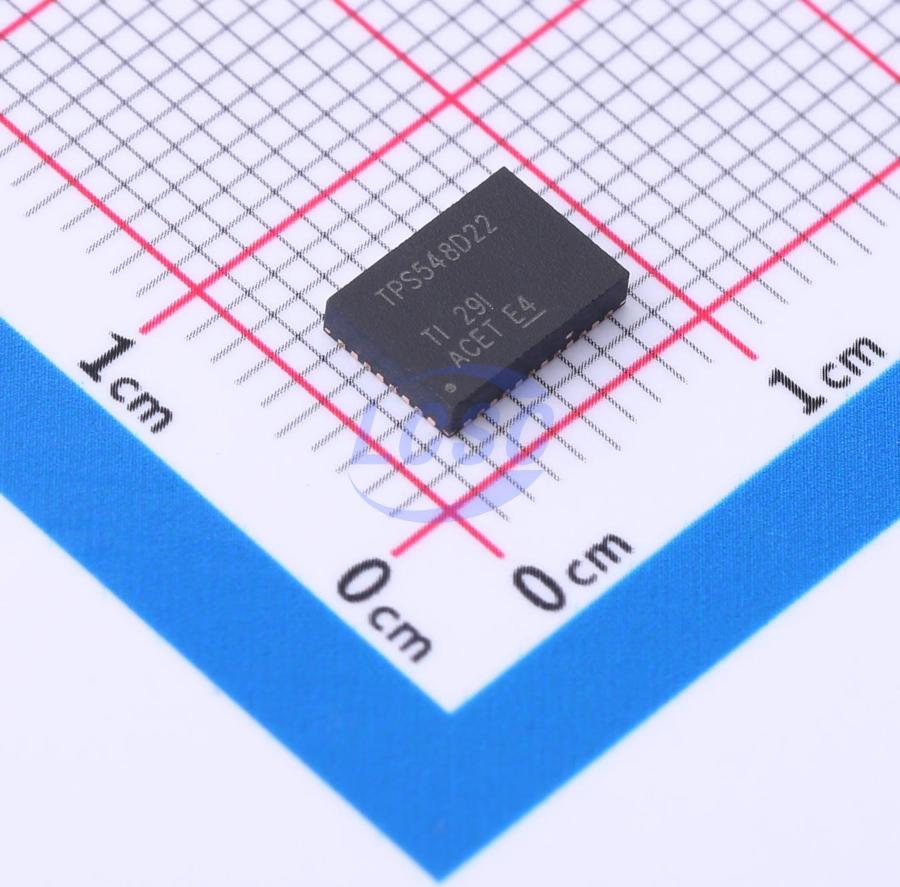

TPS548D22RVFR
Buck Switching Regulator IC Adjustable 0.6V~5.5V 1 Output 40A LQFN-40-EP(5x7)
LQFN-40-EP(5x7)ROHS3 CompliantActive
Synchronous buck converter with 1.5V to 16V VIn, 4.5V to 22V VpD, 40A and full differential sensing capabilities
- Manufacturer
- TI
- Manufacturer part #
- TPS548D22RVFR
- Store part #
- C882738
- Package / case
- LQFN-40-EP(5x7)
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
169 in stock
#C882738
Stock & price checked 6 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹685.01 | ₹685.01 |
| 10+ | ₹593.44 | ₹5,934.40 |
| 30+ | ₹539.02 | ₹16,170.60 |
| 100+ | ₹483.95 | ₹48,395.00 |
| 500+ | ₹458.68 | ₹2,29,340.00 |
| 1,000+ | ₹447.24 | ₹4,47,240.00 |
1 × ₹685.01
₹685.01
excl. GST
₹808.31 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 2,500 per reel
TPS548D22RVFR
₹685.01 for 1 + GST
Specifications
- Operating Temperature
- -40℃~+125℃@(TJ)
- Frequency - Switching
- 425kHz;650kHz;875kHz;1.05MHz
- Function
- Step-down type
- Number of Outputs
- 1
- Features
- Adjustable current limiting;Cycle-by-cycle current limiting;Protection latch;Adjustable soft-start;Output discharge;Light load efficient mode;Output voltage differential sensing;Built-in LDO regulator;Operating status indication;Overcurrent Protection
- Output Type
- Adjustable
- Topology
- Buck
- Operating Voltage
- 1.5V~16V
- Switch tube (built-in/external)
- Built-in
- Output Current
- 40A
- Output Voltage
- 600mV~5.5V
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 2,500 / Reel
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 0.2 g
