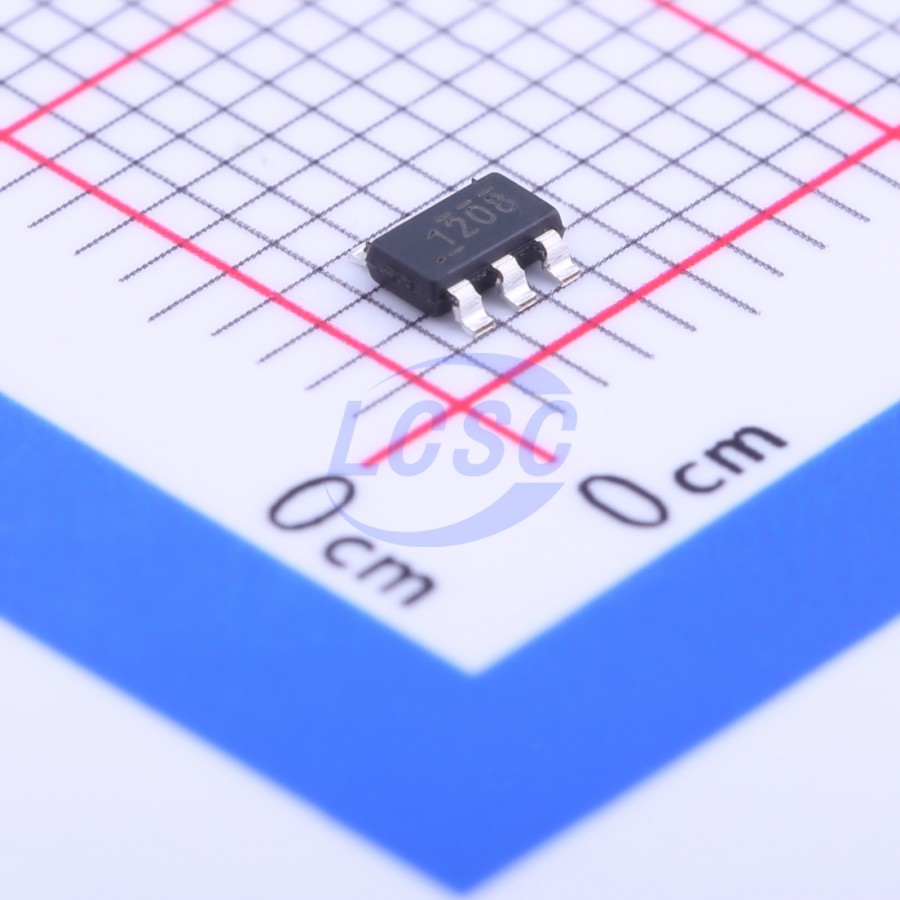

TPS561208DDCR

TPS561201 and TPS561208 are easy-to-use 1A synchronous buck converters in a SOT-23 package. These devices are optimized to operate with a minimum number of external components while achieving low standby current. These SMPS devices employ D-CAP2 mode control to provide fast transient response and support low-ESR output capacitors such as polymer capacitors and ultra-low ESR ceramic capacitors without external compensation components. The TPS561201 operates in pulse-skip mode to maintain high efficiency during light-load operation. Both the TPS561201 and TPS561208 are available in a 6-pin 1.6×2.9 (mm) SOT (DDC) package, rated for a junction temperature range of -40°C to 125°C.

Applications

• Digital TV power supplies
• HD Blu-ray disc players
• Network home terminal equipment
• Digital set-top boxes (STB)
• Security surveillance

Key features

• TPS561201 and TPS561208 1A converters integrate 140mΩ and 84mΩ FETs
• D-CAP2™ mode control for fast transient response
• Input voltage range: 4.5V to 17V
• Output voltage range: 0.76V to 7V
• Pulse skip mode (TPS561201) or continuous conduction mode (TPS561208)
• 580kHz switching frequency
• Low shutdown current (less than 10μA)
• 2% feedback voltage accuracy (25°C)
• Start-up from pre-biased output voltage
• Cycle-by-cycle overcurrent limiting
• Discontinuous mode overcurrent protection
• Non-latching undervoltage protection (UVP) and thermal shutdown (TSD)
• Fixed soft-start time: 1.0ms
• Use TPS56120x with WEBENCH® Power Designer to create custom designs
