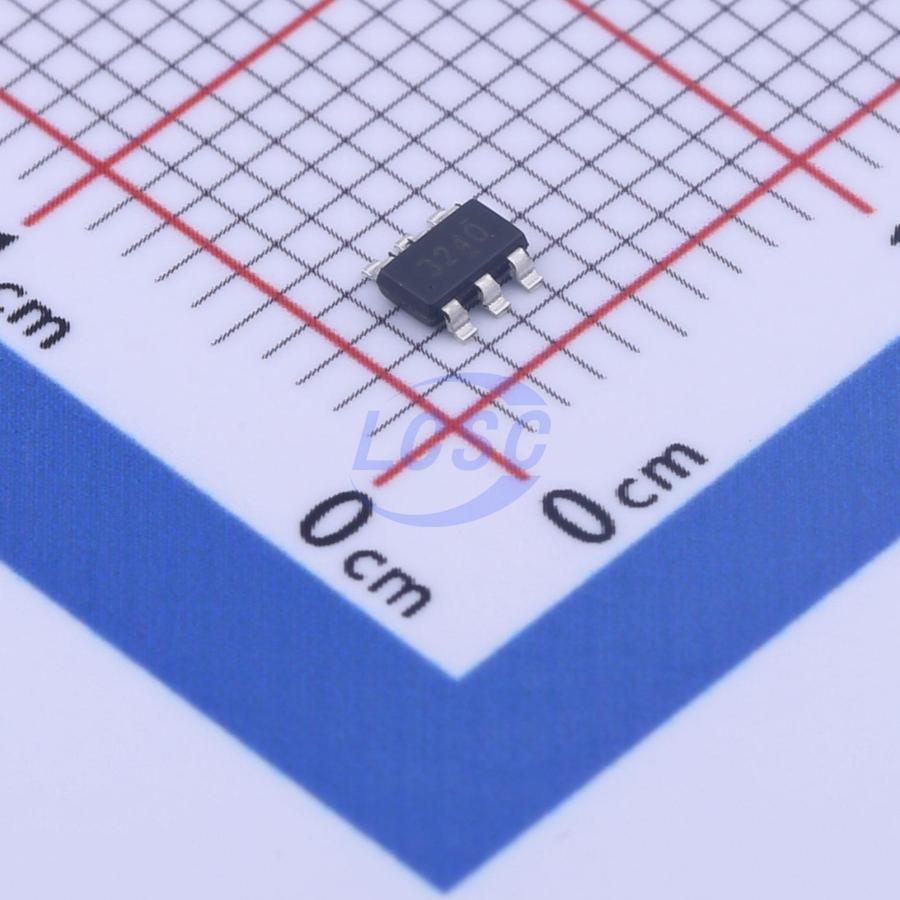

TPS563240DDCR

TPS563240 is an easy-to-use 3A synchronous buck regulator in a SOT-23 package. Peak transient output current reaches 3.5A. These devices are optimized to minimize the number of external components required for operation and to achieve low standby current. This switching regulator employs D-CAP3 mode control to provide fast transient response and supports low ESR output capacitors such as dedicated polymer capacitors and ultra-low ESR ceramic capacitors without requiring external compensation components. The TPS563240 operates in pulse-skipping mode to maintain high efficiency during light-load operation. With Quiet™ (OOA) mode operation, the TPS563240 keeps Fsw above 25kHz under light-load conditions. The TPS563240 is available in a 6-pin 1.6mm × 2.9mm SOT (DDC) package and is rated for a junction temperature range of -40°C to 125°C.

Applications

• TVs, set-top boxes
• Broadband modems
• Access point networks
• Wireless routers
• Security surveillance

Key features

• 3A converter with integrated 70mΩ and 30mΩ FETs, supporting 3.5A transient current
• D-CAP3™ mode control for fast transient response
• Input voltage range: 4.5V to 17V
• Output voltage range: 0.6V to 7V
• Pulse-skip mode with Acoustic Optimized Architecture™ (OOA) mode operation, Fs above 25kHz at light load
• 1.4MHz switching frequency
• Low shutdown current (below 10μA)
• 1% feedback voltage accuracy (25°C)
• Pre-biased output startup
• Cycle-by-cycle overcurrent limiting
• Discontinuous mode overcurrent protection
• Non-latching undervoltage protection (UVP) and thermal shutdown (TSD)
• Fixed soft-start time: 1.7ms
