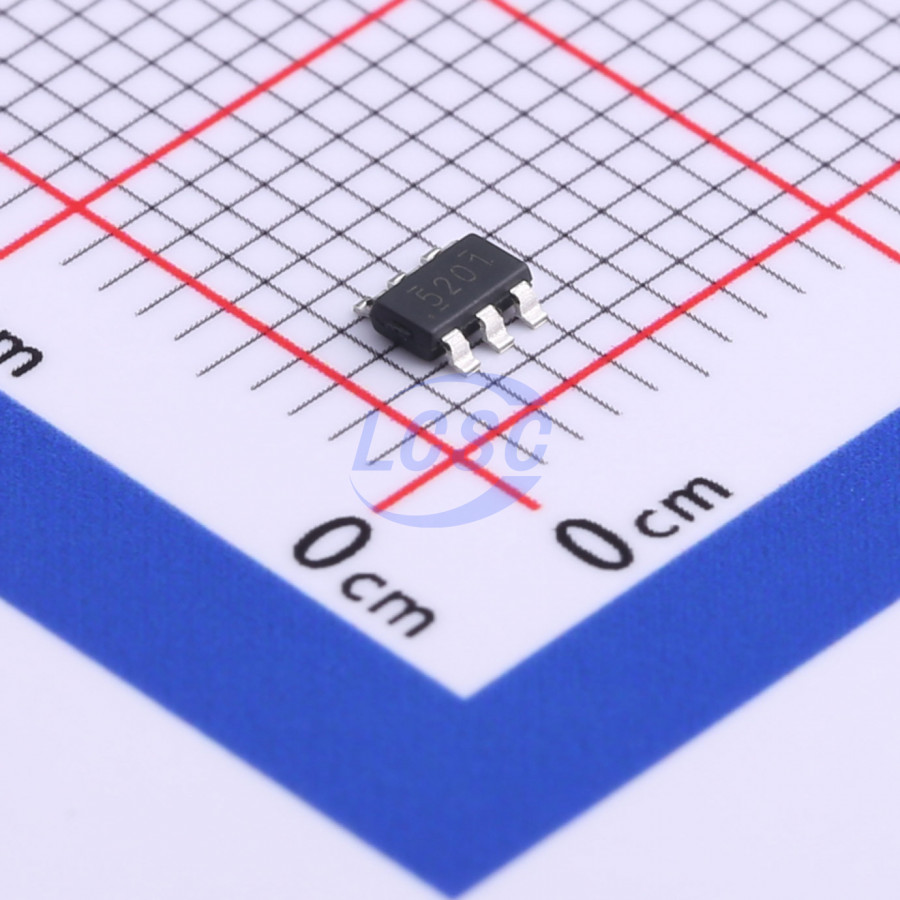

TPS565201DDCR

Buck Switching Regulator IC Adjustable 1 Output 5A TSOT-23-6

TSOT-23-6ROHS3 CompliantActive

4.5V to 17V Input, 5A Synchronous Buck Regulator

Manufacturer: TI
Manufacturer part #: TPS565201DDCR
Store part #: C327676
Package / case: TSOT-23-6
Category: Voltage Regulators - DC DC Switching Regulators
Packaging: Tape & Reel (TR)

Datasheet (PDF)

Every Order Guarantee

100% Authentic · 30-Day Return or Replacement · policy

10,216 in stock

#C327676

Stock & price checked 3 days ago

Quantity	Unit price	Pack price
1+	₹127.21	₹127.21
10+	₹103.72	₹1,037.20
30+	₹91.97	₹2,759.10
100+	₹80.24	₹8,024.00
500+	₹73.28	₹36,640.00
1,000+	₹69.80	₹69,800.00

Quantity (min 1)

1 × ₹127.21

₹127.21

excl. GST

₹150.11 incl. 18% GST

Need volume or a scheduled delivery? Request a quote

Dispatch in 15-18 working days
GST invoice with every order
Standard pack: 3,000 per reel

TPS565201DDCR

₹127.21 for 1 + GST

Need this with the rest of your board? Upload the BOM — we price every line.Upload BOM

Specifications

Operating Temperature: -40℃~+125℃@(TJ)
Frequency - Switching: 500kHz
Function: Step-down type
Number of Outputs: 1
Features: Cycle-by-cycle current limiting;Hiccup current limiting;Light load efficient mode
Output Type: Adjustable
Topology: Buck
Operating Voltage: 4.5V~17V
Switch tube (built-in/external): Built-in
Output Current: 5A
Output Voltage: 760mV~7V
Quiescent Current: 320uA

Packaging & compliance

RoHS: ROHS3 Compliant
Lifecycle: Active
Moisture sensitivity: MSL 1 (unlimited)
ECCN: EAR99
Packaging: Tape & Reel (TR)
Standard pack: 3,000 / Reel
Sold per: Piece
Minimum order: 1
Unit weight: 0.12 g

Overview

The TPS565201 is a simple, easy-to-use 5A synchronous buck converter. The device is optimized to minimize external components required for operation and achieve low standby current. This SMPS device employs D-CAP2™ control, which enables fast transient response without external compensation components. D-CAP2 also supports the use of low-ESR dedicated polymer capacitors and ceramic output capacitors. The TPS565201 is capable of operating in pulse-skipping mode to maintain high efficiency during light-load operation. The TPS565201 is available in a 6-pin 1.6mm×2.9mm SOT (DDC) package and operates over a junction temperature range of -40°C to 125°C.

Applications

Digital TV power supply
HD Blu-ray disc player
Network home terminal equipment
Digital set-top box (STB)
Security surveillance

Key features

5A maximum output current
Integrated 31mΩ and 16mΩ FETs
D-CAP2™ mode control with fast transient response
Input voltage range: 4.5V to 17V
Output voltage range: 0.76V to 7V
High-efficiency Eco-mode™ with pulse skipping at light load
500kHz switching frequency
Shutdown current ≤1μA
1% feedback voltage accuracy
Pre-biased output startup
Cycle-by-cycle current limiting
Hiccup mode overcurrent protection
Non-latching UVP, UVLO, and TSD protection
