TPS565208DDCR

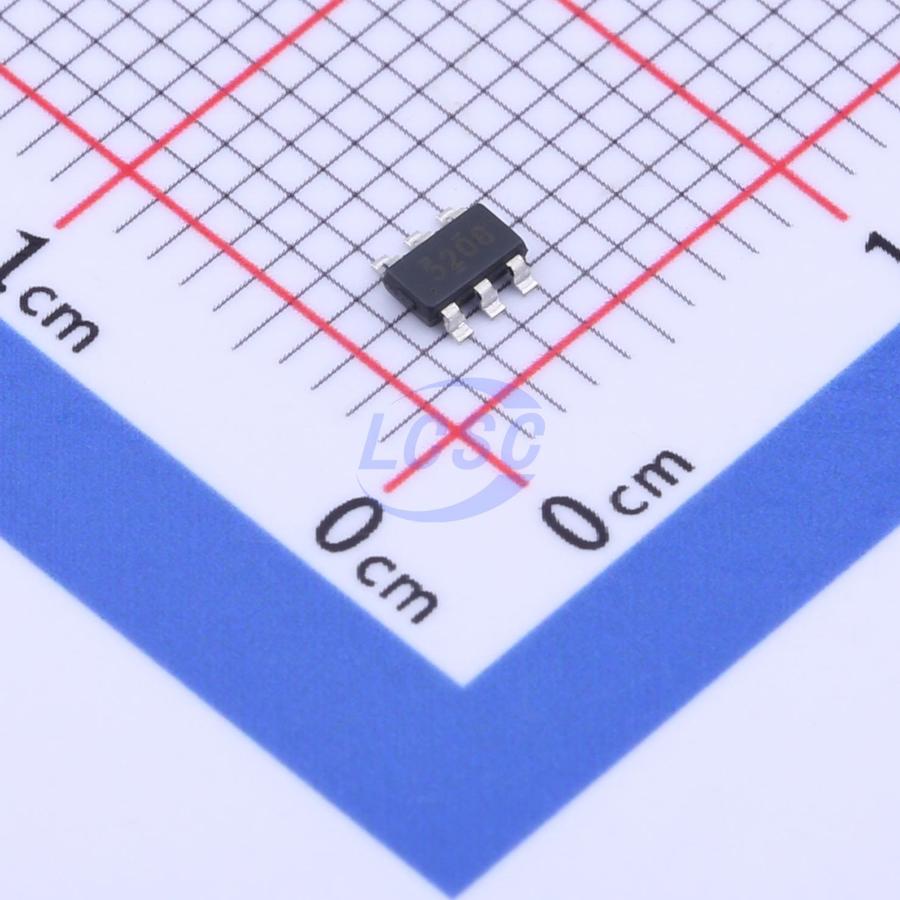

The TPS565208 is a simple, easy-to-use 5A synchronous buck converter in a SOT-23 package. The device is optimized to minimize external components required for operation and to achieve low standby current. This SMPS device employs D-CAP2™ mode control, which enables fast transient response without external compensation components. D-CAP2™ also supports the use of low ESR dedicated polymer capacitors and ceramic capacitors. The TPS565208 is available in a 6-pin 1.6mm×2.9mm SOT (DDC) package and operates over a junction temperature range of -40°C to 125°C.

Applications

• Digital TV power supplies
• HD Blu-ray disc players
• Network home terminal equipment
• Digital set-top boxes (STB)
• Security surveillance

Key features

• 5A maximum output current with integrated 31mΩ and 16mΩ FETs
• D-CAP2™ mode control with fast transient response
• Input voltage range: 4.5V to 17V
• Output voltage range: 0.76V to 7V
• Continuous conduction mode
• 500kHz switching frequency
• Low shutdown current less than 1μA
• 1% feedback voltage accuracy
• Pre-biased output startup
• Cycle-by-cycle current limiting
• Discontinuous mode overcurrent protection
• Non-latching undervoltage protection (UVP) and thermal shutdown (TSD)
• Fixed soft-start time: 1.0ms
• Create custom designs with TPS565208 using WEBENCH® Power Designer
