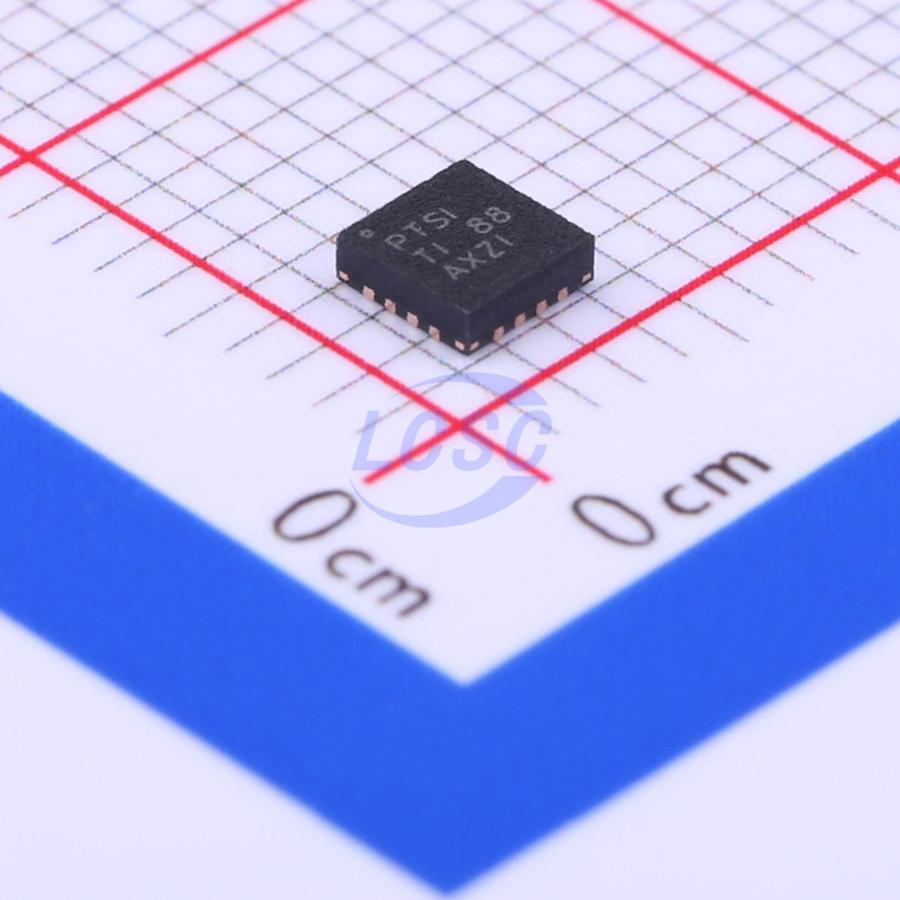

TPS62130RGTR
2.5MHz Step-down type Adjustable 900mV~6V 3A QFN-16-EP(3x3) Voltage Regulators - DC DC Switching Regulators RoHS
QFN-16-EP(3x3)ROHS3 CompliantActive
3V-17V 3A Step-Down Converter
- Manufacturer
- TI
- Manufacturer part #
- TPS62130RGTR
- Store part #
- C43590
- Package / case
- QFN-16-EP(3x3)
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
29,416 in stock
#C43590
Stock & price checked 8 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹174.70 | ₹174.70 |
| 10+ | ₹144.50 | ₹1,445.00 |
| 30+ | ₹127.76 | ₹3,832.80 |
| 100+ | ₹108.86 | ₹10,886.00 |
| 500+ | ₹100.60 | ₹50,300.00 |
| 1,000+ | ₹96.91 | ₹96,910.00 |
1 × ₹174.70
₹174.70
excl. GST
₹206.15 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
TPS62130RGTR
₹174.70 for 1 + GST
Specifications
- Operating Temperature
- -40℃~+85℃@(TA)
- Frequency - Switching
- 2.5MHz
- Function
- Step-down type
- Number of Outputs
- 1
- Features
- Adjustable soft-start;Output voltage tracking;Light load efficient mode;Operating status indication;Overcurrent Protection
- Output Type
- Adjustable
- Topology
- Buck
- Operating Voltage
- 3V~17V
- Switch tube (built-in/external)
- Built-in
- Output Voltage
- 900mV~6V
- Output Current
- 3A
- Quiescent Current
- 17uA
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- Moisture sensitivity
- MSL 2 (1 year)
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 0.15 g
Overview
The TPS6213X family is an easy to use synchronous step down DC-DC converter optimized for applications with high power density. A high switching frequency of typically 2.5MHz allows the use of small inductors and provides fast transient response as well as high output voltage accuracy by use of the DCSControl™ topology.
Applications
- Standard 12V Rail Supplies
- POL Supply from Single or Multiple Li-Ion Battery
- Solid-State Disk Drives
- Embedded Systems
- LDO replacement
- Mobile PCs, Tablet, Modems, Cameras
Key features
- DCS-Control™ Topology
- Input Voltage Range: 3 to 17V
- Up to 3A Output Current
- Adjustable Output Voltage from 0.9 to 6V
- Pin-Selectable Output Voltage (nominal, + 5%)
- Programmable Soft Start and Tracking
- Seamless Power Save Mode Transition
- Quiescent Current of 17μA (typ.)
- Selectable Operating Frequency
- Power Good Output
- 100% Duty Cycle Mode
- Short Circuit Protection
- Over Temperature Protection
- Available in a 3×3 mm, QFN-16 Package
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | TPS62130ARGTR#C337502TI · QFN-16-EP(3x3) | TI | QFN-16-EP(3x3) | 6,609 | ₹106.98 · 6,609 in stock | View |
 | TPS62130AQRGTRQ1#C2070623TI · VQFN-16-EP(3x3) | TI | VQFN-16-EP(3x3) | 1,565 | ₹221.88 · 1,565 in stock | View |
 | TPS62130ARGTT#C2070679TI · TQFN-16-EP(3x3) | TI | TQFN-16-EP(3x3) | 36 | ₹149.17 · 36 in stock | View |
| TPS62130RGTT#C2867776TI · VQFN-16-EP(3x3) | TI | VQFN-16-EP(3x3) | 1 | ₹287.71 · 1 in stock | View | |
 | TLV62130RGTR#C122479TI · QFN-16-EP(3x3) | TI | QFN-16-EP(3x3) | 29,648 | ₹124.08 · 29,648 in stock | View |
