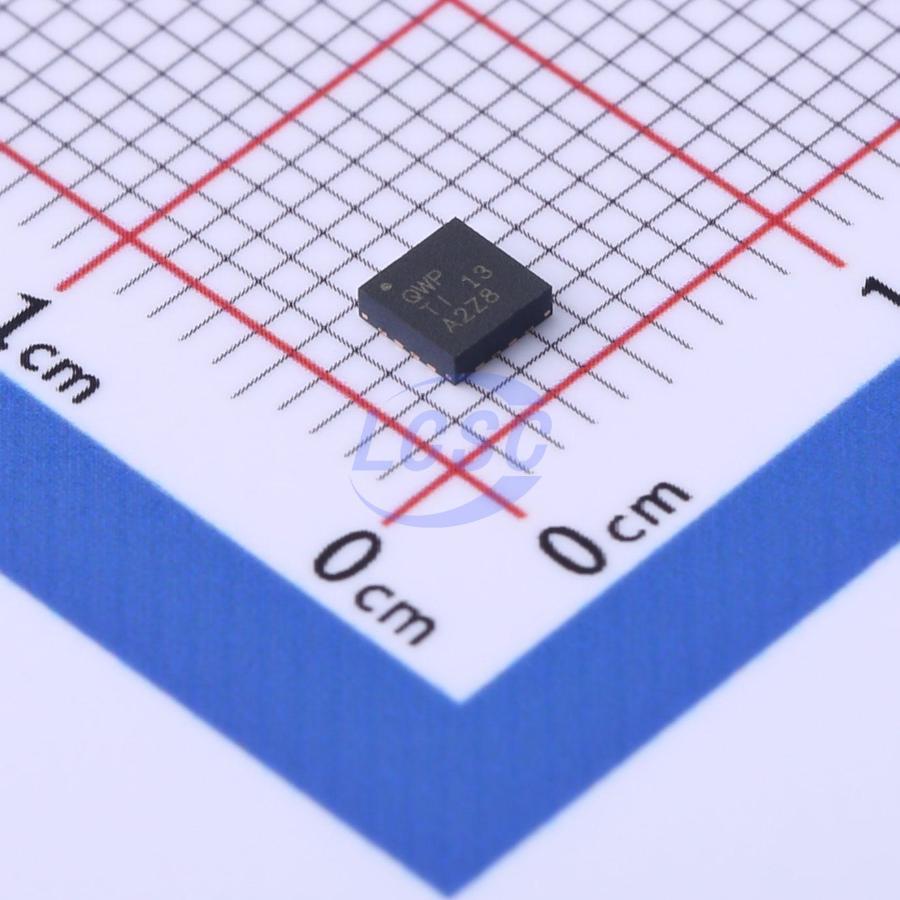

TPS62152RGTR

The TPS6215x series is an easy-to-use synchronous step-down DC/DC converter optimized for high power density applications. Devices in this series feature a typical switching frequency of up to 2.5MHz, enabling the use of small inductors, and leverage DCS-Control topology to deliver fast transient response and high output voltage accuracy. The series offers a wide input voltage operating range of 3V to 17V, making it suitable for systems powered by Li-ion or other batteries as well as 12V intermediate power rails. The output voltage ranges from 0.9V to 6V, supporting up to 1A continuous output current (in 100% duty cycle mode). A soft-start pin controls the output voltage startup ramp, allowing the device to operate either as a standalone supply or in a tracking configuration. Power sequencing can also be implemented via the enable (EN) pin and the open-drain power-good (PG) pin. In power-save mode, the device draws approximately 17μA quiescent current from VIN. The device automatically and seamlessly enters power-save mode at light loads, maintaining high efficiency across the full load range. In shutdown mode, the device is turned off with a supply current consumption of less than 2μA. The device is available in adjustable output voltage and fixed output voltage versions, offered in a 3mm×3mm 16-pin VQFN package (RGT).

Applications

• Standard 12V power rail
• POL power supply from single or multi-cell Li-Ion battery
• Solid-state drives (SSD)
• Embedded systems
• LDO replacement
• Mobile PCs, tablets, modems, cameras
• Servers, micro-servers
• Data terminals, electronic point-of-sale (ePOS)

Key features

• DCS-Control™ topology
• Input voltage range: 3 V to 17 V
• Output current up to 1A
• Adjustable output voltage range: 0.9 V to 6 V
• Pin-selectable output voltage (nominal, +5%)
• Programmable soft-start and tracking
• Seamless power save mode transition
• 17μA quiescent current (typical)
• Selectable switching frequency
• Power good output
• 100% duty cycle mode
• Short-circuit protection
• Thermal shutdown protection
• Pin-to-pin compatible with TPS62130 and TPS62140
• 3mm × 3mm VQFN-16 package
• Reduced design time with TPS82150 module
