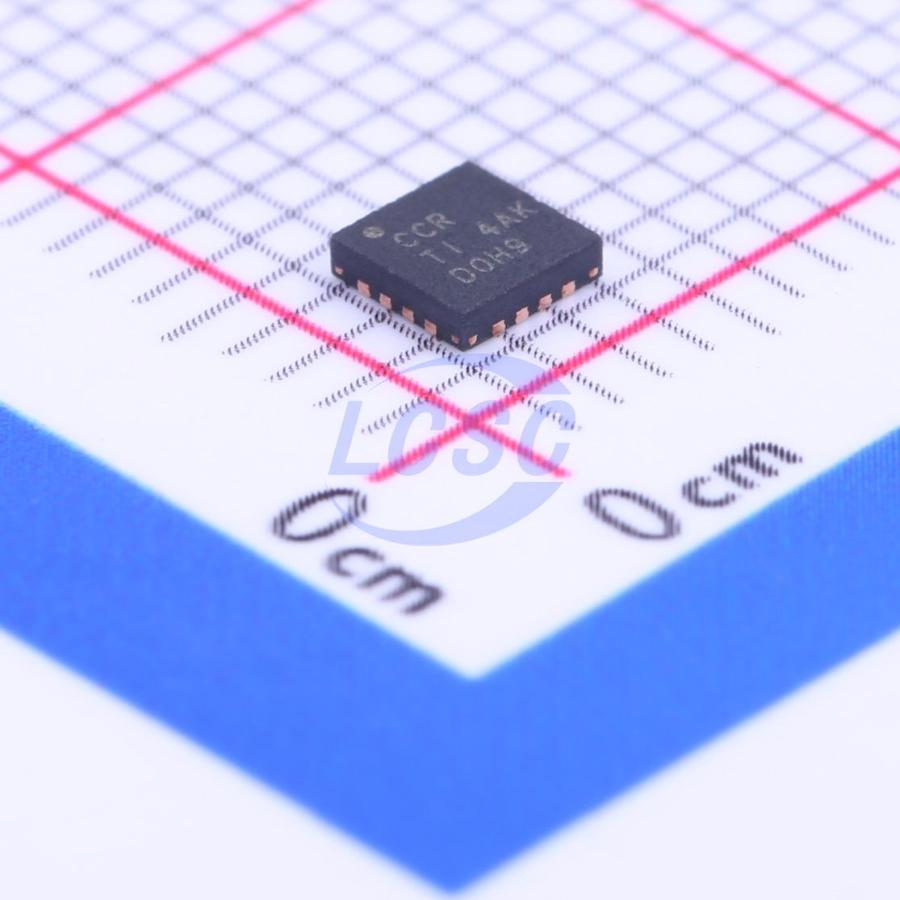

TPS65135RTER

The TPS65135 device is a high-efficiency split-rail power supply. The converter utilizes a single-inductor multiple-output (SIMO) topology, minimizing the number of external components required. The device employs a buck-boost topology to generate both positive and negative output voltages that can be above or below the input supply voltage. The SIMO topology delivers excellent line and load regulation — a critical characteristic for applications such as preventing input voltage variations caused by transmission phases in mobile communication systems from interfering with handset displays. The device can also serve as a general-purpose split-rail power supply when the output current mismatch between the two rails is less than 50%.

Applications

• AMOLED display power supply
• LCD power supply
• Split-rail power supply for op-amps, data converters, data interfaces, etc.

Key features

• Single-inductor, multiple-output topology
• Input voltage range: 2.5V to 5.5V
• 750mW output power at V₁ = 2.9V
• Positive output voltage up to 6V
• Negative output voltage down to -7V
• 1% output voltage accuracy
• Up to 50% output current mismatch allowed
• Excellent line regulation
• Advanced power save mode for light-load efficiency
• Low-noise operation
• Silent mode
• Short-circuit protection
• Thermal shutdown
• 3mm×3mm ultra-thin QFN package
