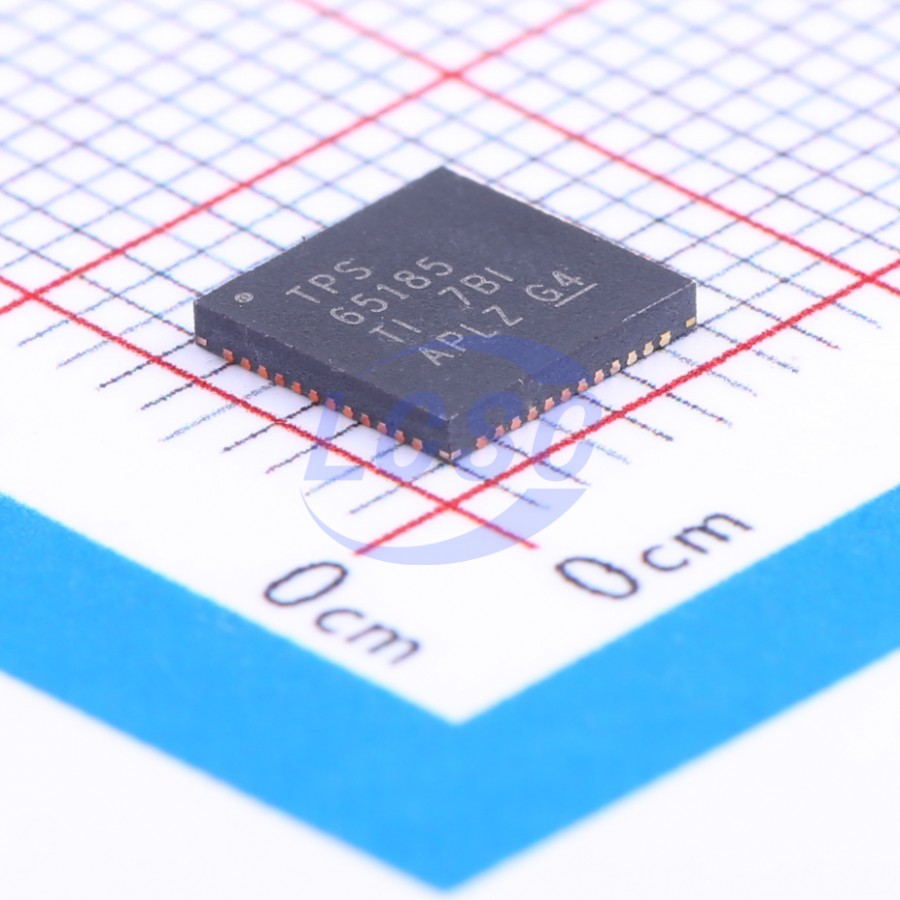

TPS65185RSLR

I2C VQFN-48-EP(6x6) Power Management - Specialized RoHS

VQFN-48-EP(6x6)ROHS3 CompliantActive

PMIC for E Ink Vizplex Enabled Electronic Paper Display

Manufacturer: TI
Manufacturer part #: TPS65185RSLR
Store part #: C139292
Package / case: VQFN-48-EP(6x6)
Category: Power Management - Specialized
Packaging: Tape & Reel (TR)

Datasheet (PDF)

Every Order Guarantee

100% Authentic · 30-Day Return or Replacement · policy

1,591 in stock

#C139292

Stock & price checked 6 days ago

Quantity	Unit price	Pack price
1+	₹512.68	₹512.68
10+	₹461.07	₹4,610.70
30+	₹434.72	₹13,041.60
100+	₹399.52	₹39,952.00
500+	₹386.78	₹1,93,390.00
1,000+	₹381.38	₹3,81,380.00

Quantity (min 1)

1 × ₹512.68

₹512.68

excl. GST

₹604.96 incl. 18% GST

Need volume or a scheduled delivery? Request a quote

Dispatch in 15-18 working days
GST invoice with every order
Standard pack: 2,500 per reel

TPS65185RSLR

₹512.68 for 1 + GST

Need this with the rest of your board? Upload the BOM — we price every line.Upload BOM

Specifications

Features: Output voltage tracking;Output discharge;Power-on timing control;Operating status indication
Operating Temperature: -10℃~+85℃
Interface: I2C
Voltage - Supply: 3V~6V
Output Voltage: 16V;15V;22V;20V;0V~5.11V

Packaging & compliance

RoHS: ROHS3 Compliant
Lifecycle: Active
Moisture sensitivity: MSL 3 (168 hours)
ECCN: EAR99
Packaging: Tape & Reel (TR)
Standard pack: 2,500 / Reel
Sold per: Piece
Minimum order: 1
Unit weight: 0.242 g

Overview

The TPS65185x device is a single-chip power supply designed to for E Ink Vizplex displays used in portable e-reader applications, and the device supports panel sizes up to 9.7 inches and greater. Two high efficiency DC-DC boost converters generate ±16-V rails that are boosted to 22 V and –20 V by two change pumps to provide the gate driver supply for the Vizplex panel. Two tracking LDOs create the ±15-V source driver supplies that support up to 120/200 mA (TPS65185/TPS651851) of output current. All rails are adjustable through the I²C interface to accommodate specific panel requirements. Accurate back-plane biasing is provided by a linear amplifier that can be adjusted from 0 V to –5.11 V with 9-bit control through the serial interface; it can source or sink current depending on panel condition.

Applications

Power Supply for Active Matrix E Ink Vizplex Panels
Electronic Paper Display (EPD) Power Supplies
E-Book Readers
Dual-Display Phone and Tablets
Application Processors With Integrated or Software Timing Controller (OMAP)

Key features

Single Chip Power-Management Solution for E Ink Vizplex Electronic Paper (E-Paper) Displays
Generates Positive and Negative Gates, and Source Driver Voltages and Back-Plane Bias From a Single, Low-Voltage Input Supply
Supports 9.7-Inch and Larger Panel Sizes
3-V to 6-V Input Voltage Range
Boost Converter for Positive Rail Base
Inverting Buck-Boost Converter for Negative Rail Base
Two Adjustable LDOs for Source Driver Supply
TPS65185 LDO1: 15 V, 120 mA (VPOS)
TPS65185 LDO2: –15 V, 120 mA (VNEG)
TPS651851 LDO1: 15 V, 200 mA at VIN ≥ 3.6 V (VPOS)
TPS651851 LDO2: –15 V, 200 mA at VIN ≥ 3.6 V (VNEG)
Accurate Output Voltage Tracking
VPOS - VNEG = ±50 mV
Two Charge Pumps for Gate Driver Supply
CP1: 22 V, 15 mA (VDDH)
CP2: –20 V, 15 mA, (VEE)
Adjustable VCOM Driver for Accurate Panel Backplane Biasing
0 V to –5.11 V
± 1.5% accuracy (±10 mV)
9-Bit Control (10-mV Nominal Step Size)
Active Discharge on All Rails
Integrated 10-Ω, 3.3-V Power Switch for Disabling System Power Rail to E-Ink Panel
