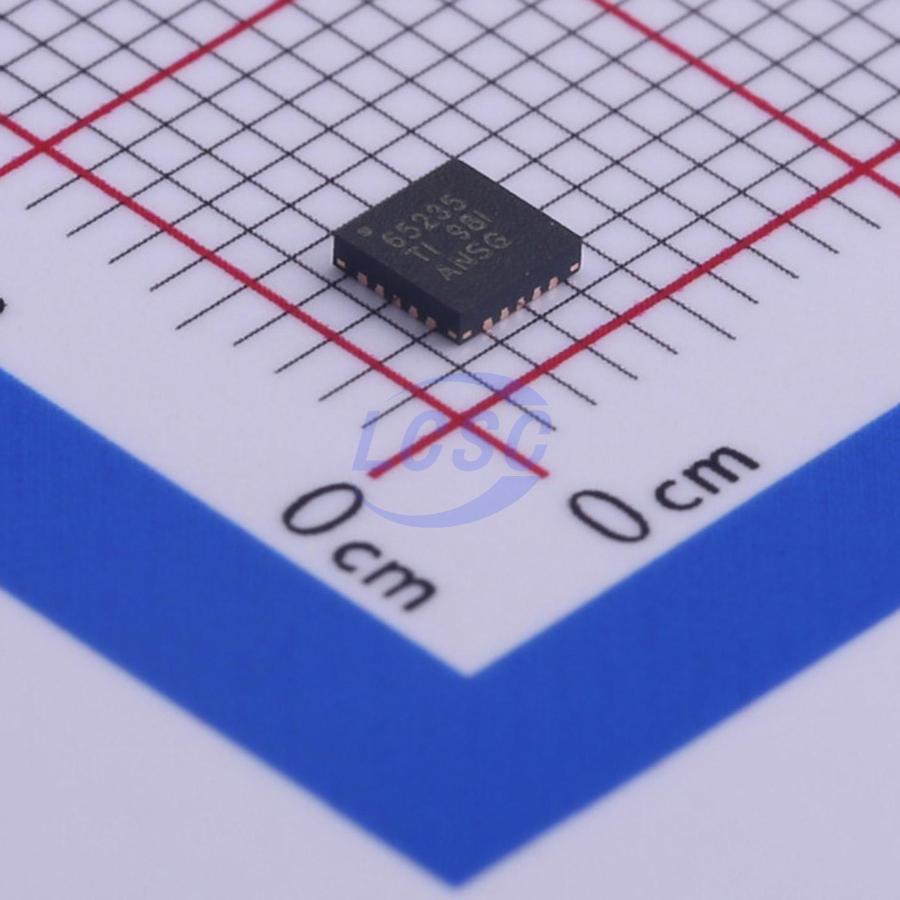

TPS65235RUKR

I2C 1A WQFN-20-EP(3x3) Special Purpose Regulators RoHS

WQFN-20-EP(3x3)ROHS3 CompliantActive

Manufacturer: TI
Manufacturer part #: TPS65235RUKR
Store part #: C456275
Package / case: WQFN-20-EP(3x3)
Category: Special Purpose Regulators
Packaging: Tape & Reel (TR)

Datasheet (PDF)

Every Order Guarantee

100% Authentic · 30-Day Return or Replacement · policy

2,547 in stock

#C456275

Stock & price checked 6 days ago

Quantity	Unit price	Pack price
1+	₹76.32	₹76.32
10+	₹61.80	₹618.00
30+	₹54.64	₹1,639.20
100+	₹47.71	₹4,771.00
500+	₹39.69	₹19,845.00
1,000+	₹37.52	₹37,520.00

Quantity (min 1)

1 × ₹76.32

₹76.32

excl. GST

₹90.06 incl. 18% GST

Need volume or a scheduled delivery? Request a quote

Dispatch in 15-18 working days
GST invoice with every order
Standard pack: 3,000 per reel

TPS65235RUKR

₹76.32 for 1 + GST

Need this with the rest of your board? Upload the BOM — we price every line.Upload BOM

Specifications

Features: Adjustable current limiting;Cycle-by-cycle current limiting;Hiccup current limiting;Adjustable soft-start;Overcurrent Protection;Operating status indication
Interface: I2C
Output Voltage: 11V~20V
Output Current: 1A
Input Voltage: 4.5V~20V
Operating Temperature: -40℃~+125℃

Packaging & compliance

RoHS: ROHS3 Compliant
Lifecycle: Active
Moisture sensitivity: MSL 2 (1 year)
ECCN: EAR99
Packaging: Tape & Reel (TR)
Standard pack: 3,000 / Reel
Sold per: Piece
Minimum order: 1
Unit weight: 0.11 g

Overview

Designed for analog and digital satellite receivers, the TPS65235 is a monolithic voltage regulator with I²C interface; specifically to provide the 13-V to 18-V power supply and the 22-kHz tone signal to the LNB down converter in the antenna dish or to the multiswitch box. It offers a complete solution with minimum component count, low power dissipation together with simple design and I²C standard interface. TPS65235 features high power efficiency. The boost converter integrates a 140-mΩ power MOSFET running at 1 MHz or 500 kHz selectable switching frequency. Drop out voltage at the linear regulator is 0.8 V to minimize power loss. TPS65235 provides multiple ways to generate the 22 kHz signal. Integrated linear regulator with push-pull output stage generates 22-kHz tone signal superimposed at the output even at zero loading. Current limit of linear regulator can be programmed by external resistor with ±10% accuracy. Full range of diagnostic read by I²C is available for system monitoring. TPS65235 supports advanced DiSEqC 2.x standard with 22-kHz tone detection circuit and output interface.

Applications

Set Top Box Satellite Receiver
TV Satellite Receiver
PC card Satellite Receiver
Satellite TV

Key features

Complete Integrate Solution for LNB and I²C Interface
DiSEqC 2.x, and DiSEqC 1.x Compatible
Supports 5-V, 12-V and 15-V Power Rail
Up to 1000 mA Accurate Output Current Limit Adjustable by External Resistor
Boost Switch Peak Current Limit Proportional to LDO Current Limit
Boost Converter with 140-mΩ Low Rds(on) Internal Power Switch
Boost Switching Frequency 1-MHz or 500-kHz Selectable
Dedicated Enable Pin for Non-I²C Application
Low Drop Output LDO With Push-pull Output Stage for VLNB Output
Built-in Accurate 22-kHz Tone Generator and External Tone Input Support
Supports Both External 44-kHz and 22-kHz Tone Input
Adjustable Soft-start and 13-V to 18-V Voltage Transition Time
650 mV to 750 mV, 22-kHz Tone Amplitude Selection
I²C Registers Accessible with EN Low
Short Circuit Dynamic Protection
Diagnostics for Output Voltage Level, DiSEqC Tone Input and Output, Current Level, and Cable Connection
Thermal Protection Available
20-Lead WQFN 3-mm x 3-mm (RUK) Package
