TECH PUBLICDatasheet (PDF)

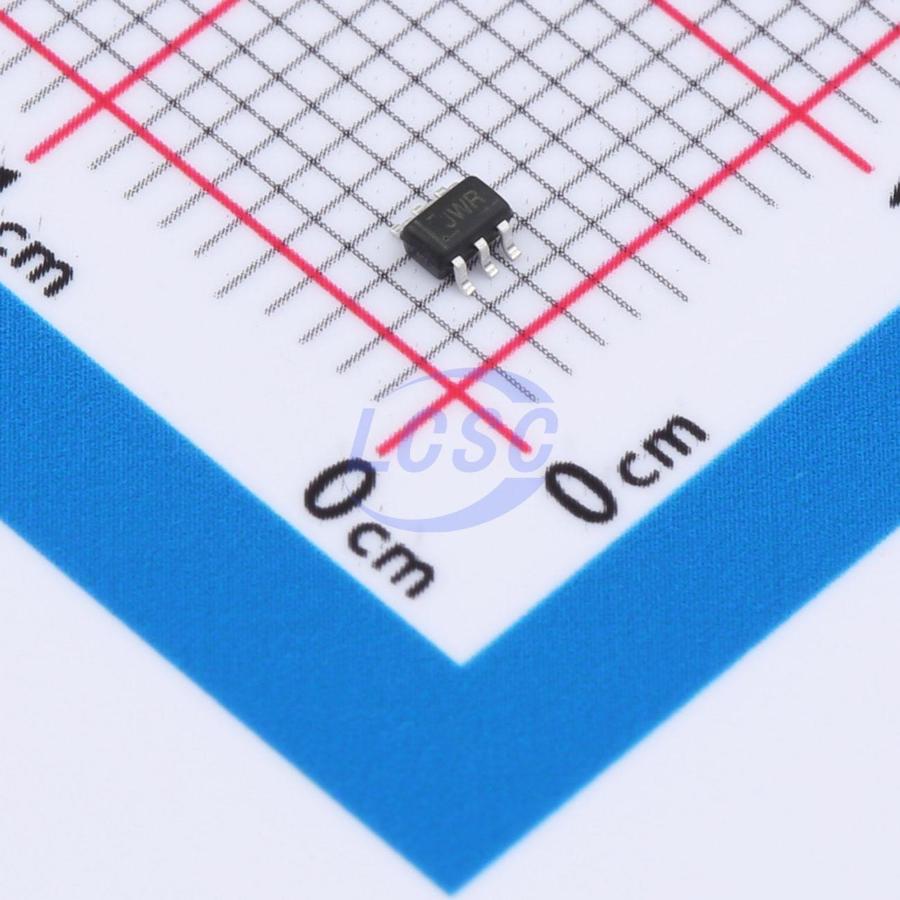

TPTS5A4624DCKR
1 1Ω 1.65V~5.5V SOT-363 Analog Switches, Multiplexers, Demultiplexers
SOT-363RoHSActive
SINGLE-POLE,DOUBLE-THROW ANALOG SWITCH
- Manufacturer
- TECH PUBLIC
- Manufacturer part #
- TPTS5A4624DCKR
- Store part #
- C42449042
- Package / case
- SOT-363
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
470 in stock
#C42449042
Stock & price checked 3 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 5+ | ₹26.24 | ₹131.20 |
| 50+ | ₹20.80 | ₹1,040.00 |
| 150+ | ₹18.48 | ₹2,772.00 |
| 500+ | ₹15.57 | ₹7,785.00 |
| 3,000+ | ₹14.29 | ₹42,870.00 |
| 6,000+ | ₹13.51 | ₹81,060.00 |
5 × ₹26.24
₹131.20
excl. GST
₹154.82 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
TPTS5A4624DCKR
₹131.20 for 5 + GST
Specifications
- Features
- Power-off isolation
- Operating Temperature
- -40℃~+85℃
- Number of Channels
- 1
- Ron
- 1Ω
- Voltage - Supply
- 1.65V~5.5V
- Con
- 7pF
Packaging & compliance
- RoHS
- RoHS
- Lifecycle
- Active
- Moisture sensitivity
- MSL 1 (unlimited)
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 5 (multiples of 5)
- Unit weight
- 0.156 g
Overview
The is a low voltage single-pole, double-throw (SPDT) analog switch intending for use in chopping, modem, signal gating, and signal multiplexing for analog-to-digital and digital -to-analog conversion systems.
Applications
- Cell phones and TWS headset
- Audio, Video, UART, USB2.0 Signal and Supply Routing
Key features
- Low On-resistance, R0n = 1.0Ω when A = 5V
- 1.8V Logic Compatible Control Pin
- A Overrides VCC to Achieve True Isolation Even When Supply Is Dead
- High Off-Isolation: -100dB @ 100KHz
- Low Channel-to-Channel Crosstalk: -97dB @ 100KHz
- High Bandwidth (-3dB @ 100MHz)
- Suitable For USB2.0 High-Speed Routing
- Low Quiescent Current (< 2uA)
- With Very Wide Supply Range (1.65V ~ 5.5V)
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | TPTS5A9411DCKR#C42449043TECH PUBLIC · SOT-363 | TECH PUBLIC | SOT-363 | 735 | ₹22.98 · 735 in stock | View |
 | FSA3157P6X#C41431789TECH PUBLIC · SOT-363 | TECH PUBLIC | SOT-363 | 11,410 | ₹8.16 · 11,410 in stock | View |
 | ET3157#C41431790TECH PUBLIC · SOT-363 | TECH PUBLIC | SOT-363 | 2,910 | ₹6.65 · 2,910 in stock | View |
 | NC7SB3157P6X#C41431791TECH PUBLIC · SOT-363 | TECH PUBLIC | SOT-363 | 12,600 | ₹7.06 · 12,600 in stock | View |
 | SN74LVC1G3157DCKR#C41431793TECH PUBLIC · SOT-363 | TECH PUBLIC | SOT-363 | 3,930 | ₹6.87 · 3,930 in stock | View |
