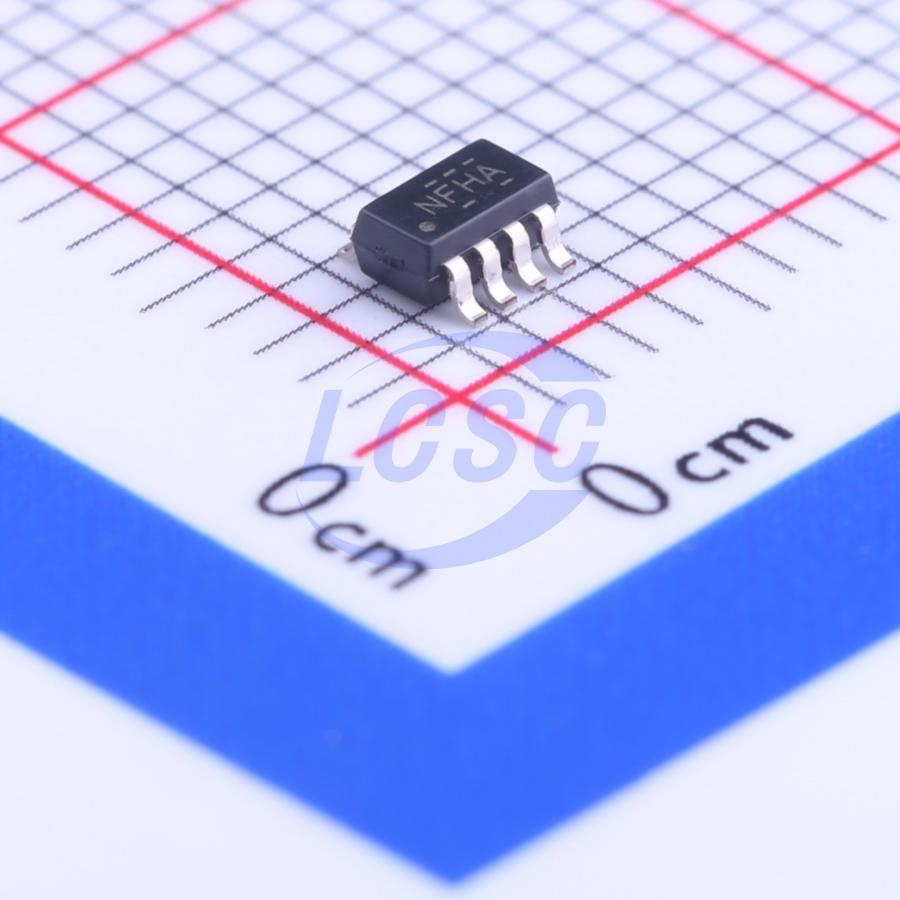

TS12A12511DCNR

The TS12A12511 is a bidirectional, single-channel, single-pole double-throw (SPDT) analog switch that can pass signals with swings of 0 to 12 V or -6 V to 6 V. This switch conducts equally well in both directions when it is on. The device also offers a low ON-state resistance of 5 Ω (typical), which is matched to within 1 Ω between channels. The maximum current consumption is < 1 μA and -3 dB bandwidth is > 93 MHz. The TS12A12511 exhibits break-before-make switching action, preventing momentary shorting when switching channels. This device is available packaged in an 8-lead VSSOP, 8-lead SOT-23, and a 8-pin WSON.

Applications

• Automatic Test Equipment
• Power Routing
• Communication Systems
• Data Acquisition Systems
• Sample-and-Hold Systems
• Relay Replacement
• Battery-Powered Systems

Key features

• ±2.7 V to ±6-V Dual Supply 2.7-V to 12-V Single Supply
• 5-Ω (Typical) ON-State Resistance
• 1.6-Ω (Typical) ON-State Resistance Flatness
• 3.3-V, 5-V Compatible Digital Control Inputs
• Rail-to-Rail Analog Signal Handling
• Fast tON, tOFF Times Supports Both Digital and Analog Signal Applications
• Tiny 8-Lead SOT-23, 8-Lead MSOP, and QFN-8 Packages
• Latch-Up Performance Exceeds 100 mA Per JESD 78, Class II
• ESD Performance Tested per JESD 22 ±2000-V Human Body Model (A114-B, Class II) ±1000-V Charged-Device Model (C101)
