STDatasheet (PDF)

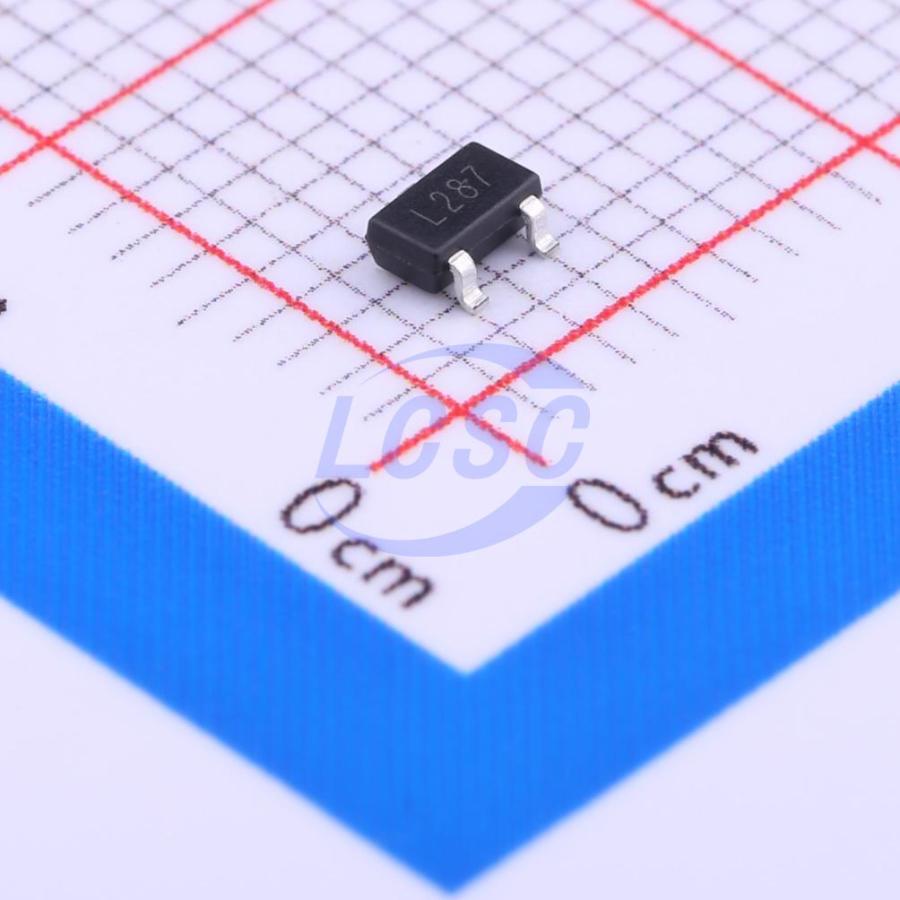

TS2431BILT
2.5V~24V ±0.5% 2.5V~24V 100mA Adjustable SOT-23-3L Voltage Reference RoHS
SOT-23-3LROHS3 CompliantActive
Adjustable shunt voltage reference
- Manufacturer
- ST
- Manufacturer part #
- TS2431BILT
- Store part #
- C283636
- Package / case
- SOT-23-3L
- Category
- Voltage Reference
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
2,635 in stock
#C283636
Stock & price checked 4 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 5+ | ₹21.84 | ₹109.20 |
| 50+ | ₹19.08 | ₹954.00 |
| 150+ | ₹17.89 | ₹2,683.50 |
| 500+ | ₹16.41 | ₹8,205.00 |
| 3,000+ | ₹15.76 | ₹47,280.00 |
| 6,000+ | ₹15.36 | ₹92,160.00 |
5 × ₹21.84
₹109.20
excl. GST
₹128.86 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
TS2431BILT
₹109.20 for 5 + GST
Specifications
- Output Voltage
- 2.5V~24V
- Tolerance
- ±0.5%
- Voltage - Supply
- 2.5V~24V
- Minimum Cathode Current for Regulation
- 1mA
- Reference Type
- Parallel
- Output Current
- 100mA
- Operating Temperature
- -40℃~+105℃
- Output Type
- Adjustable
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- Moisture sensitivity
- MSL 1 (unlimited)
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 5 (multiples of 5)
- Unit weight
- 0.036 g
Overview
The TS2431 is an adjustable shunt voltage reference with guaranteed temperature stability over the entire temperature range of operations from - 40 to + 105 °C. The output voltage may be set to any value between 2.5 and 24 V with an external resistor bridge. Available in an SOT23 - 3L surface mount package, the device can be implemented for those applications where spacesaving is of the utmost importance.
Applications
- Computers
- Instrumentation
- Battery chargers
- Switch mode power supplies
- Battery-operated equipment
Key features
- Adjustable output voltage: 2.5 to 24 V
- Precision selection at 25 °C: ±2%, ±1% and ± 0.5%
- Sink current capability: 1 to 100 mA
- Industrial temperature range: - 40 to + 105 °C
- Performance compatible with industry standard TL431
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | TP431C250S3-1#C49190772TECH PUBLIC · SOT-23 | TECH PUBLIC | SOT-23 | 2,995 | ₹12.87 · 2,995 in stock | View |
