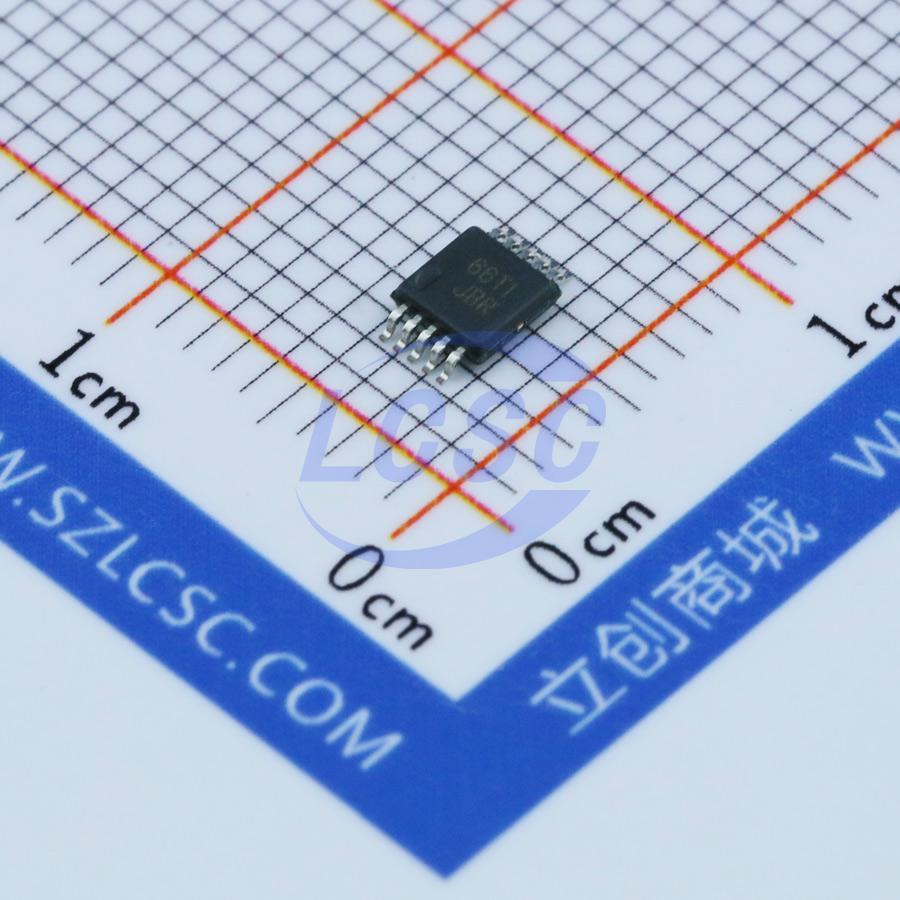

TS5A23157DGSR
10Ω 2 1.65V~5.5V MSOP-10 Analog Switches, Multiplexers, Demultiplexers RoHS
MSOP-10ROHS3 CompliantActive
Dual 10-Q SPDT Analog Switch
- Manufacturer
- TI
- Manufacturer part #
- TS5A23157DGSR
- Store part #
- C11133
- Package / case
- MSOP-10
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
707 in stock
#C11133
Stock & price checked 4 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹59.18 | ₹59.18 |
| 10+ | ₹47.43 | ₹474.30 |
| 30+ | ₹42.43 | ₹1,272.90 |
| 100+ | ₹36.12 | ₹3,612.00 |
| 500+ | ₹33.29 | ₹16,645.00 |
| 1,000+ | ₹31.55 | ₹31,550.00 |
1 × ₹59.18
₹59.18
excl. GST
₹69.83 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 2,500 per reel
TS5A23157DGSR
₹59.18 for 1 + GST
Specifications
- Features
- Bidirectional analog channel;Glitch-free switching
- Operating Temperature
- -40℃~+85℃
- Ron
- 10Ω
- Number of Channels
- 2
- Voltage - Supply
- 1.65V~5.5V
- Con
- 17.5pF
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- Moisture sensitivity
- MSL 1 (unlimited)
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 2,500 / Reel
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 0.03 g
Overview
The TS5A23157 device is a dual single-pole doublethrow (SPDT) analog switch designed to operate from 1.65 V to 5.5 V. This device can handle both digital and analog signals. Signals up to 5.5 V (peak) can be transmitted in either direction.
Applications
- Sample-and-Hold Circuits
- Battery-Powered Equipment
- Audio and Video Signal Routing
- Communication Circuits
Key features
- Low ON-State Resistance (10 Ω)
- Control Inputs are 5-V Tolerant
- Specified Break-Before-Make Switching
- Low Charge Injection
- Excellent ON-Resistance Matching
- Low Total Harmonic Distortion
- 1.8-V to 5.5-V Single-Supply Operation
- Latch-Up Performance Exceeds 100 mA Per JESD 78, Class II
- ESD Performance Tested Per JESD 22
- 2000-V Human-Body Model (A114-B, Class II)
- 1000-V Charged-Device Model (C101)
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | U7SB3157G-SM2-R#C2934665UTC · MSOP-10 | UTC | MSOP-10 | 3,970 | ₹31.14 · 3,970 in stock | View |
 | PI5A23157UEX#C19950417DIODES · MSOP-10 | DIODES | MSOP-10 | 5 | ₹97.85 · 5 in stock | View |
 | TS5A23157TDGSRQ1#C130086TI · VSSOP-10-0.5mm | TI | VSSOP-10-0.5mm | 933 | ₹92.62 · 933 in stock | View |
 | TS5A23157QDGSRQ1#C523778TI · VSSOP-10-0.5mm | TI | VSSOP-10-0.5mm | On request | ₹115.82 · 0 in stock | View |
 | FSUSB42MUX-MS#C50385348MSKSEMI · MSOP-10 | MSKSEMI | MSOP-10 | 740 | ₹39.90 · 740 in stock | View |
