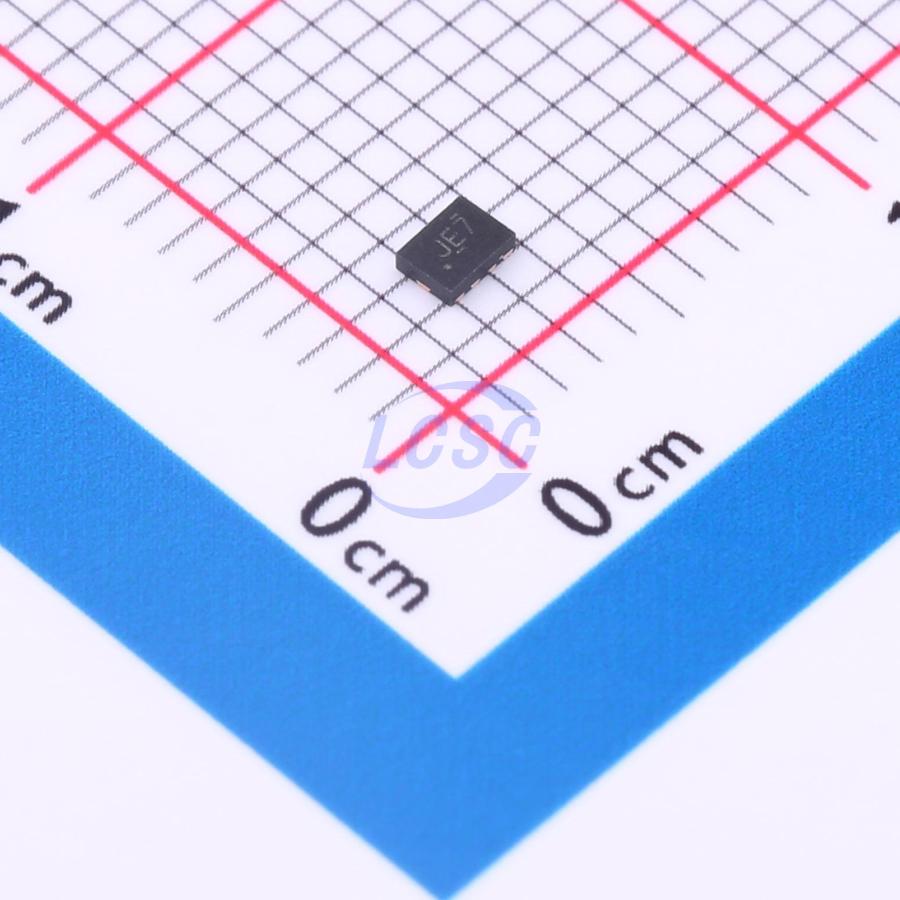

TS5A23159RSER

2 700mΩ 1.65V~5.5V UQFN-10-EP(1.5x2) Analog Switches, Multiplexers, Demultiplexers RoHS

UQFN-10-EP(1.5x2)ROHS CompliantActive

2-Channel SPDT Analog Switch 2-Channel 2:1 Multiplexer/Demultiplexer

Manufacturer: TI
Manufacturer part #: TS5A23159RSER
Store part #: C138710
Package / case: UQFN-10-EP(1.5x2)
Category: Analog Switches, Multiplexers, Demultiplexers
Packaging: Tape & Reel (TR)

Datasheet (PDF)

Every Order Guarantee

100% Authentic · 30-Day Return or Replacement · policy

2,530 in stock

#C138710

Stock & price checked 10 days ago

Quantity	Unit price	Pack price
1+	₹123.34	₹123.34
10+	₹99.85	₹998.50
30+	₹88.10	₹2,643.00
100+	₹76.36	₹7,636.00
500+	₹69.39	₹34,695.00
1,000+	₹65.91	₹65,910.00

Quantity (min 1)

1 × ₹123.34

₹123.34

excl. GST

₹145.54 incl. 18% GST

Need volume or a scheduled delivery? Request a quote

Dispatch in 15-18 working days
GST invoice with every order
Standard pack: 3,000 per reel

TS5A23159RSER

₹123.34 for 1 + GST

Need this with the rest of your board? Upload the BOM — we price every line.Upload BOM

Specifications

Features: Power-off isolation;Glitch-free switching
Operating Temperature: -40℃~+85℃
Number of Channels: 2
Ron: 700mΩ
Voltage - Supply: 1.65V~5.5V
Con: 55pF

Packaging & compliance

RoHS: ROHS Compliant
Lifecycle: Active
Moisture sensitivity: MSL 1 (unlimited)
ECCN: EAR99
Packaging: Tape & Reel (TR)
Standard pack: 3,000 / Reel
Sold per: Piece
Minimum order: 1
Unit weight: 0.03 g

Overview

The TS5A23159 is a bidirectional 2-channel single-pole double-throw (SPDT) switch that is designed to operate from 1.65 V to 5.5 V. The device offers low ON-state resistance and excellent ON-state resistance matching with the break-before-make feature which prevents signal distortion during the transferring of a signal from one channel to another. The device has an excellent total harmonic distortion (THD) performance and consumes very low power. These features make this device suitable for a wide variety of portable applications including cell phones, audio devices, and instrumentation.

Applications

Cell Phones
PDAs
Portable Instrumentation
Audio and Video Signal Routing
Low-Voltage Data-Acquisition Systems
Communication Circuits
Modems
Hard Drives
Computer Peripherals
Wireless Terminals and Peripherals

Key features

Isolation in Power-Down Mode, VCC = 0
Specified Break-Before-Make Switching
Low ON-State Resistance (1 Ω)
Control Inputs are 5.5-V Tolerant
Low Charge Injection
Excellent ON-State Resistance Matching
Low Total Harmonic Distortion (THD)
Supports Analog and Digital Signals
1.65-V to 5.5-V Single-Supply Operation
Latch-Up Performance Exceeds 100 mA Per JESD 78, Class II
ESD Performance Tested Per JESD 22: 2000-V Human Body Model (A114-B, Class II), 1000-V Charged-Device Model (C101)
