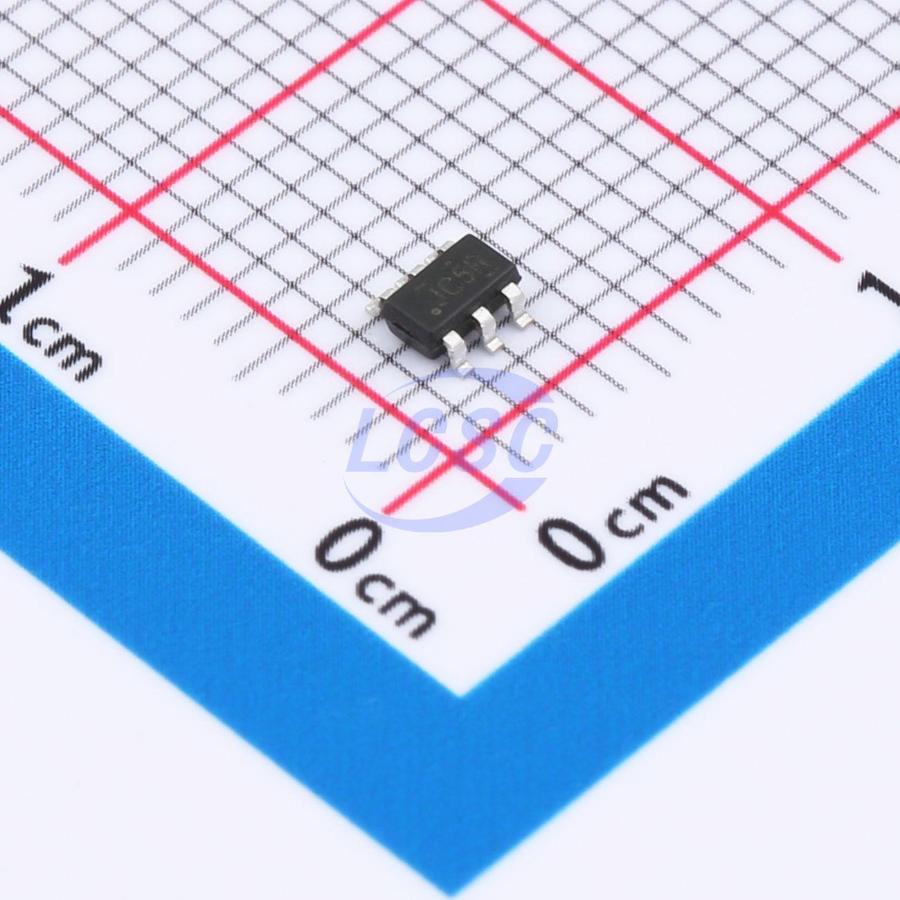

TS5A3157DBVR-TP
IC SWITCH 3.8Ω@5.5V SOT-23-6
SOT-23-6RoHSActive
SINGLE-POLE,DOUBLE-THROW ANALOG SWITCH
- Manufacturer
- TECH PUBLIC
- Manufacturer part #
- TS5A3157DBVR-TP
- Store part #
- C42411029
- Package / case
- SOT-23-6
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
3,080 in stock
#C42411029
Stock & price checked 7 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 10+ | ₹8.33 | ₹83.30 |
| 100+ | ₹6.62 | ₹662.00 |
| 300+ | ₹5.76 | ₹1,728.00 |
| 3,000+ | ₹5.11 | ₹15,330.00 |
| 6,000+ | ₹4.59 | ₹27,540.00 |
| 9,000+ | ₹4.34 | ₹39,060.00 |
10 × ₹8.33
₹83.30
excl. GST
₹98.29 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
TS5A3157DBVR-TP
₹83.30 for 10 + GST
Specifications
- Features
- Power-off isolation
- Operating Temperature
- -40℃~+85℃
- Number of Channels
- 1
- Voltage - Supply
- 1.5V~5.5V
- Ron
- 3.8Ω@5.5V
- Con
- 7pF
Packaging & compliance
- RoHS
- RoHS
- Lifecycle
- Active
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 10 (multiples of 10)
- Unit weight
- 0.038 g
Overview
Is a low-voltage single-pole double-throw (SPDT) analog switch for signal multiplexing in chopper, modem, signal gating, and analog-to-digital and digital-to-analog conversion systems.
Applications
- Mobile phones and TWS earphones
- Audio, video, UART, USB2.0 signal and power routing
Key features
- Low on-resistance, Ron = 100
- 1.8V logic-compatible control pin
- A rail covers VCC, enabling true isolation even when power is off
- High off-state isolation: -100dB @ 100KHz
- Low channel-to-channel crosstalk: -97dB @ 100KHz
- High bandwidth (-3dB @ 700MHz) for USB2.0 high-speed routing
- Low quiescent current (<2uA), wide supply range (1.5V ~ 5.5V)
