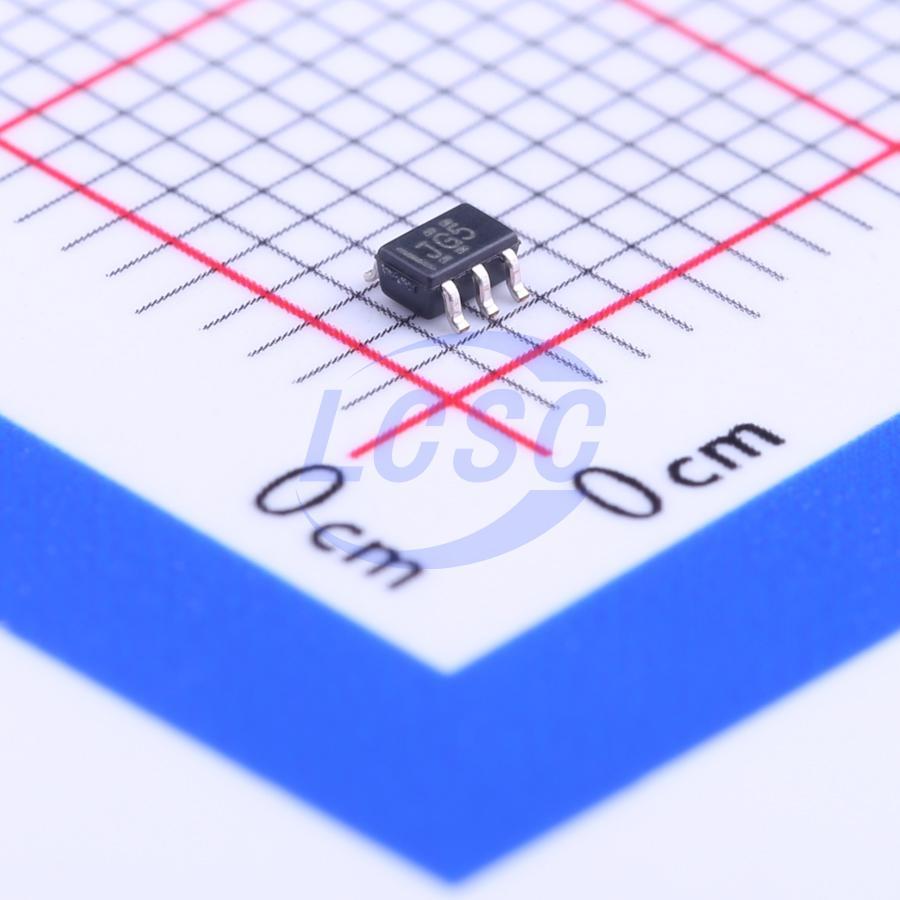

TS5A3167DCKR
900mΩ 1 1.65V~5.5V SC-70-5 Analog Switches, Multiplexers, Demultiplexers RoHS
SC-70-5ROHS3 CompliantActive
1-channel 1:1 SPST Analog Switch
- Manufacturer
- TI
- Manufacturer part #
- TS5A3167DCKR
- Store part #
- C130087
- Package / case
- SC-70-5
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
11,555 in stock
#C130087
Stock & price checked 3 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 5+ | ₹49.82 | ₹249.10 |
| 50+ | ₹39.95 | ₹1,997.50 |
| 150+ | ₹35.72 | ₹5,358.00 |
| 500+ | ₹30.44 | ₹15,220.00 |
| 3,000+ | ₹28.10 | ₹84,300.00 |
| 6,000+ | ₹26.68 | ₹1,60,080.00 |
5 × ₹49.82
₹249.10
excl. GST
₹293.94 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
TS5A3167DCKR
₹249.10 for 5 + GST
Specifications
- Features
- Bidirectional analog channel;Power-off isolation
- Operating Temperature
- -40℃~+85℃
- Ron
- 900mΩ
- Number of Channels
- 1
- Voltage - Supply
- 1.65V~5.5V
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- Moisture sensitivity
- MSL 1 (unlimited)
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 5 (multiples of 5)
- Unit weight
- 0.033 g
Overview
The TS5A3167 is a bidirectional, single-channel, single-pole double-throw (SPDT) analog switch that is designed to operate from 1.65 V to 5.5 V. The TS5A3167 device offers a low ON-state resistance. The device has excellent total harmonic distortion (THD) performance and consumes very low power. These features make this device suitable for portable audio applications.
Applications
- Cell Phones
- PDAs Portable Instrumentation
- Audio and Video Signal Routing
- Low-Voltage Data-Acquisition Systems Communication Circuits
- Modems Hard Drives
- Computer Peripherals Wireless Terminals and Peripherals
- Microphone Switching – Notebook Docking
Key features
- Isolation in Powered-Off Mode, VCC = 0
- Low ON-State Resistance (0.9 Ω)
- Control Inputs Are 5.5-V Tolerant
- Low Charge Injection
- Low Total Harmonic Distortion (THD)
- 1.65-V to 5.5-V Single-Supply Operation
- Latch-Up Performance Exceeds 100 mA Per JESD 78, Class II
- ESD Performance Tested Per JESD 22 2000-V Human-Body Model (A114-B, Class II) 1000-V Charged-Device Model (C101)
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | TPG1067C5#C48543253TECH PUBLIC · SOT-353 | TECH PUBLIC | SOT-353 | 445 | ₹31.59 · 445 in stock | View |
 | TS5A3166QDCKRQ1#C2673130TI · SC-70-5 | TI | SC-70-5 | On request | ₹60.02 · 0 in stock | View |
 | SN74LVC1G66DCKR-JSM#C53114328JSMSEMI · SOT-353 | JSMSEMI | SOT-353 | 2,965 | ₹12.28 · 2,965 in stock | View |
 | 74LVC1G66GW,125#C97489Nexperia · SOT-353 | Nexperia | SOT-353 | 9,545 | ₹13.61 · 9,545 in stock | View |
 | PI5A3167CCEX#C2673940DIODES · SC-70-5 | DIODES | SC-70-5 | 90 | ₹41.20 · 90 in stock | View |
