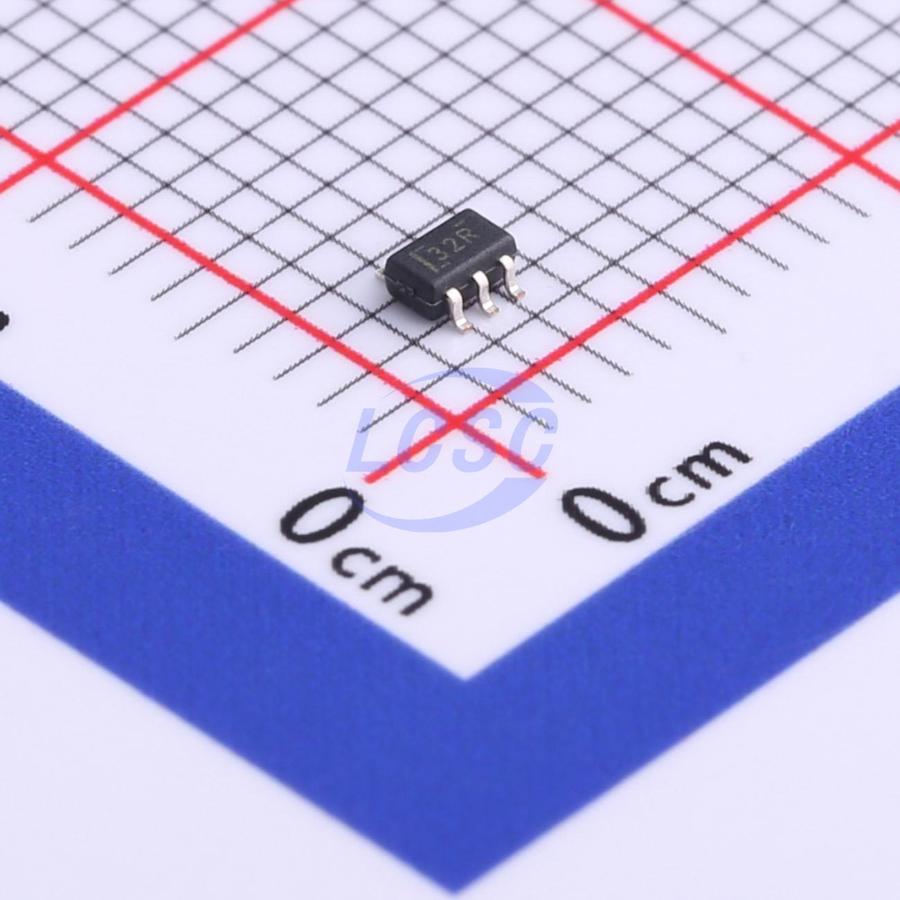

TS5A9411DCKR
10Ω 2.25V~5.5V 1 SC-70-6 Analog Switches, Multiplexers, Demultiplexers RoHS
SC-70-6ROHS3 CompliantActive
1:2 SPDT Analog Switch, Single-Channel 2:1 Multiplexer and Demultiplexer
- Manufacturer
- TI
- Manufacturer part #
- TS5A9411DCKR
- Store part #
- C414621
- Package / case
- SC-70-6
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
1,840 in stock
#C414621
Stock & price checked 4 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 5+ | ₹60.18 | ₹300.90 |
| 50+ | ₹47.03 | ₹2,351.50 |
| 150+ | ₹41.40 | ₹6,210.00 |
| 500+ | ₹34.37 | ₹17,185.00 |
| 3,000+ | ₹31.24 | ₹93,720.00 |
| 6,000+ | ₹29.36 | ₹1,76,160.00 |
5 × ₹60.18
₹300.90
excl. GST
₹355.06 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
TS5A9411DCKR
₹300.90 for 5 + GST
Specifications
- Features
- Bidirectional analog channel;Glitch-free switching
- Operating Temperature
- -40℃~+85℃
- Ron
- 10Ω
- Voltage - Supply
- 2.25V~5.5V
- Number of Channels
- 1
- Con
- 8.5pF
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- Moisture sensitivity
- MSL 1 (unlimited)
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 5 (multiples of 5)
- Unit weight
- 0.028 g
Overview
The TS5A9411 device is a bidirectional, single-pole double-throw (SPDT) analog switch that is designed to operate from 2.25 V to 5.5 V. The device offers low ON-state resistance, low leakage, and low power with a break-before-make feature. These features make this device suitable for portable and battery-powered applications.
Applications
- Cell Phones
- Communication Systems
- Portable Test Equipment
- Battery Operated Systems Sample-and-Hold Circuits
Key features
- Specified Break-Before-Make Switching
- Low ON-State Resistance (10-Ω Maximum at V_CC = 5 V_A)
- Low Power Consumption
- TTL- and CMOS-Compatible Control Input
- Low Input and Output Capacitance
- Excellent ON-State Resistance Matching
- Low Total Harmonic Distortion
- 2.25-V to 5.5-V Single-Supply Operation
- Latch-Up Performance Exceeds 100 mA Per JESD 78, Class II
- ESD Performance Tested Per JESD 22
- 2000-V Human-Body Model (A114-B, Class II)
- 1000-V Charged-Device Model (C101)
- Control Inputs Are 5.5-V Tolerant
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | RS2101XC6#C237026RUNIC · SC-70-6 | RUNIC | SC-70-6 | 2,940 | ₹29.87 · 2,940 in stock | View |
 | TPTS5A9411DCKR#C42449043TECH PUBLIC · SOT-363 | TECH PUBLIC | SOT-363 | 735 | ₹22.98 · 735 in stock | View |
 | TS5A3157DCKR#C91307TI · SC-70-6(SOT-363) | TI | SC-70-6(SOT-363) | 1,950 | ₹71.22 · 1,950 in stock | View |
 | GS3221-CR#C2978620Gainsil · SC-70-6 | Gainsil | SC-70-6 | 2,970 | ₹15.76 · 2,970 in stock | View |
 | DIO3157ESC6#C444615DIOO · SC-70-6 | DIOO | SC-70-6 | 1,210 | ₹14.79 · 1,210 in stock | View |
