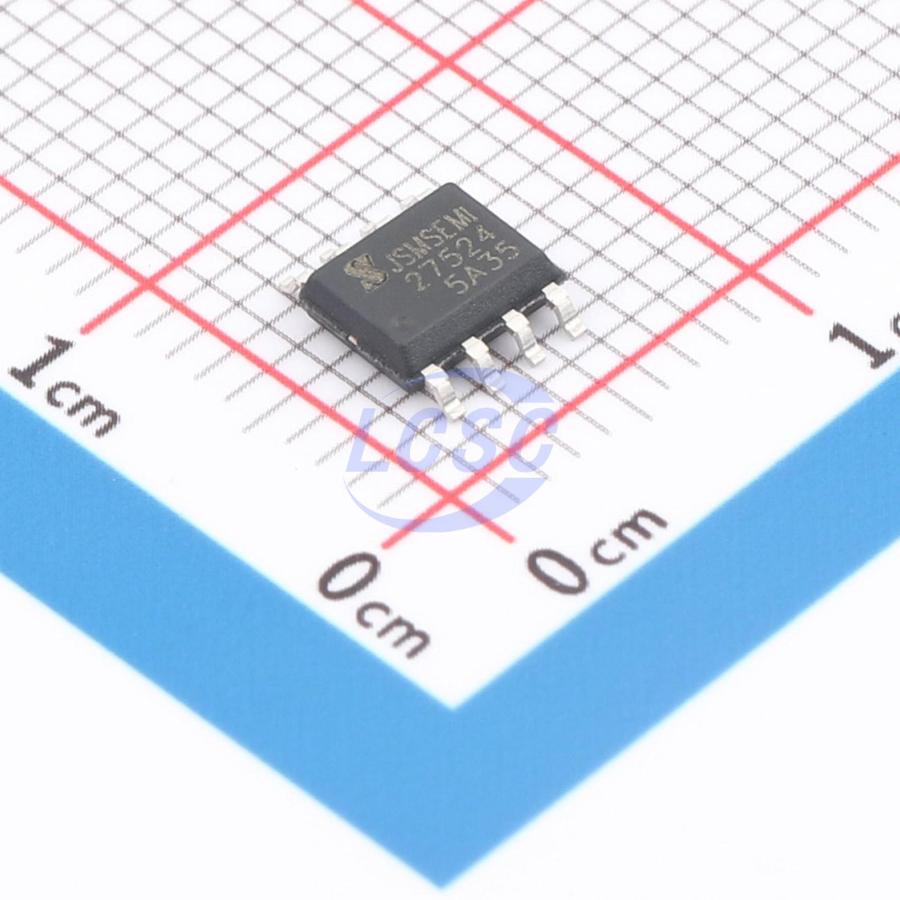

UCC27524DR-JSM
4.5V~20V SOP-8 Gate Drivers RoHS
- Manufacturer
- JSMSEMI
- Manufacturer part #
- UCC27524DR-JSM
- Store part #
- C18195049
- Package / case
- SOP-8
- Category
- Gate Drivers
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
4,510 in stock
#C18195049
Stock & price checked 3 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 5+ | ₹45.22 | ₹226.10 |
| 50+ | ₹35.50 | ₹1,775.00 |
| 150+ | ₹31.32 | ₹4,698.00 |
| 500+ | ₹26.12 | ₹13,060.00 |
| 2,500+ | ₹23.80 | ₹59,500.00 |
| 4,000+ | ₹22.41 | ₹89,640.00 |
5 × ₹45.22
₹226.10
excl. GST
₹266.80 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 4,000 per reel
UCC27524DR-JSM
₹226.10 for 5 + GST
Specifications
- Input Logic Level - Low
- 800mV
- Low Level Delay Time
- 40ns
- High Level Delay Time
- 40ns
- Input Logic Level - High
- 2.4V
- Voltage - Supply
- 4.5V~20V
- Operating Temperature
- -40℃~+125℃
- Rise Time
- 30ns
- Fall Time
- 30ns
- Features
- Enable shutdown
- Load Type
- MOSFET;IGBT
Packaging & compliance
- RoHS
- ROHS Compliant
- Lifecycle
- Active
- Moisture sensitivity
- MSL 3 (168 hours)
- Packaging
- Tape & Reel (TR)
- Standard pack
- 4,000 / Reel
- Sold per
- Piece
- Minimum order
- 5 (multiples of 5)
- Unit weight
- 0.412 g
Overview
Power switch driver for charging and discharging the gate of power switches, with matched rise and fall times. Highly latch-resistant under any conditions within rated power and voltage range. Capable of withstanding noise spikes up to 5V (either polarity) on the ground pin without damage. Accepts up to 500mA of reverse current forced back into its output without damage or logic upset. Comprehensive ESD protection on all terminals, up to 2.0kV. SOIC8 package, operating temperature range -40℃ ~ 125℃.
Applications
- Switching power supplies
- Switching converters
- Line drivers
- Pulse transformer driving
- MOSFET and IGBT driving
Key features
- Latch protection: withstands 0.5A reverse current
- Input logic protection down to -10V
- Low output impedance
- Dual-channel driver in single chip
- Independent enable control for each channel
- Peak output current: 4A
- Operating voltage range: 4.5V~20V
- High capacitive load drive capability
- Switching time <25ns at 1nF load
- Matched rise/fall times
- Propagation delay: 40ns
- Wide operating temperature range: -40℃ ~ 125℃
- Turn-on/turn-off delay characteristics
- Turn-on/turn-off delay time: 70ns/70ns
- RoHS-compliant SOIC8 package
