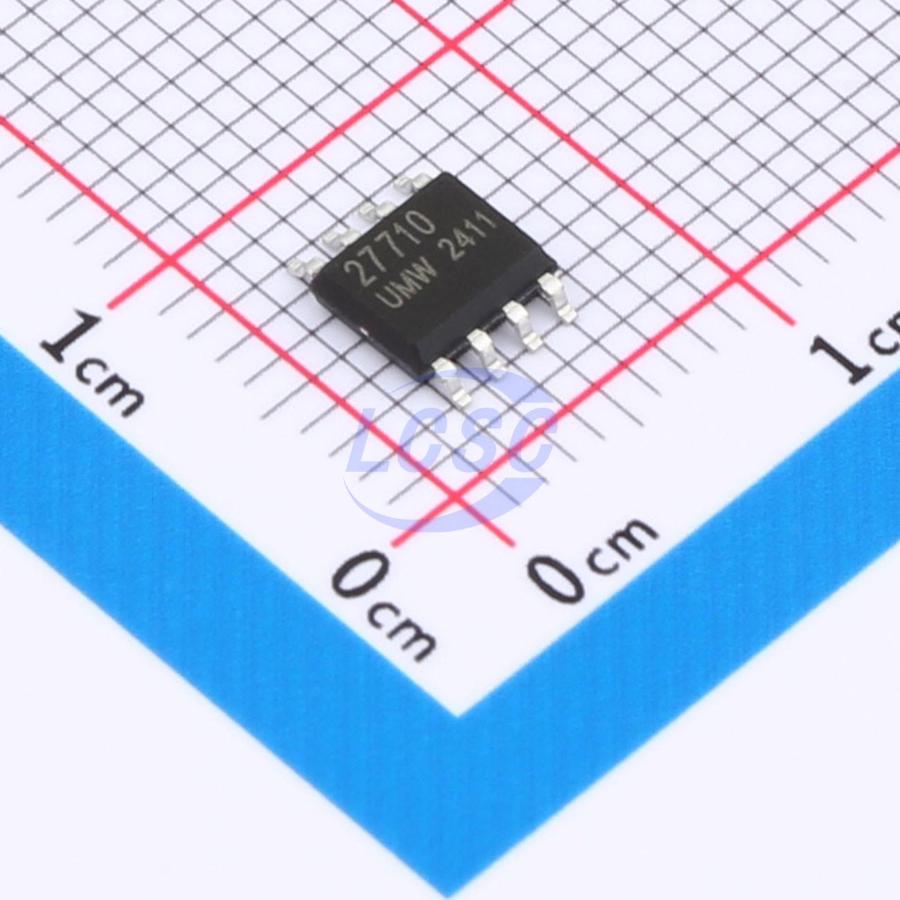

UCC27710DR(UMW)
10V~20V 1A 600mA SOP-8 Gate Drivers RoHS
650V Half Bridge MOSFET/IGBT Gate Driver
- Manufacturer
- UMW
- Manufacturer part #
- UCC27710DR(UMW)
- Store part #
- C29780640
- Package / case
- SOP-8
- Category
- Gate Drivers
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
2,173 in stock
#C29780640
Stock & price checked 6 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹45.75 | ₹45.75 |
| 10+ | ₹39.95 | ₹399.50 |
| 30+ | ₹37.59 | ₹1,127.70 |
| 100+ | ₹34.37 | ₹3,437.00 |
| 500+ | ₹33.08 | ₹16,540.00 |
| 1,000+ | ₹32.23 | ₹32,230.00 |
1 × ₹45.75
₹45.75
excl. GST
₹53.99 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 2,500 per reel
UCC27710DR(UMW)
₹45.75 for 1 + GST
Specifications
- Low Level Delay Time
- 250ns
- High Level Delay Time
- 150ns
- Quiescent Current
- 60uA
- Voltage - Supply
- 10V~20V
- Operating Temperature
- -40℃~+125℃
- Driven Configuration
- Half-Bridge
- Current - Output Low(IOL)
- 1A
- Rise Time
- 70ns
- Fall Time
- 35ns
- Features
- Interleaved conduction protection;Dead-time control
- Current - Output High(IOH)
- 600mA
- Load Type
- MOSFET;IGBT
Packaging & compliance
- RoHS
- ROHS Compliant
- Lifecycle
- Active
- Moisture sensitivity
- MSL 3 (168 hours)
- Packaging
- Tape & Reel (TR)
- Standard pack
- 2,500 / Reel
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 0.127 g
Overview
The UCC27710 is a high voltage, high speed power MOSFET drivers with dependent high- and low-side referenced output channels. Proprietary HVIC and latch immune CMOS technologies enable ruggedized monolithic construction. The logic input is compatible with standard CMOS or LSTTL output, down to 3.3 V logic. The output drivers feature a high pulse current buffer stage designed for minimum driver crossconduction. The floating channel can be used to drive an N-channel power MOSFET in the high-side configuration which operates up to 600 V.
Applications
- Motor Control
- Air Conditioners/ Washing Machines
- General Purpose Inverters
- Micro/Mini Inverter Drives
Key features
- Floating channel designed for bootstrap operation
- Fully operational to +650 V
- 3.3V, 5V and 15V input logic compatible
- dV/dt noise immunity ±50 V/ns
- Under voltage lockout for both channels
- VCC UVLO threshold 8.7V/7.7V
- VBS UVLO threshold 8.2V/7.3V
- Propagation delay
- Ton/Toff = 2.50ns/150ns
- Matching delay time 50ns
- Cross-conduction prevention logic
- Deadtime 130ns
- Wide operating temperature range -40°C~125°C
- Typically output Source/Sink current capability: 0.6A/1A
