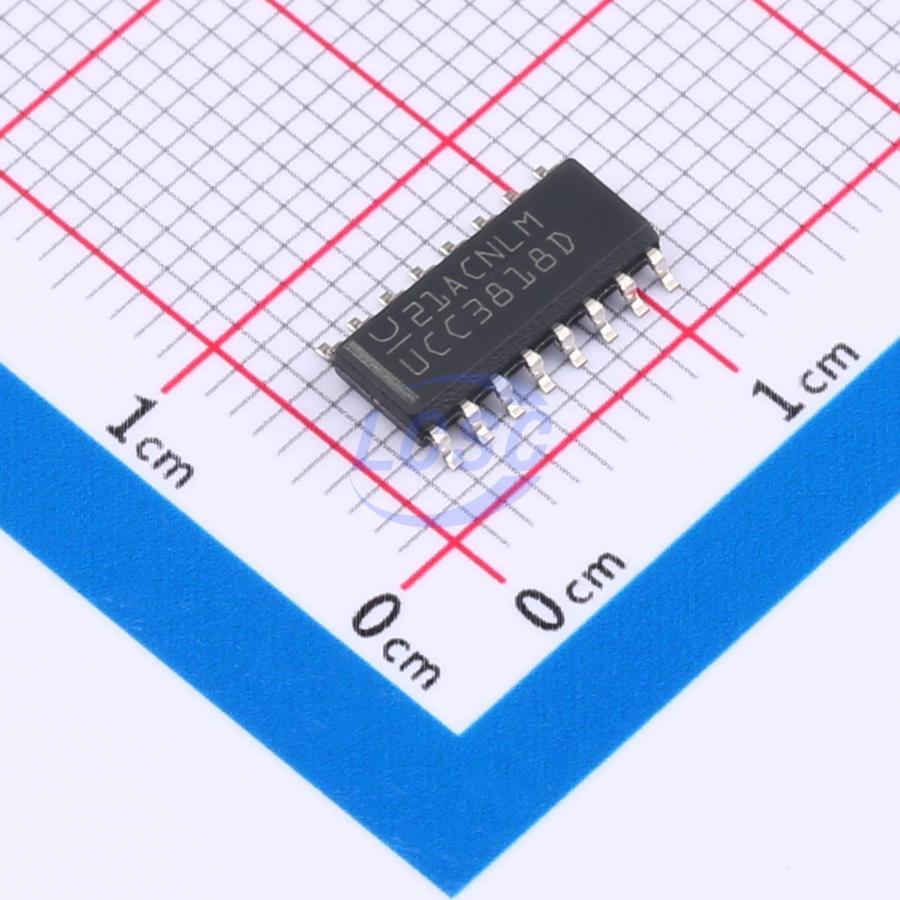

UCC3818DTR
120kHz 10V~17V SOIC-16 PFC (Power Factor Correction) RoHS
BiCMOS Power Factor Pregulator
- Manufacturer
- TI
- Manufacturer part #
- UCC3818DTR
- Store part #
- C471051
- Package / case
- SOIC-16
- Category
- PFC (Power Factor Correction)
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
4,985 in stock
#C471051
Stock & price checked 4 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹334.08 | ₹334.08 |
| 10+ | ₹291.97 | ₹2,919.70 |
| 30+ | ₹265.84 | ₹7,975.20 |
| 100+ | ₹238.85 | ₹23,885.00 |
| 500+ | ₹226.76 | ₹1,13,380.00 |
| 1,000+ | ₹221.58 | ₹2,21,580.00 |
1 × ₹334.08
₹334.08
excl. GST
₹394.21 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 2,500 per reel
UCC3818DTR
₹334.08 for 1 + GST
Specifications
- Features
- With enable;Overvoltage protection;Under-voltage lockout
- Frequency - Switching
- 120kHz
- standby current
- 150uA
- Type
- PFCController
- Operating Temperature
- 0℃~+70℃
- Voltage - Supply
- 10V~17V
- Working Mode
- CRM
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- Moisture sensitivity
- MSL 1 (unlimited)
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 2,500 / Reel
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 0.187 g
Overview
The UCCx817 and UCCx818 family provides all the functions necessary for active power factor-corrected preregulators. The controller achieves near-unity power factor by shaping the AC input line current waveform to correspond to that of the AC input line voltage. Average current mode control maintains stable, low distortion sinusoidal line current. Designed in Texas Instrument’s BiCMOS process, the UCCx817 and UCCx818 offers new features such as lower start-up current, lower power dissipation, overvoltage protection, a shunt UVLO detect circuitry, a leading-edge modulation technique to reduce ripple current in the bulk capacitor, and an improved, lowoffset (±2-mV) current amplifier to reduce distortion at light load conditions.
Applications
- PC Power
- Consumer Electronics
- Lighting
- Industrial Power Supplies
- IEC6100-3-2 Compliant Supplies Less Than 300 W
Key features
- Controls Boost Preregulator to Near-Unity Power Factor
- Limits Line Distortion
- World Wide Line Operation
- Over-Voltage Protection
- Accurate Power Limiting
- Average Current Mode Control
- Improved Noise Immunity
- Improved Feed-Forward Line Regulation
- Leading Edge Modulation
- 150-μA Typical Start-Up Current
- Low-Power BiCMOS Operation
- Up to 18-V Operation
- Frequency Range 6 kHz to 220 kHz
