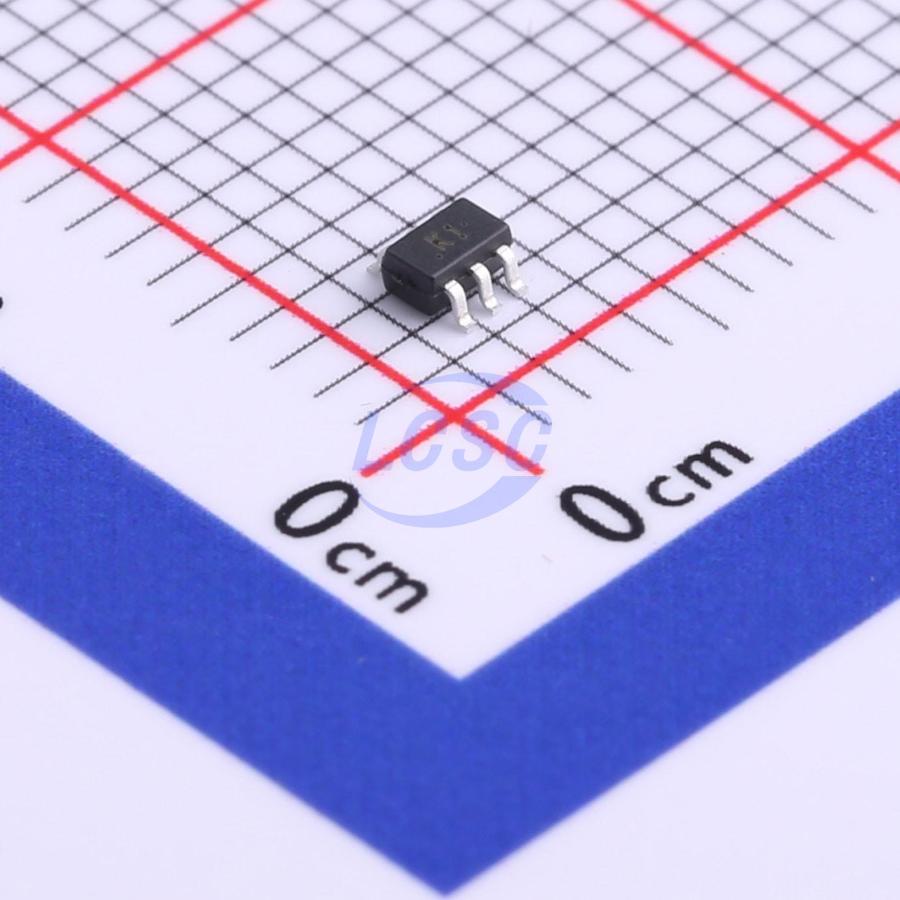

UM6K1N
N-Channel 30V 0.1A Surface Mount SOT-363
SOT-363ROHS CompliantActive
MOSFET N-CH 30V 0.1A SOT-363
- Manufacturer
- JSCJ
- Manufacturer part #
- UM6K1N
- Store part #
- C504139
- Package / case
- SOT-363
- Category
- Single FETs, MOSFETs
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
2,510 in stock
#C504139
Stock & price checked 10 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 10+ | ₹10.56 | ₹105.60 |
| 100+ | ₹8.65 | ₹865.00 |
| 300+ | ₹7.71 | ₹2,313.00 |
| 3,000+ | ₹7.00 | ₹21,000.00 |
| 6,000+ | ₹6.43 | ₹38,580.00 |
| 9,000+ | ₹6.14 | ₹55,260.00 |
10 × ₹10.56
₹105.60
excl. GST
₹124.61 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
UM6K1N
₹105.60 for 10 + GST
Specifications
- Output Capacitance(Coss)
- 9pF
- Ciss-Input Capacitance
- 13pF
- Pd - Power Dissipation
- 150mW
- Drain to Source Voltage
- 30V
- Current - Continuous Drain(Id)
- 100mA
- Reverse Transfer Capacitance (Crss)
- 4pF
- RDS(on)
- 4Ω@4V;6Ω@2.5V
- Number
- 2 N-Channel
- Vgs
- ±20V
- Gate Threshold Voltage (Vgs(th))
- 1.5V
- Type
- N-Channel
Packaging & compliance
- RoHS
- ROHS Compliant
- Lifecycle
- Active
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 10 (multiples of 10)
- Unit weight
- 0.032 g
Overview
Key features
- Two 2SK3018 transistors in a package.
- The MOS FET elements are independent, eliminating mutual interference.
- Mounting cost and area can be cut in half.
- Low On-resistance.
- Low voltage drive (2.5V drive) makes this device ideal for portable equipment
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | 2N7002DW#C2961242JSCJ · SOT-363 | JSCJ | SOT-363 | 11,690 | ₹6.13 · 11,690 in stock | View |
 | 2N7002DW K72#C61840JSCJ · SC-70-6(SOT-363) | JSCJ | SC-70-6(SOT-363) | 750 | ₹5.31 · 750 in stock | View |
