UMWDatasheet (PDF)

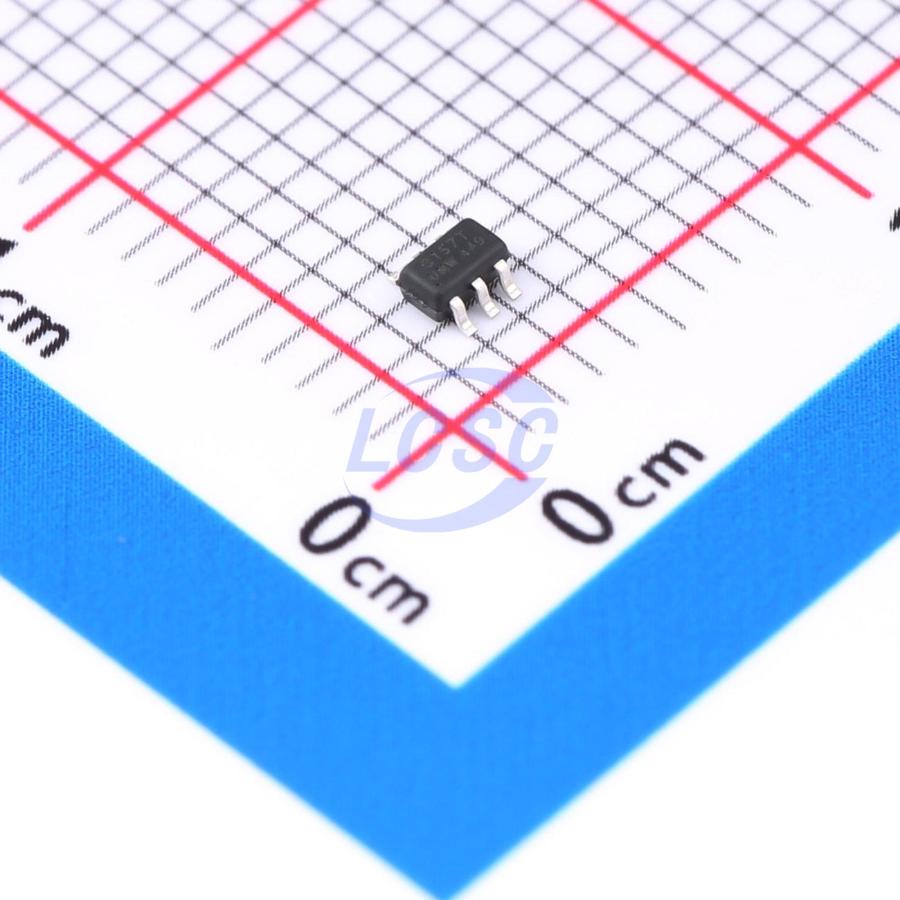

UMW3157
SC-70-6 Analog Switches, Multiplexers, Demultiplexers RoHS
SC-70-6ROHS3 CompliantActive
2:1 Analog Switch Circuit
- Manufacturer
- UMW
- Manufacturer part #
- UMW3157
- Store part #
- C394901
- Package / case
- SC-70-6
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
32,900 in stock
#C394901
Stock & price checked 3 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 10+ | ₹9.25 | ₹92.50 |
| 100+ | ₹6.93 | ₹693.00 |
| 300+ | ₹5.77 | ₹1,731.00 |
| 3,000+ | ₹4.91 | ₹14,730.00 |
| 6,000+ | ₹4.21 | ₹25,260.00 |
| 9,000+ | ₹3.86 | ₹34,740.00 |
10 × ₹9.25
₹92.50
excl. GST
₹109.15 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
UMW3157
₹92.50 for 10 + GST
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- Moisture sensitivity
- MSL 1 (unlimited)
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 10 (multiples of 10)
- Unit weight
- 0.034 g
Overview
The UMW3157 is a CMOS-based analog switch featuring low power consumption, low propagation delay, and low output impedance. The voltage output range for both analog and digital signals spans from VCC to GND. The Select input incorporates overvoltage protection, allowing input voltages to exceed VCC up to 7V without damaging the pin.
Applications
- Switch for NTSC/PAL video, audio, SPDIF, and HDTV
- Clock switch and data selector switch
Key features
- Low power consumption
- High transmission speed
- Standard CMOS logic level translation
- High bandwidth, high linearity
- Low output impedance
- Break-before-make protection against short circuit
- Operating temperature -55°C~+125°C
- Package SC70-6 (3157DCKR)
