VISHAYDatasheet (PDF)

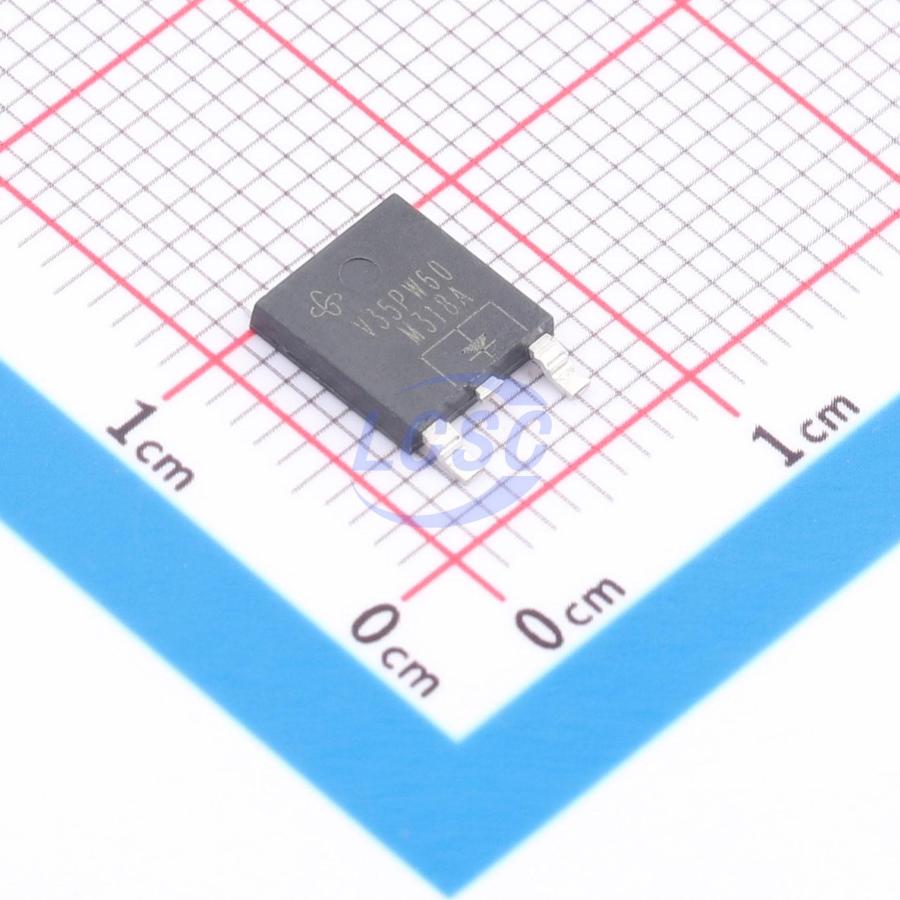

V35PW60-M3/I
1 Independent 60V 720mV@35A 35A TO-252-3 Single Diodes RoHS
TO-252-3ROHS3 CompliantActive
- Manufacturer
- VISHAY
- Manufacturer part #
- V35PW60-M3/I
- Store part #
- C7377343
- Package / case
- TO-252-3
- Category
- Single Diodes
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
48 in stock
#C7377343
Stock & price checked 6 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹221.22 | ₹221.22 |
| 10+ | ₹184.97 | ₹1,849.70 |
| 30+ | ₹164.99 | ₹4,949.70 |
| 100+ | ₹142.63 | ₹14,263.00 |
| 500+ | ₹132.64 | ₹66,320.00 |
| 1,000+ | ₹128.09 | ₹1,28,090.00 |
1 × ₹221.22
₹221.22
excl. GST
₹261.04 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 4,500 per reel
V35PW60-M3/I
₹221.22 for 1 + GST
Specifications
- Diode Configuration
- 1 Independent
- Operating Junction Temperature Range
- -40℃~+150℃
- Voltage - DC Reverse (Vr) (Max)
- 60V
- Voltage - Forward(Vf@If)
- 720mV@35A
- Reverse Leakage Current (Ir)
- 5mA@600V
- Non-Repetitive Peak Forward Surge Current
- 260A
- Current - Rectified
- 35A
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 4,500 / Reel
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 0.59 g
Overview
High current density surface mount TMBS (Trench MOS Barrier Schottky) rectifier. Ultra-low VF = 0.31 V at IF = 5 A. eSMP series, SlimDPAK (TO-252AE) package.
Applications
- For use in low-voltage, high-frequency DC/DC converters, freewheeling diode, and polarity protection applications.
Key features
- Ultra-low profile, typical height 1.3mm
- Trench MOS Schottky technology
- Suitable for automated placement
- Low forward voltage drop, low power loss, high-efficiency operation
- MSL Level 1 per J-STD-020, LF max peak 260°C
- AEC-Q101 qualified available
- Automotive order code: base part number NHM3
