VISHAYDatasheet (PDF)

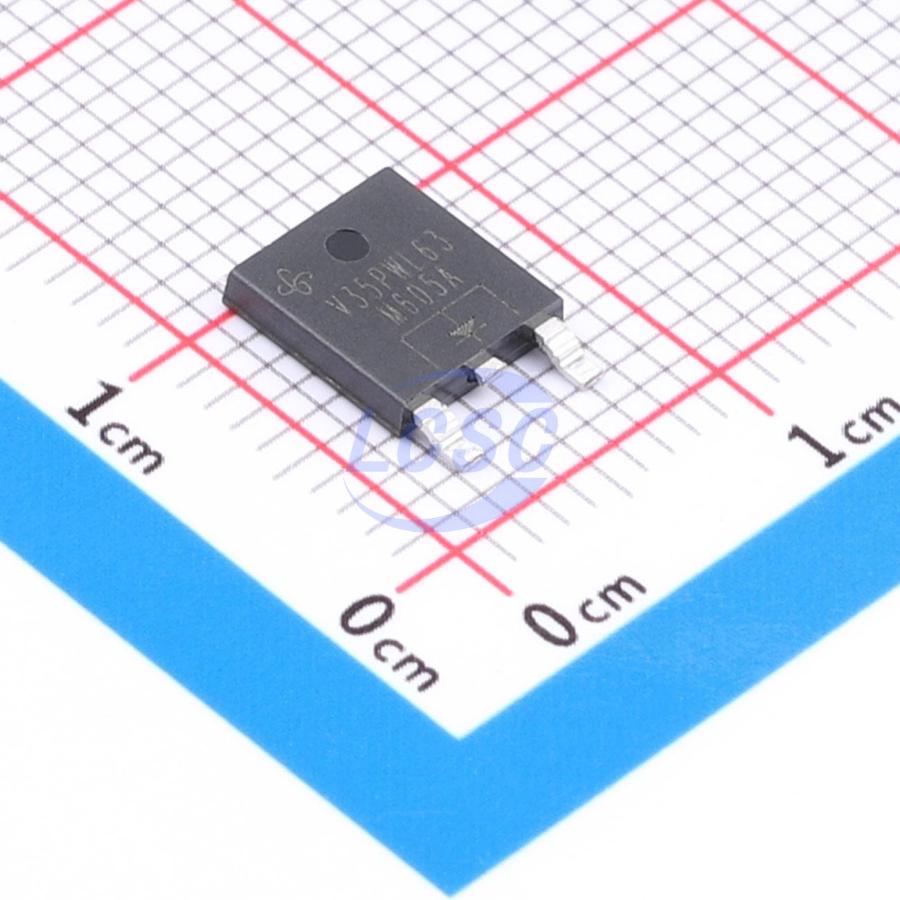

V35PWL63-M3/I
1 Independent 60V 680mV@35A 35A TO-252-3 Single Diodes RoHS
TO-252-3ROHS3 CompliantActive
DIODE SCHOTTKY 60V TO-252-3
- Manufacturer
- VISHAY
- Manufacturer part #
- V35PWL63-M3/I
- Store part #
- C6310276
- Package / case
- TO-252-3
- Category
- Single Diodes
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
27 in stock
#C6310276
Stock & price checked 5 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹540.56 | ₹540.56 |
| 10+ | ₹478.20 | ₹4,782.00 |
| 30+ | ₹438.97 | ₹13,169.10 |
| 100+ | ₹398.90 | ₹39,890.00 |
| 500+ | ₹380.89 | ₹1,90,445.00 |
| 1,000+ | ₹372.95 | ₹3,72,950.00 |
1 × ₹540.56
₹540.56
excl. GST
₹637.86 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 4,500 per reel
V35PWL63-M3/I
₹540.56 for 1 + GST
Specifications
- Diode Configuration
- 1 Independent
- Operating Junction Temperature Range
- -40℃~+150℃
- Voltage - DC Reverse (Vr) (Max)
- 60V
- Voltage - Forward(Vf@If)
- 680mV@35A
- Reverse Leakage Current (Ir)
- 700uA@60V
- Non-Repetitive Peak Forward Surge Current
- 260A
- Current - Rectified
- 35A
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 4,500 / Reel
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 0.517 g
Overview
High current density surface mount TMBS (Trench MOS Barrier Schottky) rectifier. Ultra-low VF = 0.28V at IF = 5A. SlimDPAK (TO-252AE) package.
Applications
- For use in low-voltage, high-frequency DC/DC converters, freewheeling diode, and polarity protection applications.
Key features
- Ultra-thin profile
- Typical height 1.3mm
- Trench MOS Schottky technology
- Suitable for automatic placement
- Low forward voltage drop, low power loss
- High efficiency operation
- MSL Level 1 per J-STD-020, LF max peak 260°C
- AEC-Q101 qualified parts available
- Automotive order code: base P/N HM3
