VISHAYDatasheet (PDF)

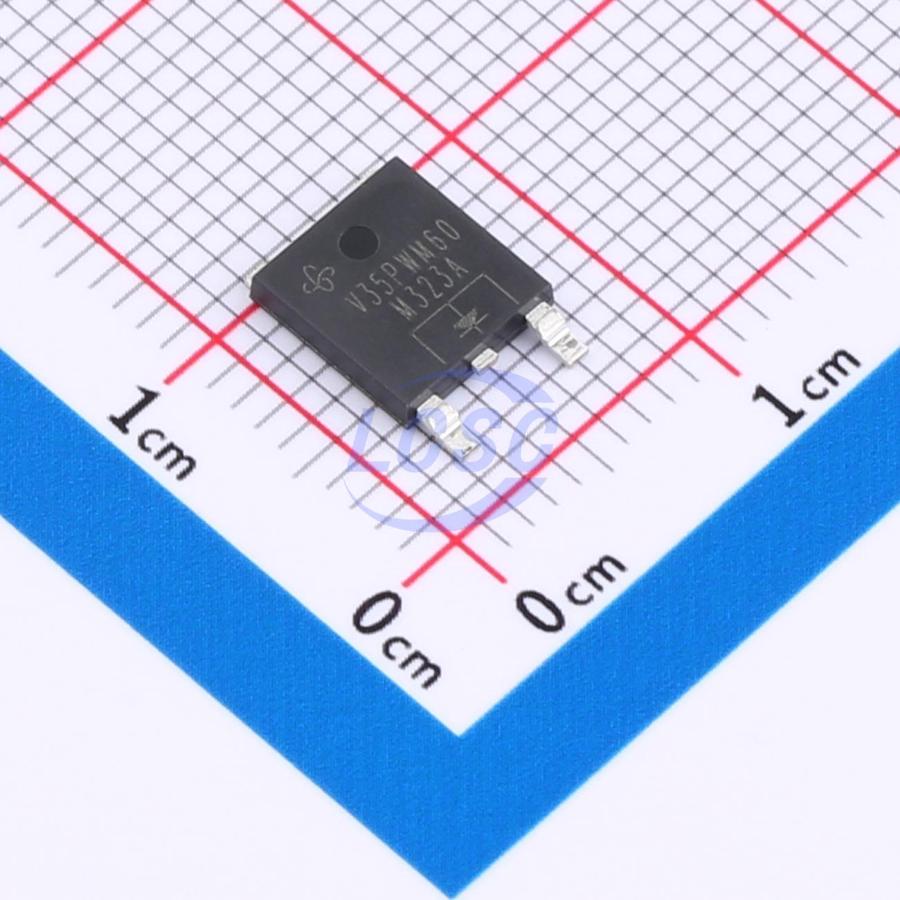

V35PWM60HM3/I
Diode 1 Independent 60V 35A Surface Mount TO-252-3
TO-252-3ROHS3 CompliantActive
DIODE SCHOTTKY 60V TO-252-3
- Manufacturer
- VISHAY
- Manufacturer part #
- V35PWM60HM3/I
- Store part #
- C6908453
- Package / case
- TO-252-3
- Category
- Single Diodes
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
20 in stock
#C6908453
Stock & price checked 5 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹152.77 | ₹152.77 |
| 10+ | ₹149.29 | ₹1,492.90 |
| 30+ | ₹147.12 | ₹4,413.60 |
| 100+ | ₹144.72 | ₹14,472.00 |
1 × ₹152.77
₹152.77
excl. GST
₹180.27 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 4,500 per reel
V35PWM60HM3/I
₹152.77 for 1 + GST
Specifications
- Diode Configuration
- 1 Independent
- Operating Junction Temperature Range
- -40℃~+175℃
- Voltage - DC Reverse (Vr) (Max)
- 60V
- Voltage - Forward(Vf@If)
- 770mV@35A
- Reverse Leakage Current (Ir)
- 2.1mA@60V
- Non-Repetitive Peak Forward Surge Current
- 260A
- Current - Rectified
- 35A
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 4,500 / Reel
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 0.485 g
Overview
Applications
- For use in low-voltage, high-frequency DC/DC converters, freewheeling diode, and polarity protection applications.
Key features
- Ultra-thin profile – typical height 1.3mm
- Trench MOS Schottky technology
- Suitable for automatic placement
- Low forward voltage drop, low power dissipation, high operating efficiency
- MSL Level 1 per J-STD-020, LF max peak temperature 260°C
- AEC-Q101 qualified versions available
- Automotive ordering code: NHM3 for base part number
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | V35PWM60-M3/I#C7140641VISHAY · TO-252-3 | VISHAY | TO-252-3 | 20 | ₹228.06 · 20 in stock | View |
 | V35PW60-M3/I#C7377343VISHAY · TO-252-3 | VISHAY | TO-252-3 | 48 | ₹221.22 · 48 in stock | View |
 | V35PWL63-M3/I#C6310276VISHAY · TO-252-3 | VISHAY | TO-252-3 | 27 | ₹540.56 · 27 in stock | View |
 | V35PW10-M3/I#C7408876VISHAY · TO-252-3 | VISHAY | TO-252-3 | 44 | ₹130.38 · 44 in stock | View |
 | V35PWM15HM3/I#C6013589VISHAY · TO-252-3 | VISHAY | TO-252-3 | 36 | ₹359.38 · 36 in stock | View |
