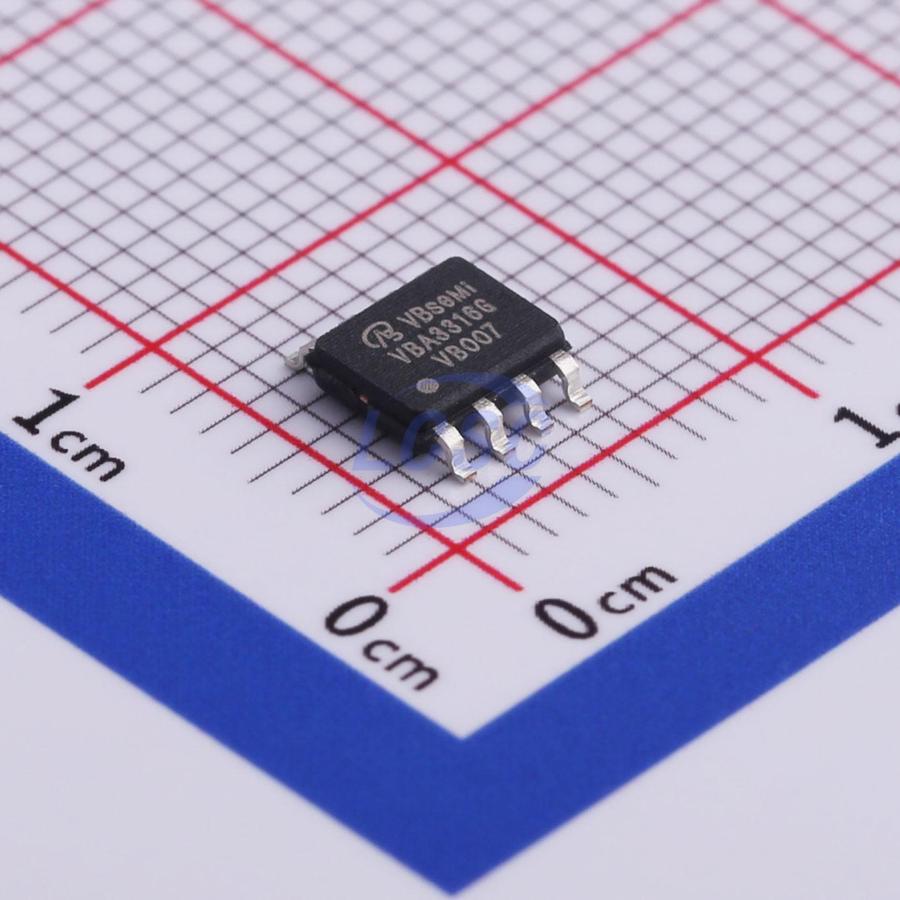

VBA3316G
N-Channel Array 30V 8A 4.16W Surface Mount SO-8
SO-8RoHSActive
MOSFET N-CH ARR 30V 8A SO-8
- Manufacturer
- VBsemi Elec
- Manufacturer part #
- VBA3316G
- Store part #
- C516886
- Package / case
- SO-8
- Category
- Single FETs, MOSFETs
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
10 in stock
#C516886
Stock & price checked 9 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹75.62 | ₹75.62 |
| 10+ | ₹60.08 | ₹600.80 |
| 30+ | ₹53.36 | ₹1,600.80 |
| 100+ | ₹44.96 | ₹4,496.00 |
| 500+ | ₹40.34 | ₹20,170.00 |
| 1,000+ | ₹38.02 | ₹38,020.00 |
1 × ₹75.62
₹75.62
excl. GST
₹89.23 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 4,000 per reel
VBA3316G
₹75.62 for 1 + GST
Specifications
- Operating Temperature
- -55℃~+150℃
- Drain to Source Voltage
- 30V
- Output Capacitance(Coss)
- 205pF;360pF
- Current - Continuous Drain(Id)
- 8A;15A
- Ciss-Input Capacitance
- 1.535nF;2.29nF
- Pd - Power Dissipation
- 1.98W;4.16W
- Reverse Transfer Capacitance (Crss)
- 91pF;117pF
- RDS(on)
- 17mΩ@10V;9mΩ@10V
- Number
- 2 N-Channel
- Gate Charge(Qg)
- 29nC@10V;39nC@10V
- Gate Threshold Voltage (Vgs(th))
- 1V
- Type
- N-Channel
Packaging & compliance
- RoHS
- RoHS
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 4,000 / Reel
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 0.12 g
Overview
Applications
- Notebook logic DC-DC conversion
- Low-current DC-DC conversion
Key features
- Halogen-free per IEC 61249-2-21
- Trench power MOSFET
- 100% Rg and UIS tested
- RoHS compliant per directive 2002/95/EC
