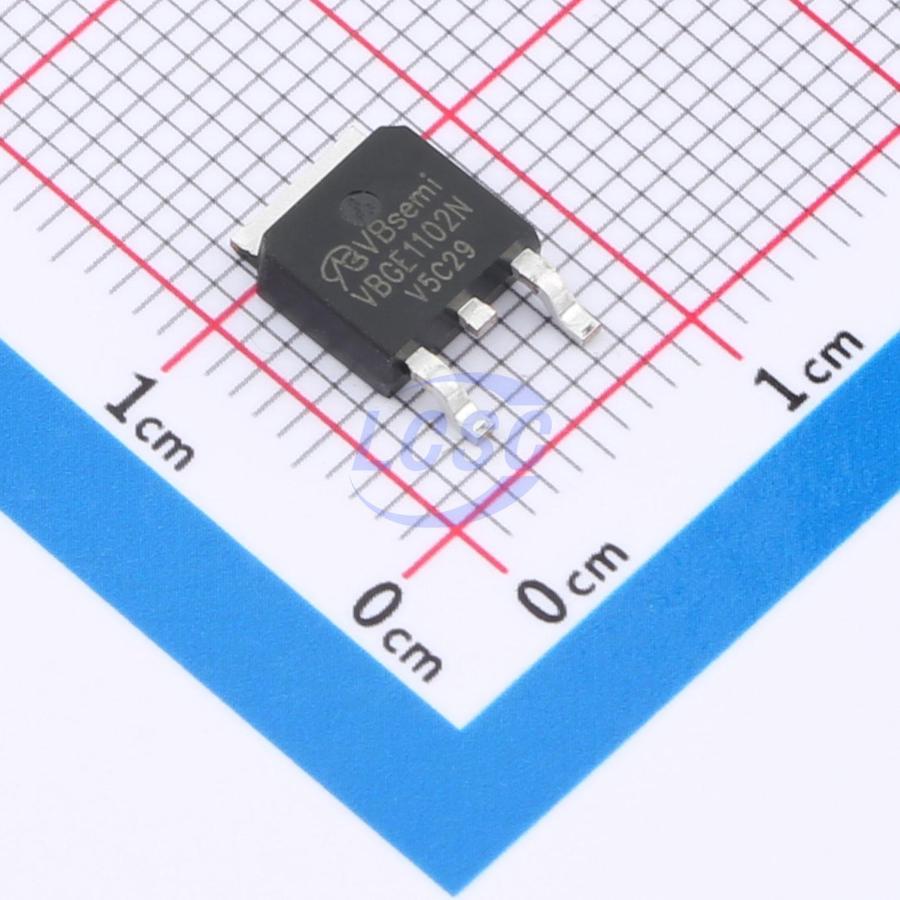

VBGE1102N
N-Channel 100V 35A 150W Surface Mount TO-252
TO-252RoHSActive
MOSFET N-CH 100V 35A TO-252
- Manufacturer
- VBsemi Elec
- Manufacturer part #
- VBGE1102N
- Store part #
- C47993662
- Package / case
- TO-252
- Category
- Single FETs, MOSFETs
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
7 in stock
#C47993662
Stock & price checked 7 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹123.00 | ₹123.00 |
| 10+ | ₹102.32 | ₹1,023.20 |
| 30+ | ₹91.87 | ₹2,756.10 |
| 100+ | ₹81.64 | ₹8,164.00 |
| 500+ | ₹63.36 | ₹31,680.00 |
| 1,000+ | ₹60.30 | ₹60,300.00 |
1 × ₹123.00
₹123.00
excl. GST
₹145.14 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 2,500 per reel
VBGE1102N
₹123.00 for 1 + GST
Specifications
- Operating Temperature
- -55℃~+175℃
- Drain to Source Voltage
- 100V
- Current - Continuous Drain(Id)
- 35A
- Output Capacitance(Coss)
- 246pF
- Ciss-Input Capacitance
- 3.6nF
- Pd - Power Dissipation
- 150W
- Reverse Transfer Capacitance (Crss)
- 21pF
- RDS(on)
- 21mΩ@10V
- Number
- 1 N-channel
- Gate Charge(Qg)
- 76nC@10V
- Gate Threshold Voltage (Vgs(th))
- 4.5V
- Type
- N-Channel
Packaging & compliance
- RoHS
- RoHS
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 2,500 / Reel
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 0.62 g
Overview
Applications
- Power Supplies:
- Uninterruptible Power Supplies
- AC/DC Switching Power Supplies
- Lighting
- Synchronous Rectification
- DC-DC Converters
- Motor Drive Switches
- DC-AC Inverters
- Solar Micro-Inverters
- Class D Audio Amplifiers
Key features
- SGT power MOSFET
- Maximum junction temperature 175°C
- 100% Rg and UIS tested
- RoHS compliant
- Halogen-free
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | STD47N10F7AG-VB#C47993920VBsemi Elec · TO-252 | VBsemi Elec | TO-252 | 4 | ₹123.00 · 4 in stock | View |
 | STD105N10F7AG-VB#C47993967VBsemi Elec · TO-252 | VBsemi Elec | TO-252 | 4 | ₹147.38 · 4 in stock | View |
 | AOD294A-VB#C47993878VBsemi Elec · TO-252 | VBsemi Elec | TO-252 | 10 | ₹163.71 · 10 in stock | View |
 | VBGE1105#C47993661VBsemi Elec · TO-252 | VBsemi Elec | TO-252 | 5 | ₹206.37 · 5 in stock | View |
 | IRFR3710ZTRLPBF-VB#C19190116VBsemi Elec · TO-252 | VBsemi Elec | TO-252 | 20 | ₹128.56 · 20 in stock | View |
