VBsemi ElecDatasheet (PDF)

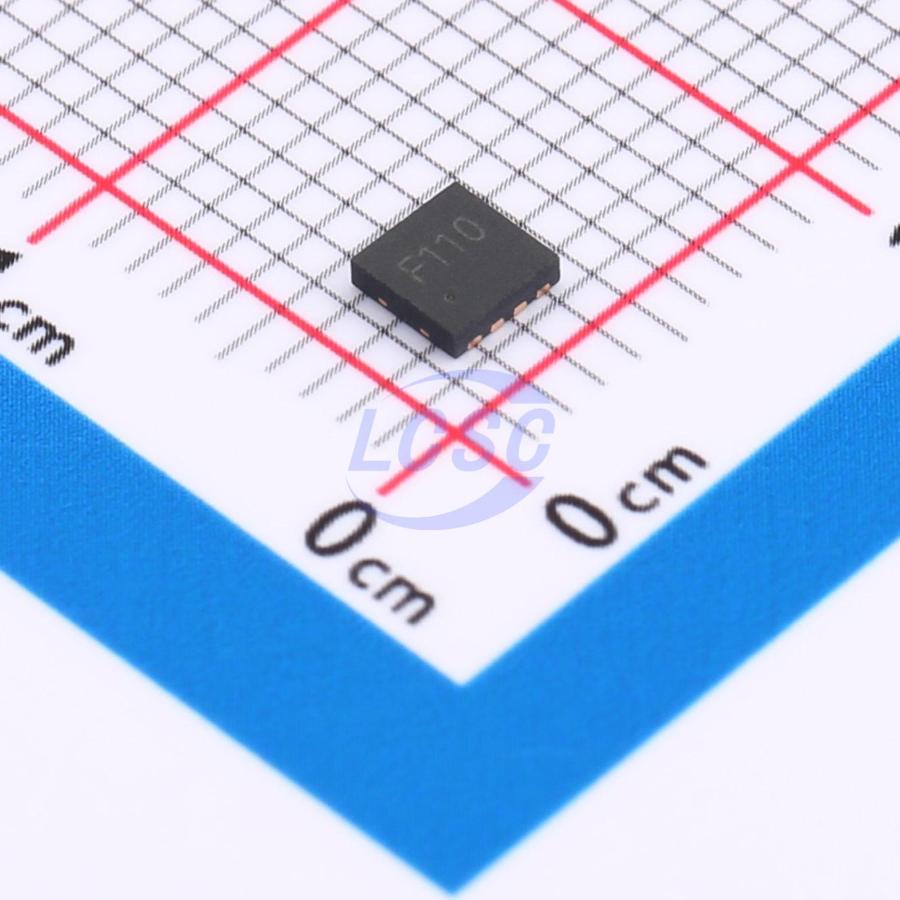

VBQF1101M
N-Channel 100V 4A Surface Mount DFN3x3-8
DFN3x3-8ROHS CompliantActive
MOSFET N-CH 100V 4A DFN3x3-8
- Manufacturer
- VBsemi Elec
- Manufacturer part #
- VBQF1101M
- Store part #
- C7541193
- Package / case
- DFN3x3-8
- Category
- Single FETs, MOSFETs
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
10 in stock
#C7541193
Stock & price checked 8 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹86.92 | ₹86.92 |
| 10+ | ₹70.56 | ₹705.60 |
| 30+ | ₹62.49 | ₹1,874.70 |
| 100+ | ₹54.41 | ₹5,441.00 |
| 500+ | ₹49.52 | ₹24,760.00 |
| 1,000+ | ₹47.18 | ₹47,180.00 |
1 × ₹86.92
₹86.92
excl. GST
₹102.57 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 5,000 per reel
VBQF1101M
₹86.92 for 1 + GST
Specifications
- Operating Temperature
- -55℃~+150℃
- Drain to Source Voltage
- 100V
- Output Capacitance(Coss)
- 73pF
- Current - Continuous Drain(Id)
- 4A
- Ciss-Input Capacitance
- 750pF
- Reverse Transfer Capacitance (Crss)
- 7pF
- RDS(on)
- 130mΩ@10V
- Number
- 1 N-channel
- Gate Charge(Qg)
- 5.2nC@10V
- Gate Threshold Voltage (Vgs(th))
- 1.2V
- Type
- N-Channel
Packaging & compliance
- RoHS
- ROHS Compliant
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 5,000 / Reel
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 0.31 g
Overview
Applications
- Primary-side switch - Inrush current limiter
Key features
- Trench power MOSFET
- 100% Rg and UIS tested
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | FDMC3612-VB#C22388967VBsemi Elec · DFN3x3-8 | VBsemi Elec | DFN3x3-8 | 1 | ₹92.74 · 1 in stock | View |
 | AON7452-VB#C29779102VBsemi Elec · DFN3x3-8 | VBsemi Elec | DFN3x3-8 | 12 | ₹98.62 · 12 in stock | View |
 | CSD19537Q3T-VB#C52110031VBsemi Elec · DFN-8(3x3) | VBsemi Elec | DFN-8(3x3) | 6 | ₹111.03 · 6 in stock | View |
 | CSD19537Q3-VB#C52110032VBsemi Elec · DFN-8(3x3) | VBsemi Elec | DFN-8(3x3) | 35 | ₹111.03 · 35 in stock | View |
 | PXN011-100QLJ-VB#C52148625VBsemi Elec · DFN-8(3x3) | VBsemi Elec | DFN-8(3x3) | 10 | ₹174.38 · 10 in stock | View |
