MDD(Microdiode Semiconductor)
2N7002KN-Channel 60V 300mA 300mW Surface Mount SOT-23
From
₹2.32
25,99,250 in stock
VBsemi ElecDatasheet (PDF)

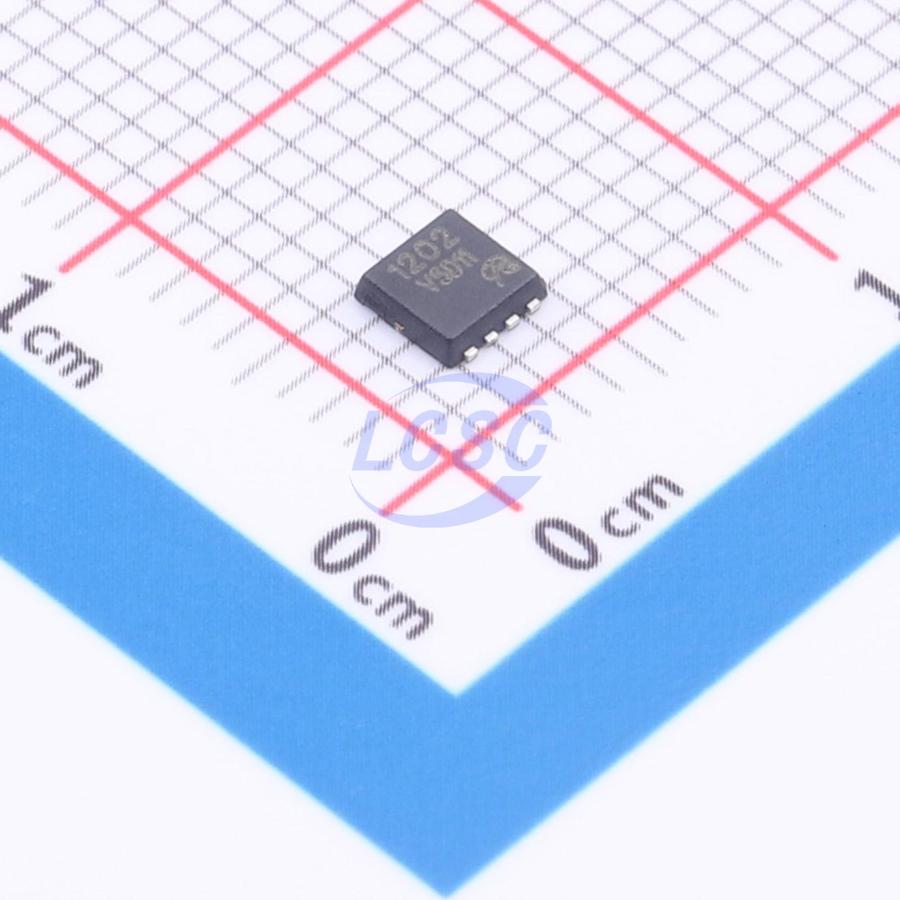

VBQF1202
N-Channel 20V 100A 250W Surface Mount DFN3x3-8
DFN3x3-8RoHSActive
MOSFET N-CH 20V 100A DFN3x3-8
- Manufacturer
- VBsemi Elec
- Manufacturer part #
- VBQF1202
- Store part #
- C42412847
- Package / case
- DFN3x3-8
- Category
- Single FETs, MOSFETs
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
10 in stock
#C42412847
Stock & price checked 5 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹116.25 | ₹116.25 |
| 10+ | ₹99.49 | ₹994.90 |
| 30+ | ₹91.22 | ₹2,736.60 |
| 100+ | ₹82.95 | ₹8,295.00 |
| 500+ | ₹50.72 | ₹25,360.00 |
| 1,000+ | ₹48.33 | ₹48,330.00 |
1 × ₹116.25
₹116.25
excl. GST
₹137.17 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 5,000 per reel
VBQF1202
₹116.25 for 1 + GST
Specifications
- Drain to Source Voltage
- 20V
- Operating Temperature
- -55℃~+175℃
- Current - Continuous Drain(Id)
- 100A
- Output Capacitance(Coss)
- 1.725nF
- Ciss-Input Capacitance
- 6.5nF
- Pd - Power Dissipation
- 250W
- Reverse Transfer Capacitance (Crss)
- 970pF
- RDS(on)
- 2mΩ@4.5V;2.5mΩ@2.5V
- Number
- 1 N-channel
- Gate Charge(Qg)
- 171nC@10V
- Gate Threshold Voltage (Vgs(th))
- 1V
- Type
- N-Channel
Packaging & compliance
- RoHS
- RoHS
- Lifecycle
- Active
- Packaging
- Tape & Reel (TR)
- Standard pack
- 5,000 / Reel
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 0.28 g
Overview
Applications
- OR Gate Applications - Servers - DC/DC Power Conversion
Key features
- Trench power MOSFET
- 100% Rg and UIS tested
- Compliant with EU RoHS Directive 2011/65/EU
- RoHS compliant
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
| BSZ009NE2LS5ATMA1-VB#C51822623VBsemi Elec · DFN-8(3x3) | VBsemi Elec | DFN-8(3x3) | 10 | ₹65.66 · 10 in stock | View | |
 | BSZ010NE2LS5ATMA1-VB#C51822624VBsemi Elec · DFN-8(3x3) | VBsemi Elec | DFN-8(3x3) | 112 | ₹60.73 · 112 in stock | View |
 | BSZ031NE2LS5ATMA1-VB#C51822628VBsemi Elec · DFN-8(3x3) | VBsemi Elec | DFN-8(3x3) | 198 | ₹66.40 · 198 in stock | View |
 | CSD16327Q3T-VB#C47993858VBsemi Elec · DFN3x3-8 | VBsemi Elec | DFN3x3-8 | 5 | ₹110.59 · 5 in stock | View |
 | NTTFS4H07NTAG-VB#C52110075VBsemi Elec · DFN-8(3x3) | VBsemi Elec | DFN-8(3x3) | 10 | ₹95.14 · 10 in stock | View |
