VBsemi ElecDatasheet (PDF)

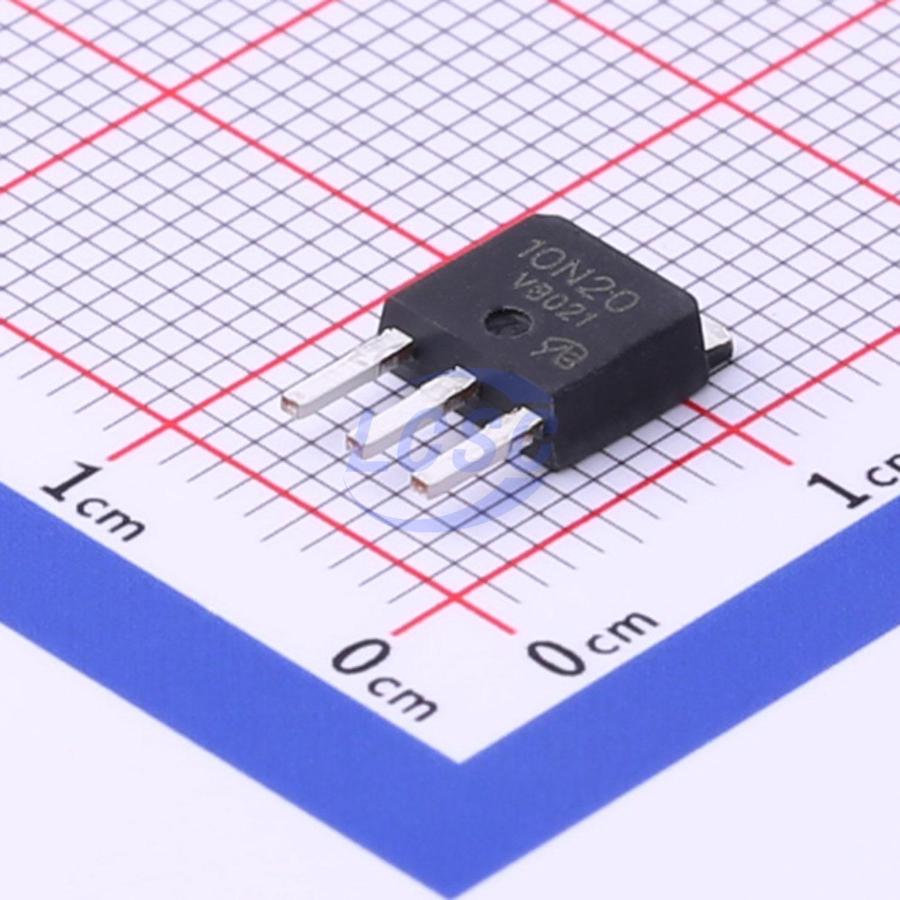

VBZFB10N20
N-Channel 200V 10A 96W Through Hole TO-251
TO-251RoHSActive
MOSFET N-CH 200V 10A TO-251
- Manufacturer
- VBsemi Elec
- Manufacturer part #
- VBZFB10N20
- Store part #
- C700667
- Package / case
- TO-251
- Category
- Single FETs, MOSFETs
- Packaging
- Tube-packed
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
8 in stock
#C700667
Stock & price checked 8 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹68.27 | ₹68.27 |
| 10+ | ₹54.30 | ₹543.00 |
| 30+ | ₹48.32 | ₹1,449.60 |
| 80+ | ₹36.53 | ₹2,922.40 |
| 480+ | ₹33.14 | ₹15,907.20 |
| 800+ | ₹31.14 | ₹24,912.00 |
1 × ₹68.27
₹68.27
excl. GST
₹80.56 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 80 per tube
VBZFB10N20
₹68.27 for 1 + GST
Specifications
- Operating Temperature
- -55℃~+175℃
- Drain to Source Voltage
- 200V
- Current - Continuous Drain(Id)
- 10A
- Ciss-Input Capacitance
- 550pF
- Pd - Power Dissipation
- 96W
- Reverse Transfer Capacitance (Crss)
- 50pF
- Number
- 1 N-channel
- Gate Charge(Qg)
- 34nC@10V
- Gate Threshold Voltage (Vgs(th))
- 4V
Packaging & compliance
- RoHS
- RoHS
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tube-packed
- Standard pack
- 80 / Tube
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 0.7 g
Overview
Applications
- Primary-side switch
Key features
- Trench power MOSFET
- 175°C junction temperature
- PWM optimized
- 100% gate resistance (Rg) tested
- RoHS compliant with directive 2002/95/EC
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | IRFU15N20DPBF-VB#C18794994VBsemi Elec · TO-251 | VBsemi Elec | TO-251 | 7 | ₹208.12 · 7 in stock | View |
 | IRFU4615PBF-VB#C5878816VBsemi Elec · TO-251 | VBsemi Elec | TO-251 | 30 | ₹172.76 · 30 in stock | View |
 | IRFU4620PBF-VB#C7524926VBsemi Elec · TO-251 | VBsemi Elec | TO-251 | 60 | ₹214.22 · 60 in stock | View |
 | VBFB1208N#C480964VBsemi Elec · TO-251 | VBsemi Elec | TO-251 | 18 | ₹173.09 · 18 in stock | View |
| VBFB17R10S#C42412850VBsemi Elec · TO-251 | VBsemi Elec | TO-251 | On request | ₹247.33 · 0 in stock | View | |
