VBsemi ElecDatasheet (PDF)

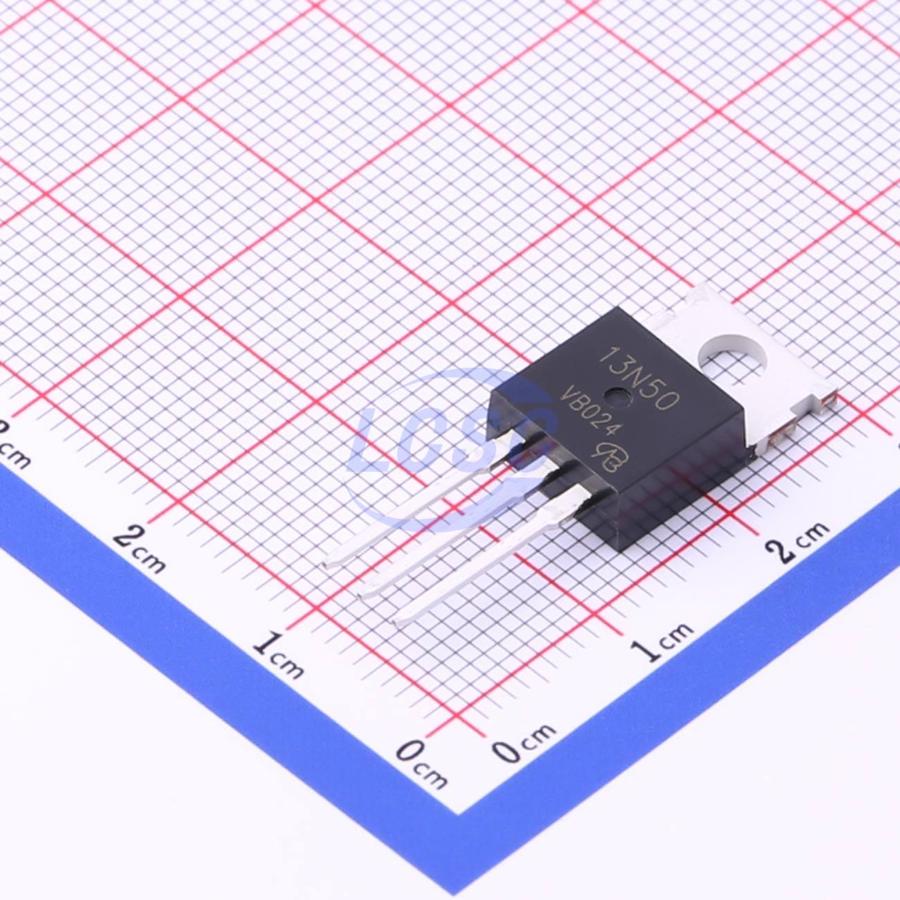

VBZM13N50
N-Channel 500V 8.1A 250W Through Hole TO-220AB
TO-220ABRoHSActive
MOSFET N-CH 500V 8.1A TO-220AB
- Manufacturer
- VBsemi Elec
- Manufacturer part #
- VBZM13N50
- Store part #
- C700702
- Package / case
- TO-220AB
- Category
- Single FETs, MOSFETs
- Packaging
- Tube-packed
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
59 in stock
#C700702
Stock & price checked 5 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹123.37 | ₹123.37 |
| 10+ | ₹100.34 | ₹1,003.40 |
| 50+ | ₹88.60 | ₹4,430.00 |
| 100+ | ₹77.29 | ₹7,729.00 |
| 500+ | ₹70.38 | ₹35,190.00 |
| 1,000+ | ₹66.82 | ₹66,820.00 |
1 × ₹123.37
₹123.37
excl. GST
₹145.58 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 50 per tube
VBZM13N50
₹123.37 for 1 + GST
Specifications
- Operating Temperature
- -55℃~+150℃
- Drain to Source Voltage
- 500V
- Output Capacitance(Coss)
- 290pF
- Current - Continuous Drain(Id)
- 8.1A
- Ciss-Input Capacitance
- 1.91nF
- Pd - Power Dissipation
- 250W
- Reverse Transfer Capacitance (Crss)
- 11pF
- RDS(on)
- 660mΩ@10V
- Number
- 1 N-channel
- Gate Charge(Qg)
- 81nC@10V
- Gate Threshold Voltage (Vgs(th))
- 2V
- Type
- N-Channel
Packaging & compliance
- RoHS
- RoHS
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tube-packed
- Standard pack
- 50 / Tube
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 2.83 g
Overview
Applications
- CPU power supply
- DC-DC converter
Key features
- Lower Gate Charge Qg Results in Simpler Drive Reqirements
- Improved Gate, Avalanche and Dynamic dV/dt Ruggedness
- Fully Characterized Capacitance and Avalanche Voltage
- Compliant to RoHS Directive 2002/95/EC
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | IRF730PBF-VB#C7524993VBsemi Elec · TO-220AB | VBsemi Elec | TO-220AB | 43 | ₹153.20 · 43 in stock | View |
 | STP7NK40Z-VB#C7525107VBsemi Elec · TO-220AB | VBsemi Elec | TO-220AB | 35 | ₹138.77 · 35 in stock | View |
 | SPP04N50C3-VB#C7568942VBsemi Elec · TO-220AB | VBsemi Elec | TO-220AB | 20 | ₹138.77 · 20 in stock | View |
 | IRF840APBF-VB#C18212444VBsemi Elec · TO-220AB | VBsemi Elec | TO-220AB | 5 | ₹142.76 · 5 in stock | View |
 | IRF842PBF-VB#C19188105VBsemi Elec · TO-220AB | VBsemi Elec | TO-220AB | 20 | ₹137.17 · 20 in stock | View |
