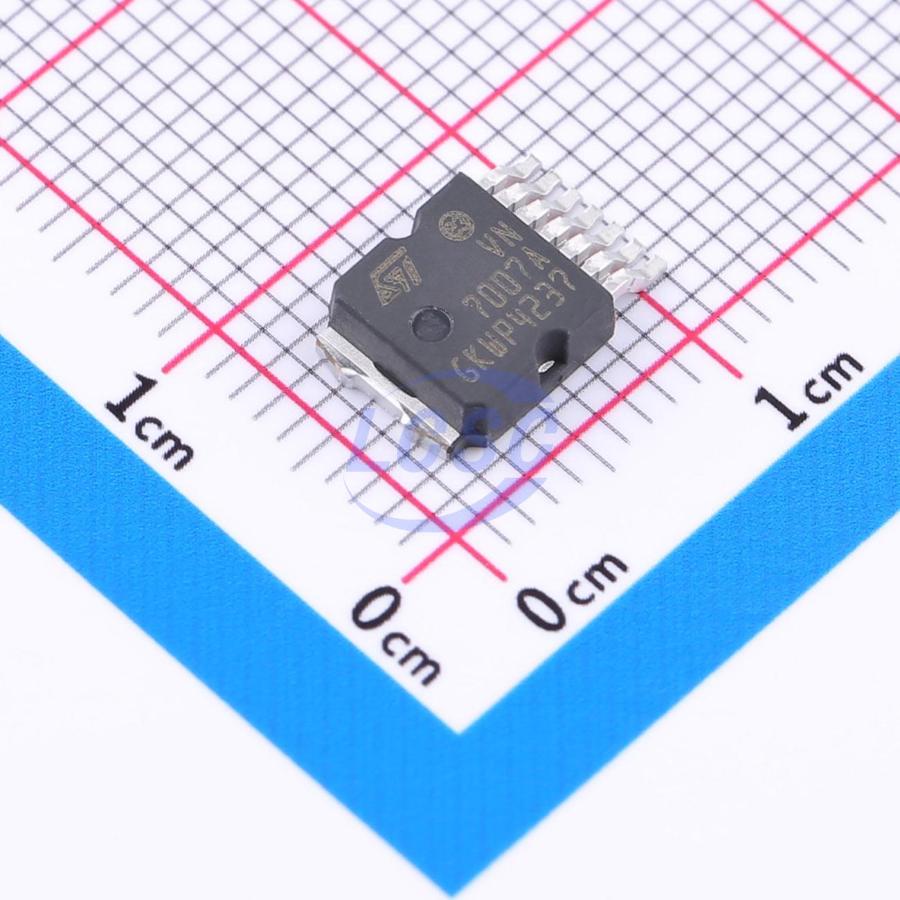

VN7007AHTR
1 Active High 100A High Side Switch OctaPAK-7 Power Distribution Switches, Load Drivers RoHS
OctaPAK-7ROHS3 CompliantActive
High-side driver with CurrentSense analog feedback for automotive applications
- Manufacturer
- ST
- Manufacturer part #
- VN7007AHTR
- Store part #
- C2150197
- Package / case
- OctaPAK-7
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
2,265 in stock
#C2150197
Stock & price checked 3 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹449.97 | ₹449.97 |
| 10+ | ₹386.24 | ₹3,862.40 |
| 30+ | ₹348.44 | ₹10,453.20 |
| 100+ | ₹310.20 | ₹31,020.00 |
| 500+ | ₹292.70 | ₹1,46,350.00 |
| 1,000+ | ₹284.71 | ₹2,84,710.00 |
1 × ₹449.97
₹449.97
excl. GST
₹530.96 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 2,500 per reel
VN7007AHTR
₹449.97 for 1 + GST
Specifications
- Operating Temperature
- -40℃~+150℃
- Features
- Overcurrent Protection;Short-Circuit Protection;Over temperature protection;Overvoltage protection;Under-voltage lockout;Reverse voltage protection;Load dump protection
- number of channels
- 1
- Control Input Logic
- Active High
- Maximum Continuous Current
- 100A
- Operating Voltage
- 4V~28V
- RDS(on)
- 7mΩ
- Type
- High Side Switch
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- Moisture sensitivity
- MSL 3 (168 hours)
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 2,500 / Reel
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 0.001 g
Overview
The device is a single channel high-side driver manufactured using ST proprietary VIPower technology and housed in the Octapak package. The device is designed to drive 12 V automotive grounded loads through a 3 V and 5 V CMOS-compatible interface, providing protection and diagnostics. The device integrates advanced protective functions such as load current limitation, overload active management by power limitation and overtemperature shutdown. A sense enable pin allows OFF-state diagnosis to be disabled during the module low-power mode as well as external sense resistor sharing among similar devices.
Applications
- Automotive smart power distribution
- Glow plugs
- Heating systems
- DC motors
- Relay replacement
- High power resistive and inductive actuators
Key features
- Single channel smart high-side driver with CurrentSense analog feedback
- Very low standby current
- Compatible with 3.0 V and 5 V CMOS outputs
- Diagnostic functions:
- Overload and short to ground (power limitation) indication
- Thermal shutdown indication
- OFF-state open-load detection
- Output short to VCC detection
- Sense enable/ disable
- Protections:
- Undervoltage shutdown
- Overvoltage clamp
- Load current limitation
- Self limiting of fast thermal transients
- Loss of ground and loss of VCC
- Reverse battery
- Electrostatic discharge protection
