STDatasheet (PDF)

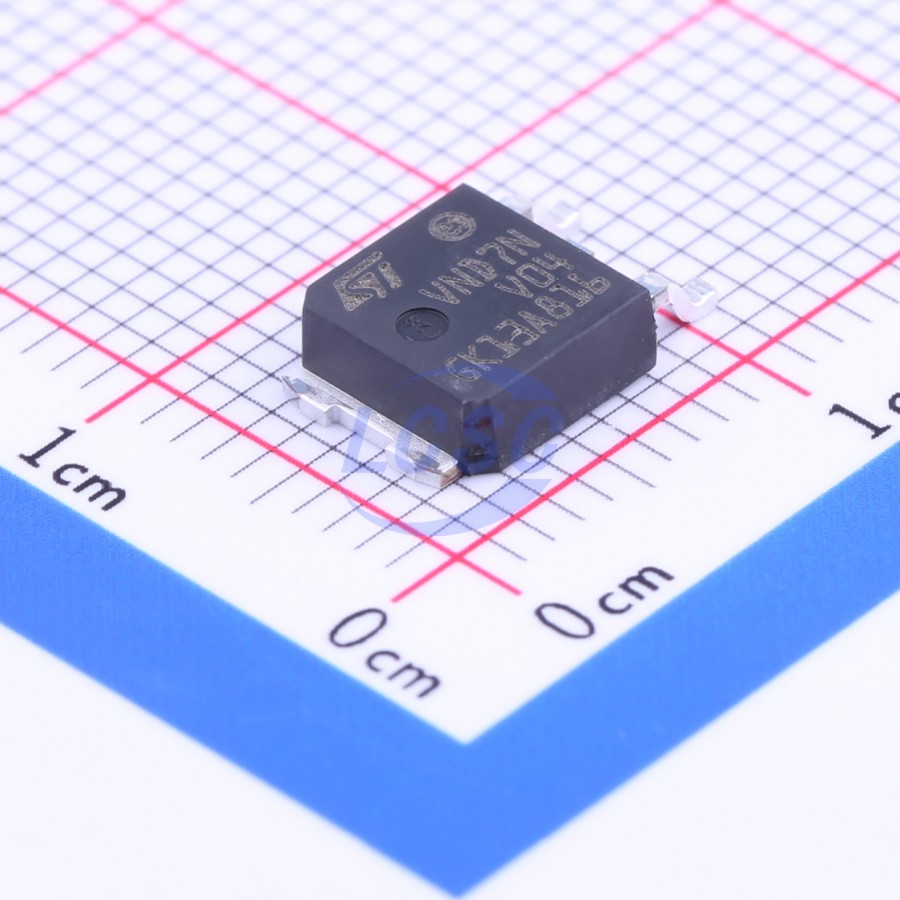

VND7NV04TR-E
1 Active High 6A High Side Switch TO-252-2(DPAK) Power Distribution Switches, Load Drivers RoHS
TO-252-2(DPAK)ROHS3 CompliantActive
fully autoprotected Power MOSFET
- Manufacturer
- ST
- Manufacturer part #
- VND7NV04TR-E
- Store part #
- C155605
- Package / case
- TO-252-2(DPAK)
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
2,471 in stock
#C155605
Stock & price checked 3 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹356.59 | ₹356.59 |
| 10+ | ₹305.75 | ₹3,057.50 |
| 30+ | ₹273.79 | ₹8,213.70 |
| 100+ | ₹241.21 | ₹24,121.00 |
| 500+ | ₹226.43 | ₹1,13,215.00 |
| 1,000+ | ₹220.13 | ₹2,20,130.00 |
1 × ₹356.59
₹356.59
excl. GST
₹420.78 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 2,500 per reel
VND7NV04TR-E
₹356.59 for 1 + GST
Specifications
- Operating Temperature
- -40℃~+150℃
- Features
- Overcurrent Protection;Over temperature protection;Short-Circuit Protection;Overvoltage protection
- number of channels
- 1
- Control Input Logic
- Active High
- Maximum Continuous Current
- 6A
- RDS(on)
- 60mΩ
- Operating Voltage
- 0V~5V
- Type
- High Side Switch
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- Moisture sensitivity
- MSL 3 (168 hours)
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 2,500 / Reel
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 0.475 g
Overview
The VNN7NV04, VNS7NV04, VND7NV04 VND7NV04-1, are monolithic devices designed in VIPower M0-3 Technology, intended for replacement of standard Power MOSFETs from DC up to 50 kHz applications. Built in thermal shutdown, linear current limitation and overvoltage clamp protect the chip in harsh environments. Fault feedback can be detected by monitoring the voltage at the input pin.
Applications
- Synchronous rectification in DC/DC and AC/DC converters — industrial and motor drive applications
Key features
- Linear current limitation
- Thermal shutdown
- Short circuit protection
- Integrated clamp
- Low current drawn from input pin
- Diagnostic feedback through input pin
- ESD protection
- Direct access to the gate of the Power MOSFET (analog driving)
- Compatible with standard Power MOSFET in compliance with the 2002/95/EC European Directive
