STDatasheet (PDF)

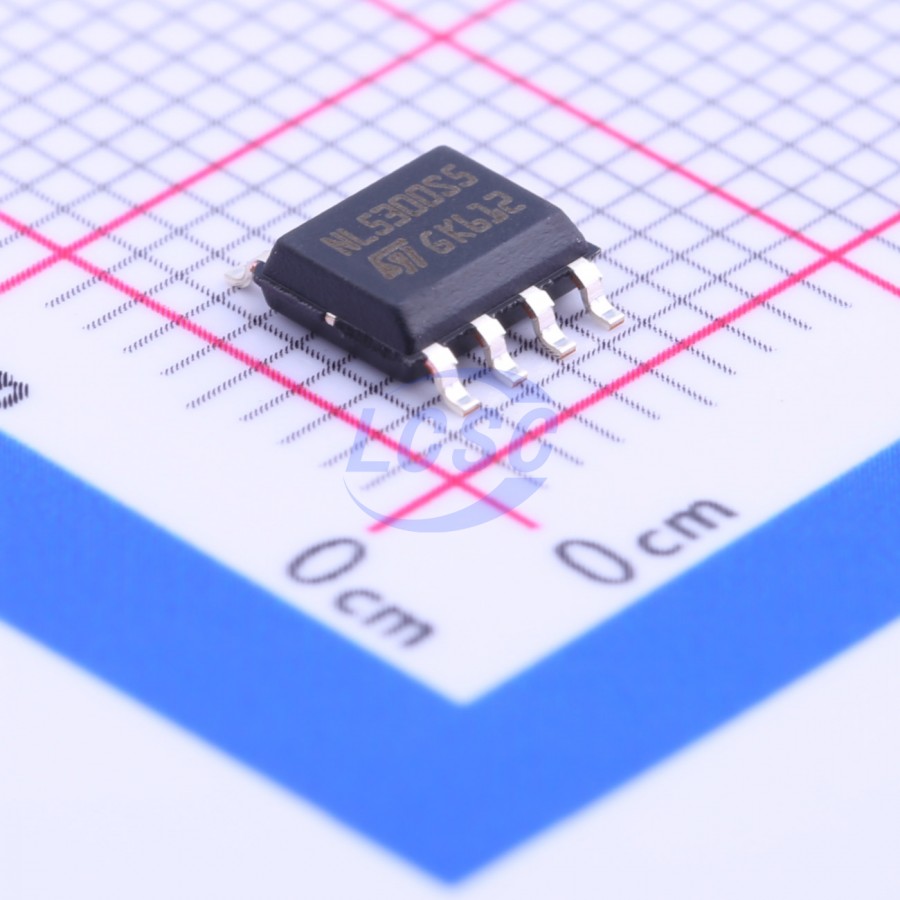

VNL5300S5TR-E
1 Active High 2A Low Side Switch SOIC-8 Power Distribution Switches, Load Drivers RoHS
SOIC-8ROHS3 CompliantActive
- Manufacturer
- ST
- Manufacturer part #
- VNL5300S5TR-E
- Store part #
- C155658
- Package / case
- SOIC-8
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
1,000 in stock
#C155658
Stock & price checked 7 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 5+ | ₹42.51 | ₹212.55 |
| 50+ | ₹33.74 | ₹1,687.00 |
| 150+ | ₹29.99 | ₹4,498.50 |
| 500+ | ₹25.31 | ₹12,655.00 |
| 2,500+ | ₹23.22 | ₹58,050.00 |
| 5,000+ | ₹21.96 | ₹1,09,800.00 |
5 × ₹42.51
₹212.55
excl. GST
₹250.81 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 2,500 per reel
VNL5300S5TR-E
₹212.55 for 5 + GST
Specifications
- Operating Temperature
- -40℃~+150℃
- Features
- Overcurrent Protection;Short-Circuit Protection;Over temperature protection;Overvoltage protection
- number of channels
- 1
- Control Input Logic
- Active High
- Maximum Continuous Current
- 2A
- RDS(on)
- 300mΩ
- Operating Voltage
- 3.5V~5.5V
- Type
- Low Side Switch
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- Moisture sensitivity
- MSL 3 (168 hours)
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 2,500 / Reel
- Sold per
- Piece
- Minimum order
- 5 (multiples of 5)
- Unit weight
- 0.235 g
Overview
The VNL5300S5-E is a monolithic device made using VIPower technology, intended for driving resistive or inductive loads with one side connected to the battery. Built-in thermal shutdown protects the chip from overtemperature and short-circuit. Output current limitation protects the device in an overload condition. In case of long duration overload, the device limits the dissipated power to a safe level up to thermal shutdown intervention. Thermal shutdown, with automatic restart, allows the device to recover normal operation as soon as a fault condition disappears. Fast demagnetization of inductive loads is achieved at turn-off.
Key features
- Drain current: 2 A
- ESD protection
- Overvoltage clamp
- Thermal shutdown
- Current and power limitation
- Very low standby current
- Very low electromagnetic susceptibility
- Compliant with European directive 2002/95/EC Open drain status output
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | BV1LE250EFJ-CE2#C17412894ROHM · SOIC-8 | ROHM | SOIC-8 | 99 | ₹134.22 · 99 in stock | View |
 | VNL5090S5TR-E#C2969812ST · SOIC-8 | ST | SOIC-8 | 33 | ₹233.59 · 33 in stock | View |
 | BTS3080EJ#C3232307Infineon · SOIC-8 | Infineon | SOIC-8 | 167 | ₹147.44 · 167 in stock | View |
| VNL5050S5TR-E#C2149847ST · SO-8 | ST | SO-8 | 6,989 | ₹189.27 · 6,989 in stock | View | |
 | VNL5030S5TR-E#C2149893ST · SO-8 | ST | SO-8 | 45 | ₹96.27 · 45 in stock | View |
