STDatasheet (PDF)

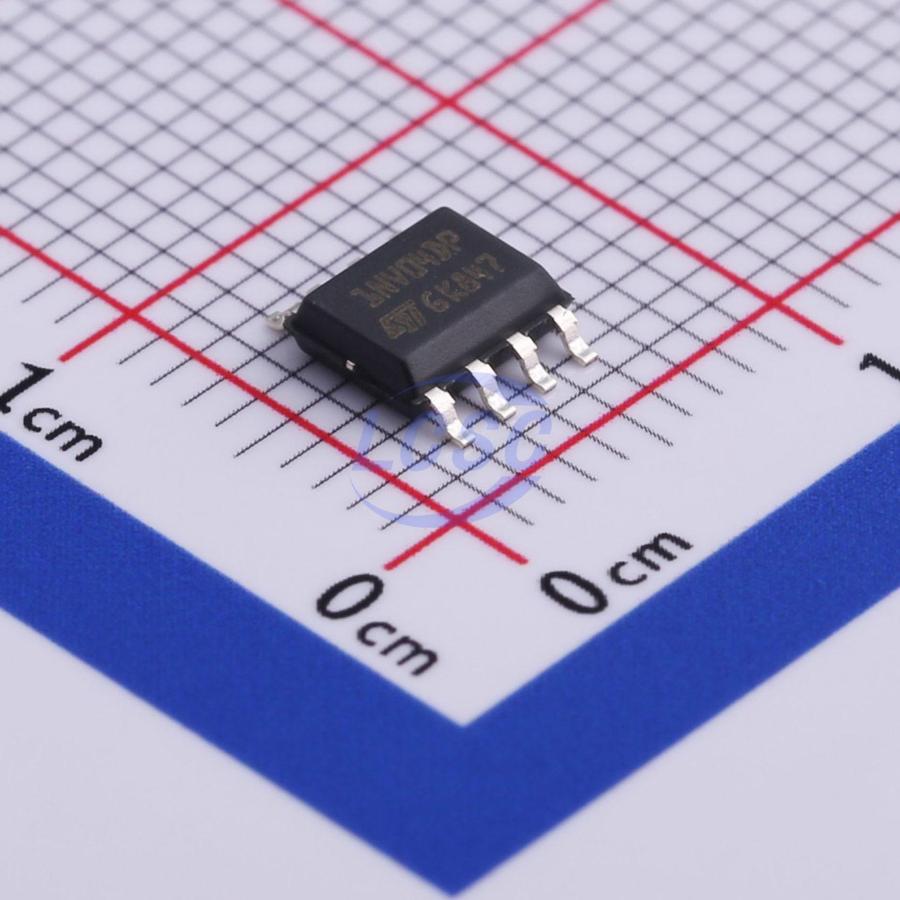

VNS1NV04DPTR-E
2 1.7A SO-8 Power Distribution Switches, Load Drivers RoHS
SO-8ROHS3 CompliantActive
fully autoprotected Power MOSFET
- Manufacturer
- ST
- Manufacturer part #
- VNS1NV04DPTR-E
- Store part #
- C503069
- Package / case
- SO-8
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
7,567 in stock
#C503069
Stock & price checked 3 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹224.49 | ₹224.49 |
| 10+ | ₹190.34 | ₹1,903.40 |
| 30+ | ₹171.42 | ₹5,142.60 |
| 100+ | ₹150.32 | ₹15,032.00 |
| 500+ | ₹140.74 | ₹70,370.00 |
| 1,000+ | ₹136.61 | ₹1,36,610.00 |
1 × ₹224.49
₹224.49
excl. GST
₹264.90 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 2,500 per reel
VNS1NV04DPTR-E
₹224.49 for 1 + GST
Specifications
- Operating Temperature
- -40℃~+150℃
- Features
- Overcurrent Protection;Short-Circuit Protection;Over temperature protection;Overvoltage protection
- number of channels
- 2
- Maximum Continuous Current
- 1.7A
- RDS(on)
- 250mΩ
- Operating Voltage
- 5V
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- Moisture sensitivity
- MSL 3 (168 hours)
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 2,500 / Reel
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 0.12 g
Overview
The VNS1NV04DP-E is a device formed by two monolithic OMNIFET II chips housed in a standard SO-8 package. The OMNIFET II are designed in STMicroelectronics VIPower™ M0-3 technology: they are intended for replacement of standard Power MOSFETs from DC up to 50KHz applications. Built in thermal shutdown, linear current limitation and overvoltage clamp protects the chip in harsh environments. Fault feedback can be detected by monitoring the voltage at the input pin.
Key features
- Linear current limitation
- Thermal shutdown
- Short circuit protection
- Integrated clamp
- Low current drawn from input pin
- Diagnostic feedback through input pin
- ESD protection
- Direct access to the gate of the power mosfet (analog driving)
- Compatible with standard power mosfet
- In compliance with the 2002/95/EC european directive
