STDatasheet (PDF)

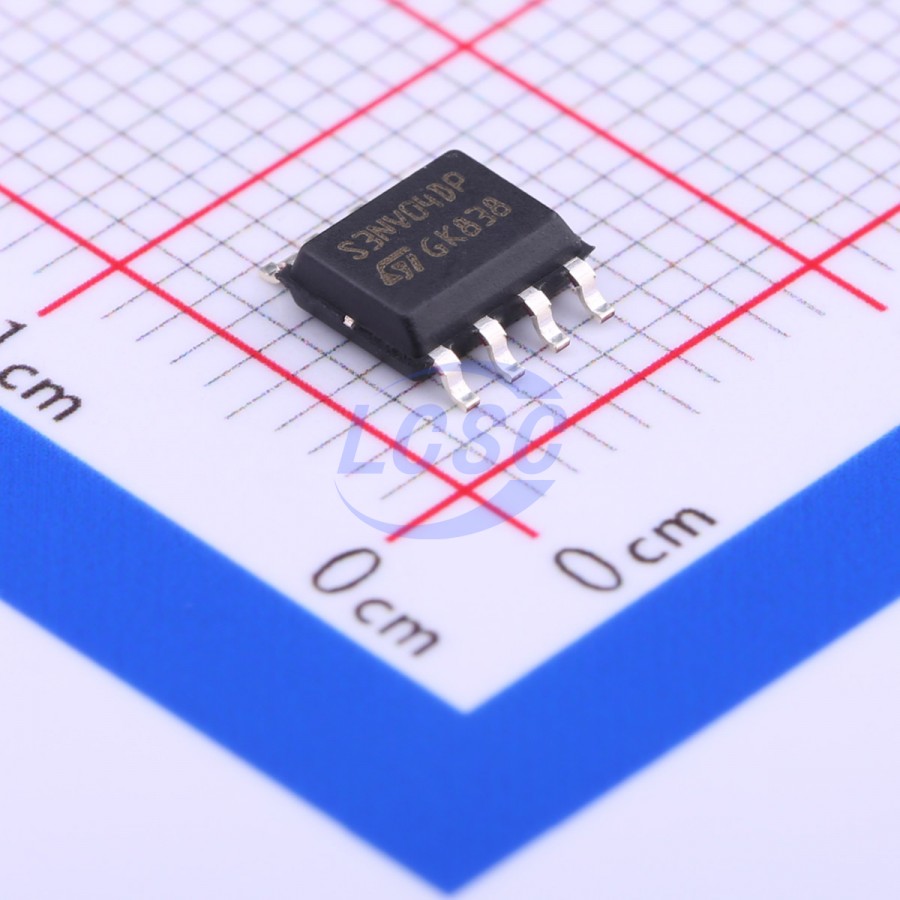

VNS3NV04DPTR-E
2 3.5A SO-8 Power Distribution Switches, Load Drivers RoHS
SO-8ROHS3 CompliantActive
fully autoprotected Power MOSFET
- Manufacturer
- ST
- Manufacturer part #
- VNS3NV04DPTR-E
- Store part #
- C146561
- Package / case
- SO-8
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
3,000 in stock
#C146561
Stock & price checked 6 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹279.34 | ₹279.34 |
| 10+ | ₹233.07 | ₹2,330.70 |
| 30+ | ₹209.83 | ₹6,294.90 |
| 100+ | ₹185.93 | ₹18,593.00 |
| 500+ | ₹175.09 | ₹87,545.00 |
| 1,000+ | ₹170.52 | ₹1,70,520.00 |
1 × ₹279.34
₹279.34
excl. GST
₹329.62 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 2,500 per reel
VNS3NV04DPTR-E
₹279.34 for 1 + GST
Specifications
- Operating Temperature
- -40℃~+150℃
- Features
- Overcurrent Protection;Short-Circuit Protection;Over temperature protection;Overvoltage protection
- number of channels
- 2
- Maximum Continuous Current
- 3.5A
- RDS(on)
- 120mΩ
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- Moisture sensitivity
- MSL 3 (168 hours)
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 2,500 / Reel
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 0.244 g
Overview
The VNS3NV04DP-E device is made up of two monolithic chips (OMNIFET II) housed in a standard SO-8 package. The OMNIFET II is designed using VIPower M0-3 technology and is intended for replacement of standard Power MOSFETs in up to 50 kHz DC applications. Built-in thermal shutdown, linear current limitation and overvoltage clamp protect the chip in harsh environments. Fault feedback can be detected by monitoring voltage at the input pin
Key features
- ECOPACK: lead free and RoHS compliant Automotive Grade: compliance with AEC guidelines
- Linear current limitation
- Thermal shutdown
- Short circuit protection
- Integrated clamp
- Low current drawn from input pin
- Diagnostic feedback through input pin
- ESD protection Direct access to the gate of the Power MOSFET (analog driving)
- Compatible with standard Power MOSFET
