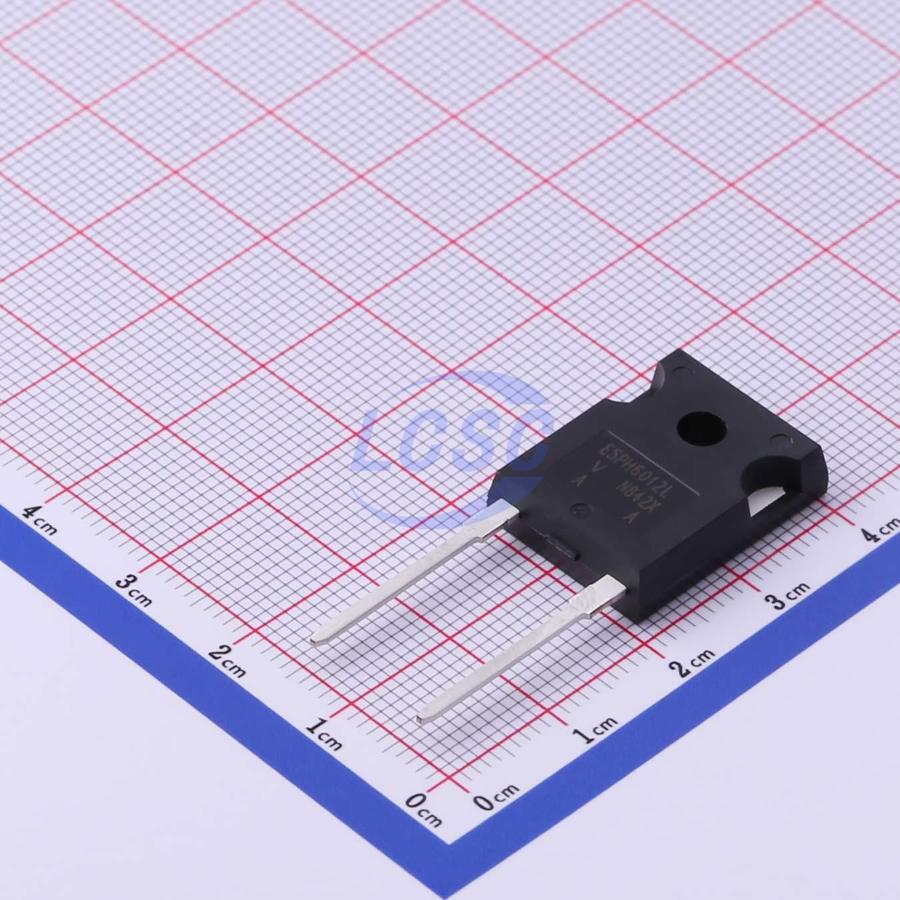

VS-E5PH6012L-N3
130ns 1 Independent 1.2kV 1.9V@60A 60A TO-247AD-2 Single Diodes RoHS
Diode 1.2kV 60A TO-247AD-2
- Manufacturer
- VISHAY
- Manufacturer part #
- VS-E5PH6012L-N3
- Store part #
- C511502
- Package / case
- TO-247AD-2
- Category
- Single Diodes
- Packaging
- Tube-packed
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
257 in stock
#C511502
Stock & price checked 10 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹400.70 | ₹400.70 |
| 10+ | ₹343.15 | ₹3,431.50 |
| 25+ | ₹284.06 | ₹7,101.50 |
| 100+ | ₹247.00 | ₹24,700.00 |
| 500+ | ₹230.22 | ₹1,15,110.00 |
| 1,000+ | ₹223.02 | ₹2,23,020.00 |
1 × ₹400.70
₹400.70
excl. GST
₹472.83 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 25 per tube
VS-E5PH6012L-N3
₹400.70 for 1 + GST
Specifications
- Reverse Recovery Time (trr)
- 130ns
- Operating Junction Temperature Range
- -55℃~+175℃
- Diode Configuration
- 1 Independent
- Voltage - DC Reverse (Vr) (Max)
- 1.2kV
- Voltage - Forward(Vf@If)
- 1.9V@60A
- Reverse Leakage Current (Ir)
- 50uA@1.2kV
- Non-Repetitive Peak Forward Surge Current
- 460A
- Current - Rectified
- 60A
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tube-packed
- Standard pack
- 25 / Tube
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 7.825 g
Overview
Featuring a unique combination of low conduction and switching losses, this rectifier is the right choice for high frequency converters, both soft switched / resonant. Specifically designed to improve efficiency of PFC and output rectification stages of EV / HEV battery charging stations, booster stage of solar inverters and UPS applications, these devices are perfectly matched to operate with MOSFETs or high speed IGBTs.
Applications
- High frequency converters, both soft switched / resonant
- PFC and output rectification stages of EV / HEV battery charging stations
- Booster stage of solar inverters
- UPS applications
Key features
- Hyperfast and optimized Qrr
- Best in class forward voltage drop and switching losses trade off
- RoHS COMPLIANT
- Optimized for high speed operation
- HALOGEN FREE
- 175 ℃ maximum operating junction temperature
- Polyimide passivation
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | VS-E5PX6012L-N3#C413479VISHAY · TO-247AD-2 | VISHAY | TO-247AD-2 | 2,300 | ₹390.44 · 2,300 in stock | View |
 | ESTF75SS120US#C19724669MASPOWER · TO-247-2L | MASPOWER | TO-247-2L | 43 | ₹340.51 · 43 in stock | View |
 | IDWD140E120D7XKSA1#C22443486Infineon · TO-247-2 | Infineon | TO-247-2 | 10 | ₹993.65 · 10 in stock | View |
 | SPT120U120SK2#C52741754SPTECH · TO-247-2 | SPTECH | TO-247-2 | 29 | ₹396.13 · 29 in stock | View |
 | DSEP60-12AR#C7420389Littelfuse/IXYS · ISOPLUS-247 | Littelfuse/IXYS | ISOPLUS-247 | 16 | ₹1,348.98 · 16 in stock | View |
