VISHAYDatasheet (PDF)

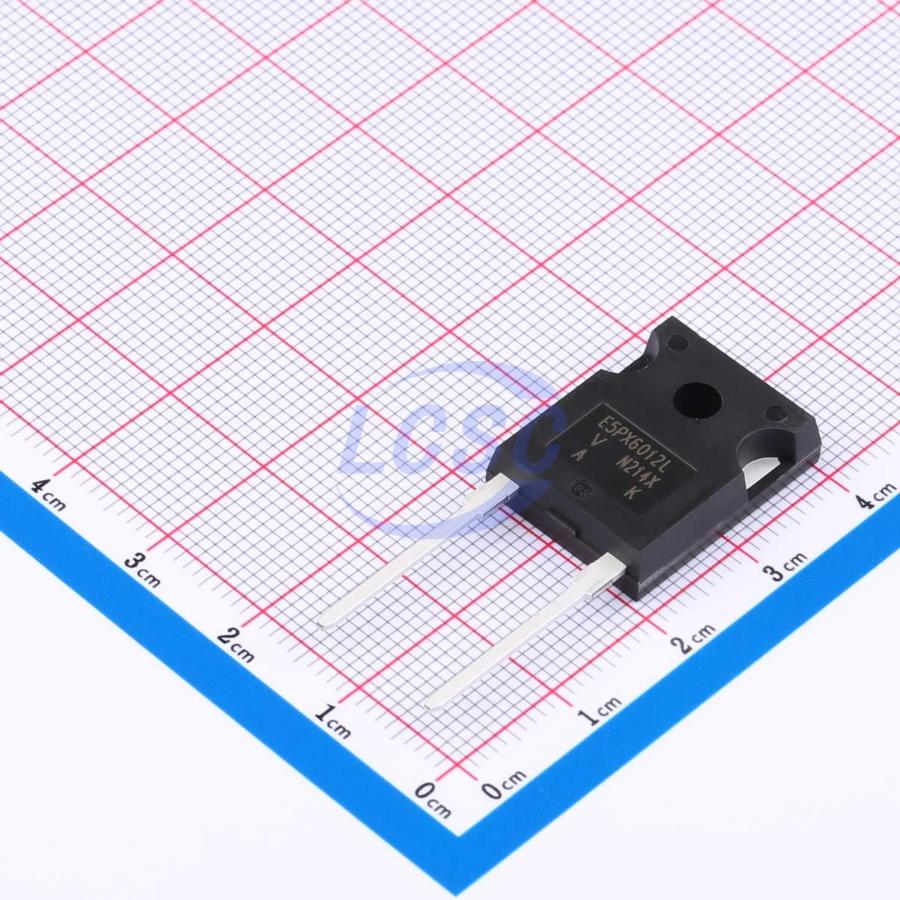

VS-E5PX6012L-N3
120ns 1.2kV 1 Independent 3.15V@60A 60A TO-247AD-2 Single Diodes RoHS
TO-247AD-2ROHS3 CompliantActive
Diode 1200V 60A TO-247AD-2
- Manufacturer
- VISHAY
- Manufacturer part #
- VS-E5PX6012L-N3
- Store part #
- C413479
- Package / case
- TO-247AD-2
- Category
- Single Diodes
- Packaging
- Tube-packed
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
2,300 in stock
#C413479
Stock & price checked 13 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹390.44 | ₹390.44 |
| 10+ | ₹331.60 | ₹3,316.00 |
| 25+ | ₹294.90 | ₹7,372.50 |
| 100+ | ₹257.11 | ₹25,711.00 |
| 500+ | ₹239.95 | ₹1,19,975.00 |
| 1,000+ | ₹232.57 | ₹2,32,570.00 |
1 × ₹390.44
₹390.44
excl. GST
₹460.72 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 25 per tube
VS-E5PX6012L-N3
₹390.44 for 1 + GST
Specifications
- Reverse Recovery Time (trr)
- 120ns
- Operating Junction Temperature Range
- -55℃~+175℃
- Voltage - DC Reverse (Vr) (Max)
- 1.2kV
- Diode Configuration
- 1 Independent
- Voltage - Forward(Vf@If)
- 3.15V@60A
- Reverse Leakage Current (Ir)
- 50uA@1.2kV
- Non-Repetitive Peak Forward Surge Current
- 420A
- Current - Rectified
- 60A
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tube-packed
- Standard pack
- 25 / Tube
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 7.168 g
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | VS-E5PH6012L-N3#C511502VISHAY · TO-247AD-2 | VISHAY | TO-247AD-2 | 257 | ₹400.70 · 257 in stock | View |
 | IDWD140E120D7XKSA1#C22443486Infineon · TO-247-2 | Infineon | TO-247-2 | 10 | ₹993.65 · 10 in stock | View |
 | STTH6012W-SPT#C49863277SPTECH · TO-247-2 | SPTECH | TO-247-2 | 50 | ₹335.72 · 50 in stock | View |
 | SPT60S120SK2#C49863292SPTECH · TO-247-2 | SPTECH | TO-247-2 | 10 | ₹312.86 · 10 in stock | View |
 | MUR60120#C49863316SPTECH · TO-247-2 | SPTECH | TO-247-2 | 121 | ₹279.63 · 121 in stock | View |
