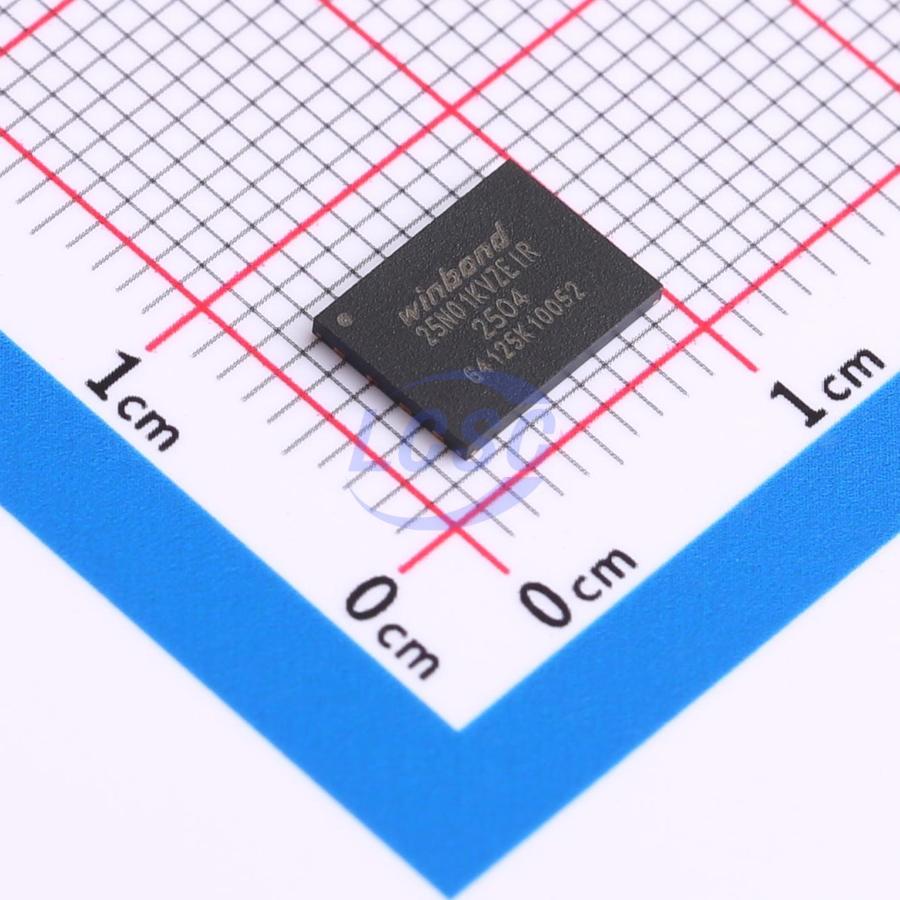

W25N01KVZEIR
1Gbit 2.7V~3.6V 104MHz SPI WSON-8(8x6) Memory RoHS
3V 1G-BIT SLC QSPI NAND FLASH MEMORY WITH DUAL/QUAD SPI
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
22,784 in stock
#C22472329
Stock & price checked 3 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 8+ | ₹876.88 | ₹7,015.04 |
| 80+ | ₹768.17 | ₹61,453.60 |
| 480+ | ₹698.81 | ₹3,35,428.80 |
| 960+ | ₹631.63 | ₹6,06,364.80 |
8 × ₹876.88
₹7,015.04
excl. GST
₹8,277.75 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 480 per tray
W25N01KVZEIR
₹7,015.04 for 8 + GST
Specifications
- Operating Temperature
- -40℃~+85℃
- Features
- Write enable latch;Hardware reset function;Software reset function;Software write protection function;Hardware write protection function;ECC error correction function;OTP region write protection and lock function
- Memory Size
- 1Gbit
- Voltage - Supply
- 2.7V~3.6V
- Program / Erase Cycles
- 60,000 Cycles
- Clock Frequency
- 104MHz
- Data Retention - TDR (Year)
- 10 years
- Block Erase Time(tBE)
- 2ms
- Page Programming Time (Tpp)
- 700us
- Interface
- SPI
- Standby Supply Current
- 10uA
Packaging & compliance
- RoHS
- ROHS Compliant
- Lifecycle
- Active
- ECCN
- 3A991
- Packaging
- Tray
- Standard pack
- 480 / Tray
- Sold per
- Piece
- Minimum order
- 8 (multiples of 8)
- Unit weight
- 0.11 g
Overview
The W25N01KV (1Gb) SLC QspiNAND Flash provides a storage solution for systems with limited space, pin count, and power. The W25N QspiNAND series combines the popular SPI interface with traditional high-density NAND non-volatile storage. They are ideal for shadowing code to RAM. The device operates from a single 2.7V to 3.6V supply, with an active current as low as 25mA and a standby current as low as 10μA.
Key features
- 1Gb (128MB) SLC NAND Flash
- SPI
- Standard SPI: CLK, /CS, DI, DO, /WP, /HOLD
- Dual SPI: CLK, /CS, IO0, IO1
- Quad SPI: CLK, /CS, IO0, IO1, IO2, IO3
- On-chip ECC engine
- 128KB erasable block architecture
- Fast read performance
- Standard SPI: up to 104MHz
- Dual SPI: up to 104MHz
- Quad SPI: up to 104MHz
- Low power consumption
- Wide operating temperature range: -40℃ ~ +85℃
- Small, thin package
- 8-pad WSON 6x5mm
- 8-pad WSON 8x6mm
