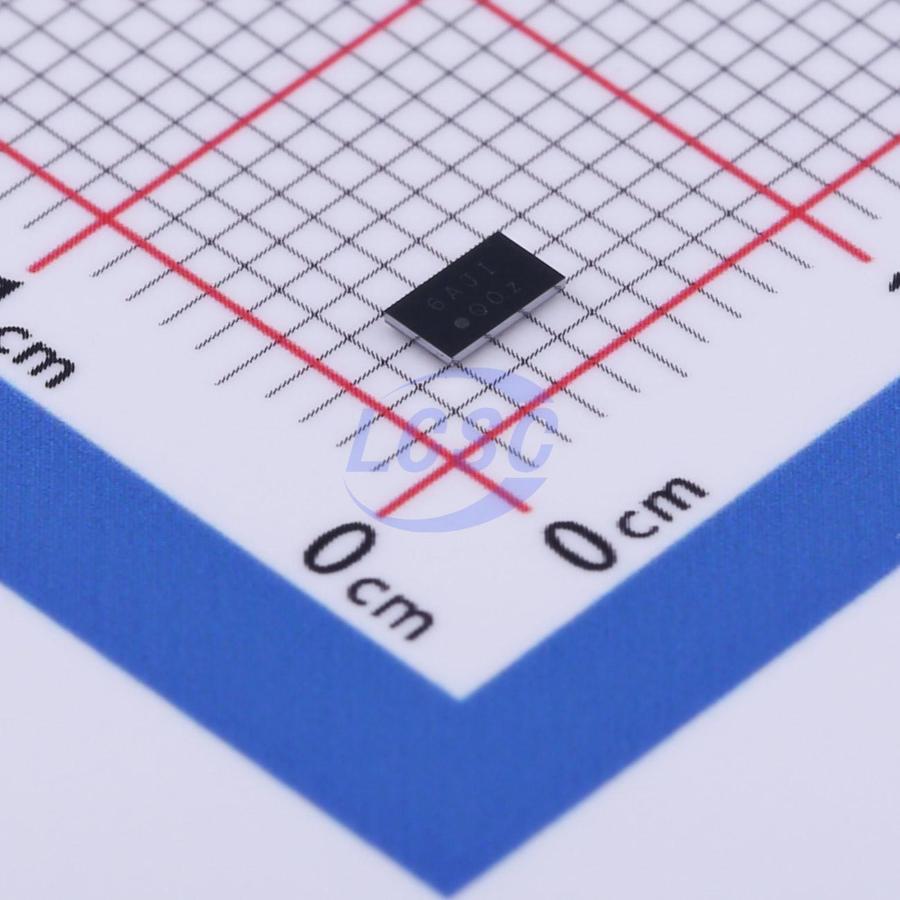

Winbond
W25Q64JWBYIQ
64Mbit 1.7V~1.95V 133MHz SPI WLCSP-12 Memory RoHS
WLCSP-12ROHS CompliantActive
SPI Flash Memory with Dual, Quad SPI
Datasheet (PDF)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
4,280 in stock
#C2691929
Stock & price checked 7 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹261.45 | ₹261.45 |
| 10+ | ₹227.36 | ₹2,273.60 |
| 30+ | ₹208.69 | ₹6,260.70 |
| 100+ | ₹187.40 | ₹18,740.00 |
| 500+ | ₹178.06 | ₹89,030.00 |
| 1,000+ | ₹173.72 | ₹1,73,720.00 |
1 × ₹261.45
₹261.45
excl. GST
₹308.51 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 2,000 per reel
W25Q64JWBYIQ
₹261.45 for 1 + GST
Specifications
- Operating Temperature
- -40℃~+105℃
- Features
- Write enable latch;Power-on reset;Hardware write protection;Software write protection;Absolute write protection
- Memory Size
- 64Mbit
- Voltage - Supply
- 1.7V~1.95V
- Program / Erase Cycles
- 100,000 cycles
- Clock Frequency
- 133MHz
- Data Retention - TDR (Year)
- 20 Years
- Page Programming Time (Tpp)
- 3ms
- Standby Supply Current
- 10uA
- Interface
- SPI
Packaging & compliance
- RoHS
- ROHS Compliant
- Lifecycle
- Active
- Moisture sensitivity
- MSL 3 (168 hours)
- Packaging
- Tape & Reel (TR)
- Standard pack
- 2,000 / Reel
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 0.166 g
Overview
The W25Q64JW (64M-bit) Serial Flash memory provides a storage solution for systems with limited space, pins and power. The 25Q series offers flexibility and performance well beyond ordinary Serial Flash devices. They are ideal for code shadowing to RAM, executing code directly from Dual/Quad SPI (XIP) and storing voice, text and data. The device operates on 1.7V to 1.95V power supply with current consumption as low as 1μ.
