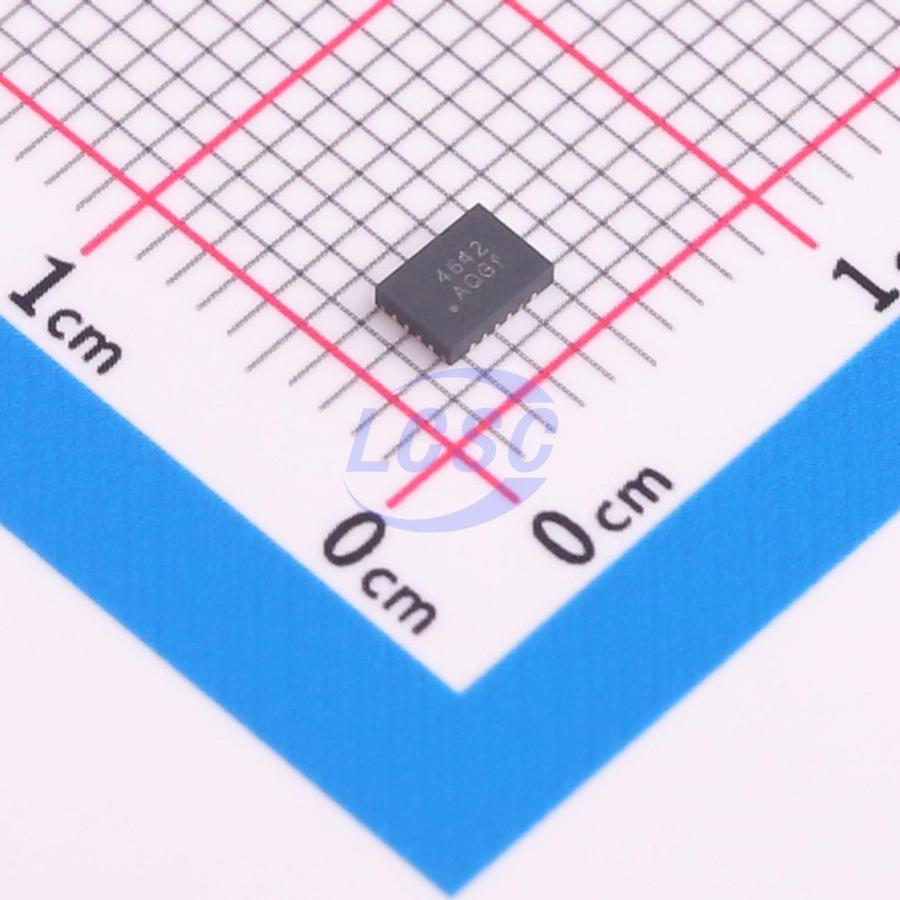

WILLSEMI

WAS4642Q-24/TR

3 13Ω@3.0V 1.5V~5.5V QFN2534-24L Analog Switches, Multiplexers, Demultiplexers

QFN2534-24LRoHSActive

Manufacturer: WILLSEMI
Manufacturer part #: WAS4642Q-24/TR
Store part #: C2931304
Package / case: QFN2534-24L
Category: Analog Switches, Multiplexers, Demultiplexers
Packaging: Tape & Reel (TR)

Datasheet (PDF)

Every Order Guarantee

100% Authentic · 30-Day Return or Replacement · policy

2,790 in stock

#C2931304

Stock & price checked 6 days ago

Quantity	Unit price	Pack price
5+	₹32.53	₹162.65
50+	₹28.63	₹1,431.50
150+	₹26.96	₹4,044.00
500+	₹24.87	₹12,435.00
2,500+	₹23.95	₹59,875.00
5,000+	₹23.39	₹1,16,950.00

Quantity (min 5, multiples of 5)

5 × ₹32.53

₹162.65

excl. GST

₹191.93 incl. 18% GST

Need volume or a scheduled delivery? Request a quote

Dispatch in 15-18 working days
GST invoice with every order
Standard pack: 5,000 per reel

WAS4642Q-24/TR

₹162.65 for 5 + GST

Need this with the rest of your board? Upload the BOM — we price every line.Upload BOM

Specifications

Features: Channel combination connection
Operating Temperature: -40℃~+85℃
Number of Channels: 3
Ron: 13Ω@3.0V
Voltage - Supply: 1.5V~5.5V
Propagation Delay: 200ps
Con: 4pF

Packaging & compliance

RoHS: RoHS
Lifecycle: Active
Moisture sensitivity: MSL 3 (168 hours)
Packaging: Tape & Reel (TR)
Standard pack: 5,000 / Reel
Sold per: Piece
Minimum order: 5 (multiples of 5)
Unit weight: 0.034 g

Overview

WAS4642Q is a high-speed analog switch. Its pinout is designed to simplify differential signal routing and is configured as a triple-pole double-throw switch. The device is optimized for switching between two MIPI devices (e.g., a camera or LCD display and an on-board MAP). WAS4642Q complies with MIPI specification requirements. Its low-capacitance design allows the device to switch signals at frequencies exceeding 2.5GHz. Superior inter-channel crosstalk rejection minimizes interference and enables transmission of high-speed differential and single-ended signals as described in the MIPI specification. The device is available in a QFN2534-24L package. Standard products are lead-free and halogen-free.
