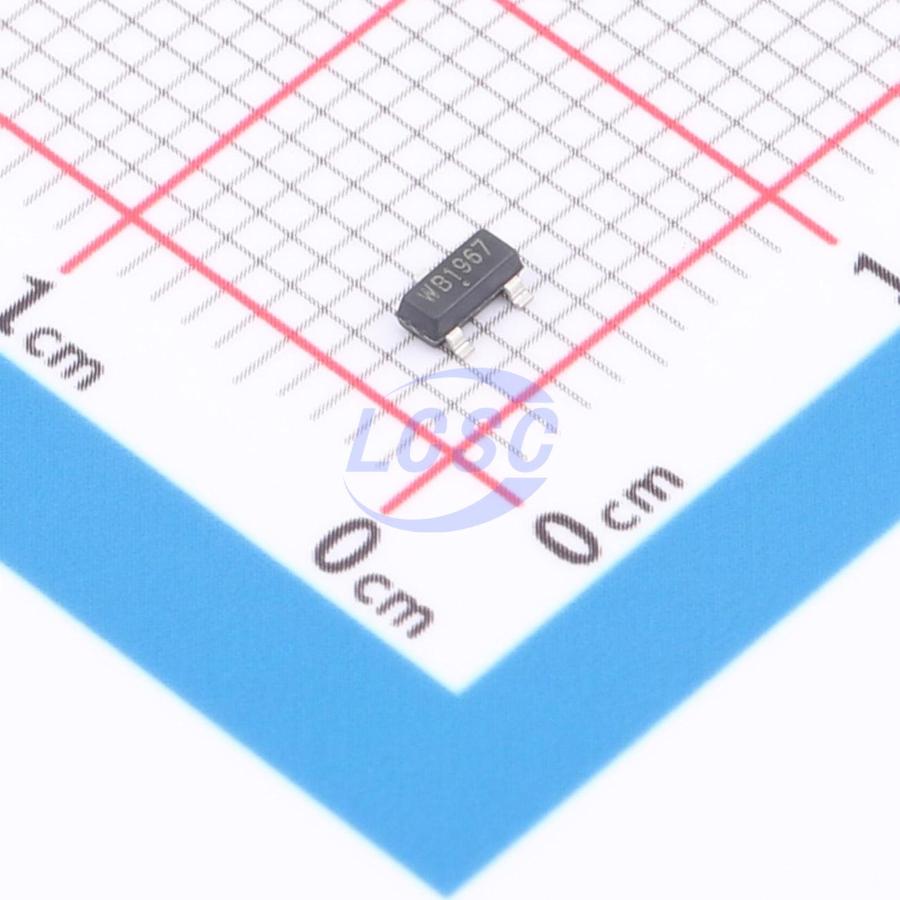

waferbest

WB1967J

1 1.7A High Side Switch SOT-23 Power Distribution Switches, Load Drivers

SOT-23RoHSActive

Manufacturer: waferbest
Manufacturer part #: WB1967J
Store part #: C51933789
Package / case: SOT-23
Category: Power Distribution Switches, Load Drivers
Packaging: Tape & Reel (TR)

Datasheet (PDF)

Every Order Guarantee

100% Authentic · 30-Day Return or Replacement · policy

5,820 in stock

#C51933789

Stock & price checked 3 days ago

Quantity	Unit price	Pack price
10+	₹8.12	₹81.20
100+	₹6.46	₹646.00
300+	₹5.62	₹1,686.00
3,000+	₹4.99	₹14,970.00
6,000+	₹4.50	₹27,000.00
9,000+	₹4.25	₹38,250.00

Quantity (min 10, multiples of 10)

10 × ₹8.12

₹81.20

excl. GST

₹95.82 incl. 18% GST

Need volume or a scheduled delivery? Request a quote

Dispatch in 15-18 working days
GST invoice with every order
Standard pack: 3,000 per reel

WB1967J

₹81.20 for 10 + GST

Need this with the rest of your board? Upload the BOM — we price every line.Upload BOM

Specifications

Operating Temperature: -40℃~+85℃
Features: Overcurrent Protection;Overvoltage protection;Under-voltage lockout;Over temperature protection;Short-Circuit Protection;Integrated charge pump
number of channels: 1
Maximum Continuous Current: 1.7A
Operating Voltage: 3.6V~38V
RDS(on): 180mΩ
Type: High Side Switch

Packaging & compliance

RoHS: RoHS
Lifecycle: Active
Moisture sensitivity: MSL 3 (168 hours)
Packaging: Tape & Reel (TR)
Standard pack: 3,000 / Reel
Sold per: Piece
Minimum order: 10 (multiples of 10)
Unit weight: 0.056 g

Overview

This device is a 38V overvoltage protection device with an on-resistance of 180mΩ. It features an internal overvoltage threshold of 6.1V and an internal overcurrent threshold of 1.7A. It consists of a charge pump, a power MOSFET, a voltage reference, a gate driver, and logic and protection modules. The device responds extremely fast to input surges, capable of turning off the switch within 0.1μs and withstanding voltage spikes up to 20V. The package type is SOT23.
