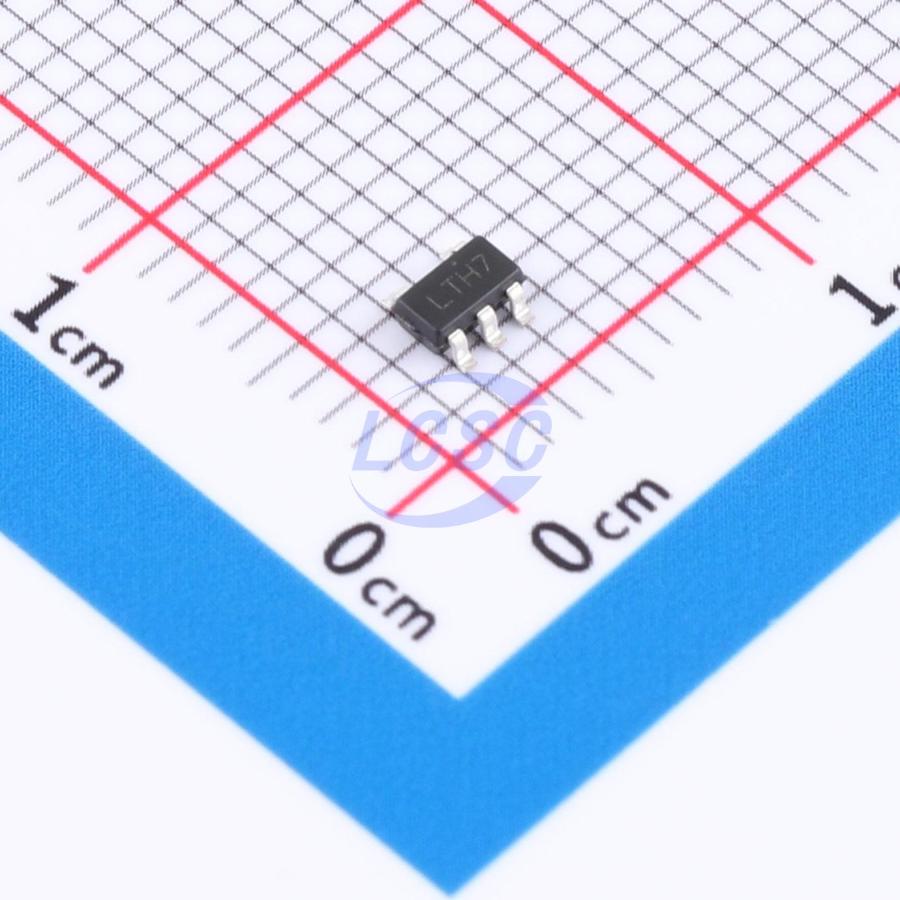

WS4054
Battery Charging IC Lithium Battery SOT-23-5L
Lithium battery charging chip
- Manufacturer
- Worldsemi
- Manufacturer part #
- WS4054
- Store part #
- C42417649
- Package / case
- SOT-23-5L
- Category
- Battery Management
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
2,150 in stock
#C42417649
Stock & price checked 3 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 50+ | ₹3.23 | ₹161.50 |
| 500+ | ₹2.65 | ₹1,325.00 |
| 3,000+ | ₹2.32 | ₹6,960.00 |
| 6,000+ | ₹2.12 | ₹12,720.00 |
| 24,000+ | ₹1.94 | ₹46,560.00 |
| 51,000+ | ₹1.85 | ₹94,350.00 |
50 × ₹3.23
₹161.50
excl. GST
₹190.57 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
WS4054
₹161.50 for 50 + GST
Specifications
- Operating Temperature
- -40℃~+85℃
- Quiescent Current
- 50uA
- 0V Battery Charge
- Not supported
- Type of Battery
- Lithium Battery
- Operating Voltage
- 4.25V~6.5V
- Features
- Constant current charging;Constant voltage charging;Trickle charging;Automatic recharge;Charge termination;Programmable charging current;Under-voltage lockout
- The Chip Type
- Charging IC
- Charge Current - Max
- 535mA
Packaging & compliance
- RoHS
- RoHS
- Lifecycle
- Active
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 50 (multiples of 50)
- Unit weight
- 0.041 g
Overview
WS4054 is a complete single-cell lithium-ion battery CC/CV linear power management IC. Its slim profile and compact package make it ideal for portable applications. Specifically designed to comply with USB power supply specifications. Thanks to the internal MOSFET architecture, no external sense resistors or blocking diodes are required. During high power operation or elevated ambient temperatures, thermal feedback automatically reduces the charge current to limit die temperature.
Applications
- Mobile phones, tablets, MP3 players
- Bluetooth applications
Key features
- Programmable charge current up to 500mA
- No MOSFET, sense resistor, or blocking diode required
- Compact form factor for complete linear charge management of Li-ion batteries
- CC/CV operation with thermal regulation for maximum charging efficiency without risk of overheating
- Single-cell Li-ion battery management via USB interface
- Preset charge voltage: 4.2V ±1%
- Trickle charge threshold voltage: 2.9V
- ESD (HBM) > 7KV
