WILLSEMIDatasheet (PDF)

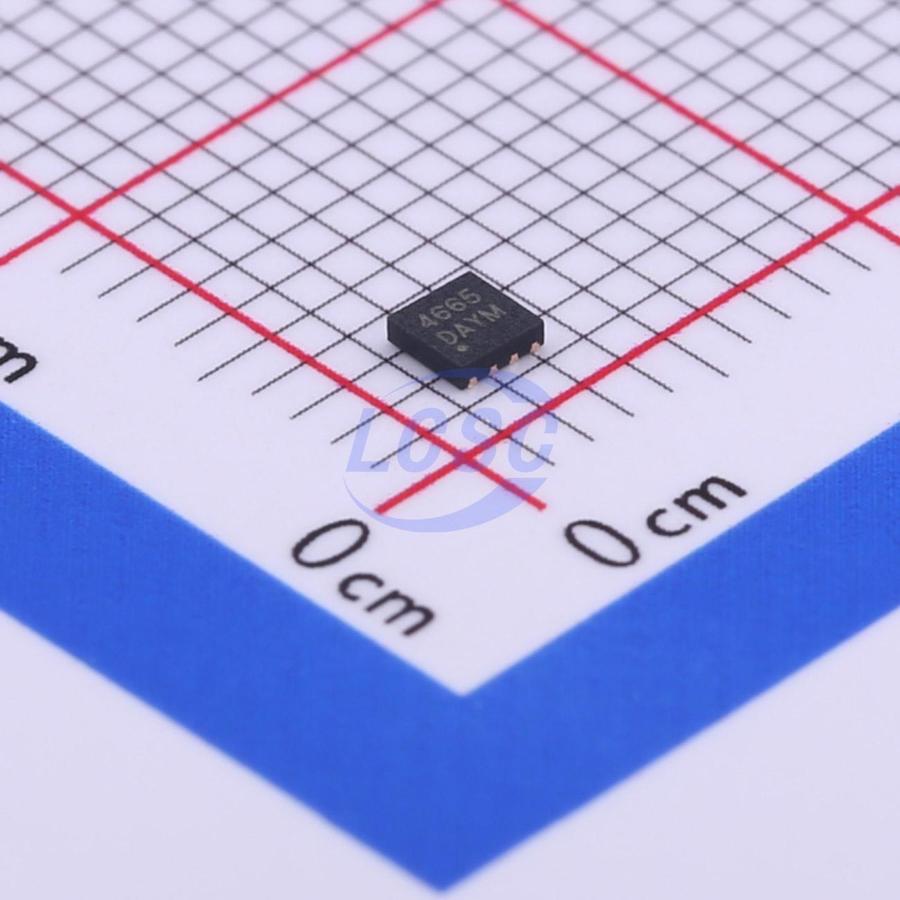

WS4665D-8/TR
1 6A Active High Load Switch WDFN-8(2x2) Power Distribution Switches, Load Drivers
WDFN-8(2x2)RoHSActive
6A, 14mΩ Load Switch with Quick Output Discharge and Adjustable Rise Time
- Manufacturer
- WILLSEMI
- Manufacturer part #
- WS4665D-8/TR
- Store part #
- C429740
- Package / case
- WDFN-8(2x2)
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
2,410 in stock
#C429740
Stock & price checked 4 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 5+ | ₹52.85 | ₹264.25 |
| 50+ | ₹42.12 | ₹2,106.00 |
| 150+ | ₹37.52 | ₹5,628.00 |
| 500+ | ₹31.78 | ₹15,890.00 |
| 3,000+ | ₹29.23 | ₹87,690.00 |
| 6,000+ | ₹27.69 | ₹1,66,140.00 |
5 × ₹52.85
₹264.25
excl. GST
₹311.82 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
WS4665D-8/TR
₹264.25 for 5 + GST
Specifications
- Operating Temperature
- -40℃~+85℃
- Features
- Soft-start;Output discharge function
- number of channels
- 1
- Maximum Continuous Current
- 6A
- Control Input Logic
- Active High
- Operating Voltage
- 800mV~5.5V
- RDS(on)
- 14mΩ
- Type
- Load Switch
Packaging & compliance
- RoHS
- RoHS
- Lifecycle
- Active
- Moisture sensitivity
- MSL 3 (168 hours)
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 5 (multiples of 5)
- Unit weight
- 0.032 g
Overview
The WS4665 is a single channel load switch that provides configurable rise time to minimize inrush current. The device contains an N-channel MOSFET that can operate over an input voltage range of 0.8V to 5.5V and can support a maximum continuous current of 6A. The switch is controlled by an on/off input (ON), which is capable of interfacing directly with low-voltage control signals. In the WS4665, a 230 Ω on-chip load resistor is added for quick output discharge when switch is turned off. The WS4665 is available in a small, space-saving 2.00mm x 2.00mm 8-pin DFN package. Standard Products are Pb-free and halogen-free.
Applications
- Ultrabook
- Notebooks/Netbooks
- Tablet PC Consumer Electronics
- Set-top Boxes/Residential Gateways Telecom Systems
Key features
- Integrated Single Channel Load Switch
- Input Voltage Range: 0.8V to 5.5V
- Ultra-Low On Resistance （R o N） - R₀ₙ = 14mΩ at V I N = 5V (V B I A S = 5V)
- 6-A Maximum Continuous Switch Current
- Low Control Input Threshold Enables Use of 1.2-V, 1.8-V, 2.5-V and 3.3-V Logic
- Configurable Rise Time
- Quick Output Discharge (QOD)
- DFN8 2x2 8L Package
- ESD Performance Tested per JESD 22 - 2000V HBM and 1000V CDM
