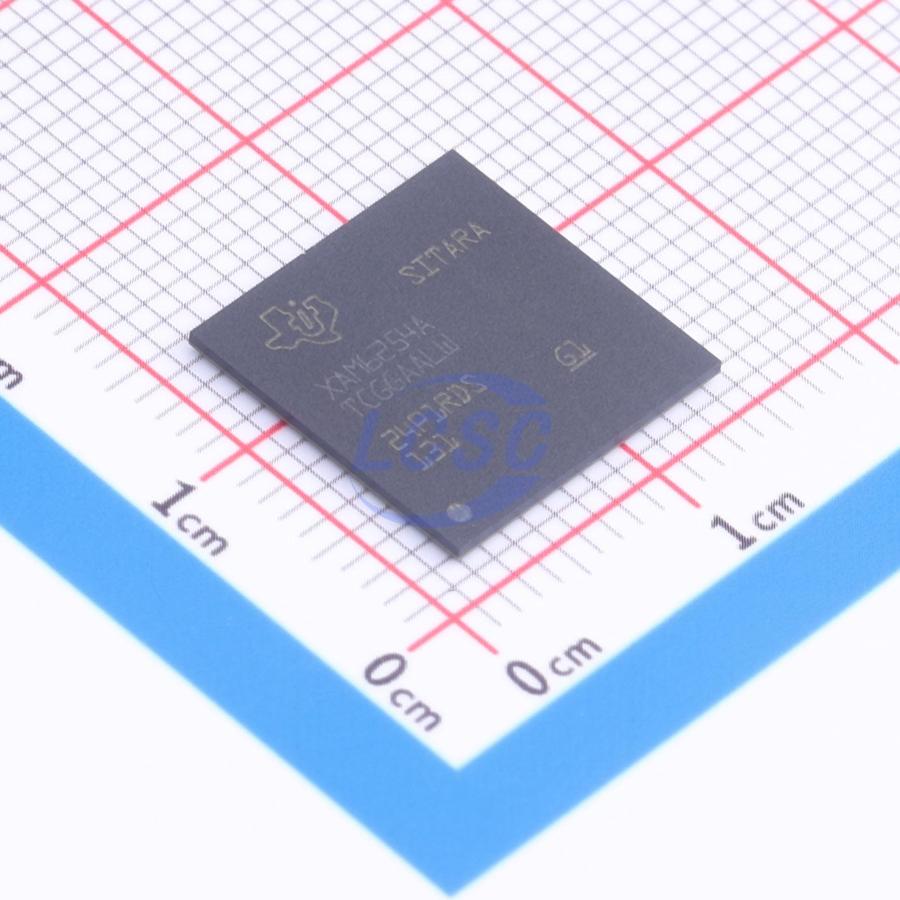

XAM6254ATCGGAALW

ARM Cortex-A53 64 Bit 1.4GHz FCCSP(ALW)-425 Microcontrollers

FCCSP(ALW)-425RoHSActive

Manufacturer: TI
Manufacturer part #: XAM6254ATCGGAALW
Store part #: C5218243
Package / case: FCCSP(ALW)-425
Category: Microcontrollers
Packaging: Tray

Datasheet (PDF)

Every Order Guarantee

100% Authentic · 30-Day Return or Replacement · policy

5 in stock

#C5218243

Stock & price checked 5 days ago

Quantity	Unit price	Pack price
1+	₹6,362.69	₹6,362.69
30+	₹6,022.04	₹1,80,661.20

Quantity (min 1)

1 × ₹6,362.69

₹6,362.69

excl. GST

₹7,507.97 incl. 18% GST

Need volume or a scheduled delivery? Request a quote

Dispatch in 15-18 working days
GST invoice with every order
Standard pack: 84 per tray

XAM6254ATCGGAALW

₹6,362.69 for 1 + GST

Need this with the rest of your board? Upload the BOM — we price every line.Upload BOM

Specifications

Operating Temperature: 0℃~+95℃
CPU Core: ARM Cortex-A53
Core Size: 64 Bit
CPU Maximum Speed: 1.4GHz
Oscillator Type: Built-in+External

Packaging & compliance

RoHS: RoHS
Lifecycle: Active
ECCN: 5A992C
Packaging: Tray
Standard pack: 84 / Tray
Sold per: Piece
Minimum order: 1
Unit weight: 16.7 g

Overview

The low-cost AM62x Sitara MPU series of application processors are built specifically for Linux application development. With scalable Arm Cortex-A53 performance and embedded features such as dual display support and 3D graphics acceleration, as well as a wide range of peripherals, the AM62x devices are well-suited for a broad spectrum of industrial and automotive applications, while also offering intelligent features and an optimized power architecture. Some of these applications include: industrial HMIs, electric vehicle charging stations, contactless building access control, and driver monitoring systems. The 13mm×13mm package (ALW) models of the AM62x Sitara processors are industrial-grade processors, while the 17.2mm×17.2mm package (AMC) models meet the AEC-Q100 automotive standard. The integrated Cortex-M4F cores and dedicated peripherals can be used to meet industrial and automotive functional safety requirements, and these cores and peripherals can be isolated from the rest of the AM62x processor. The 3-port Gigabit Ethernet switch has one internal port and two external ports, supporting Time-Sensitive Networking (TSN). The additional PRU module on the device provides real-time I/O capabilities for customers' own use cases. In addition, the AM62x contains a large number of peripherals for system-level connectivity, such as USB, MMC/SD, camera interfaces, OSPI, CAN-FD, and GPMC, which are used to connect the host interface in parallel to external ASICs/FPGAs. The AM62x devices also support secure boot through a built-in Hardware Security Module (HSM) for IP protection and offer advanced power management support for portable and power-sensitive applications.
