WXNSICDatasheet (PDF)

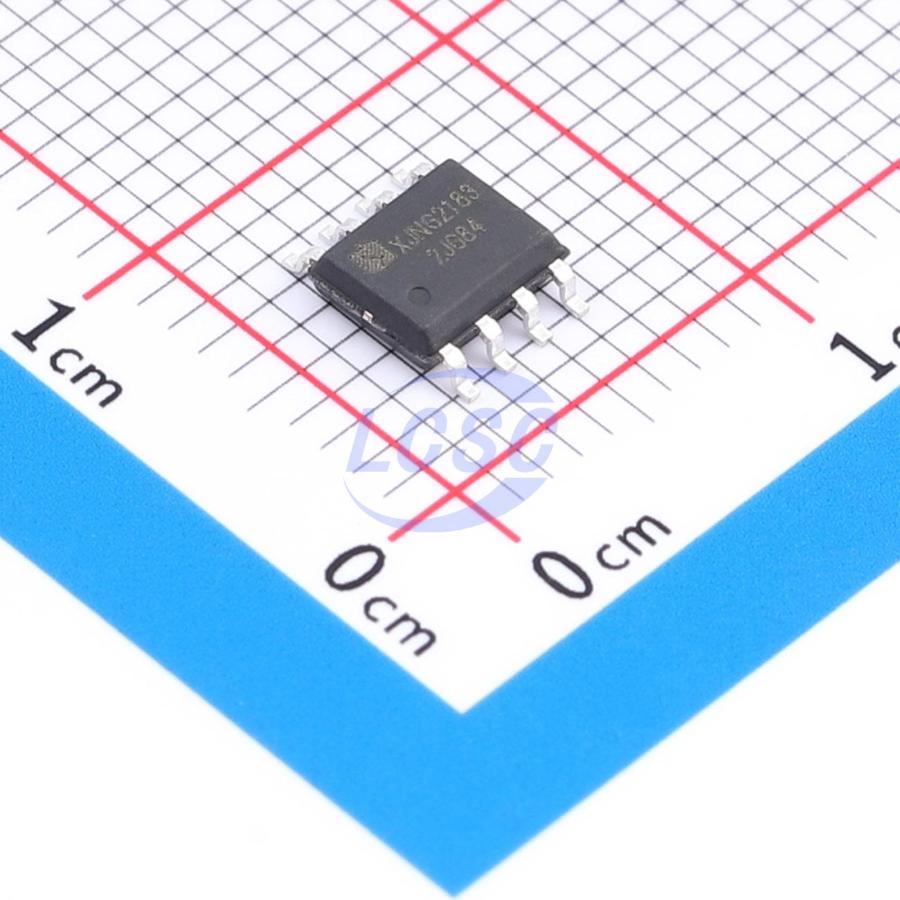

XJNG2183
4A 10V~20V 5A SOP-8 Gate Drivers
SOP-8RoHSActive
- Manufacturer
- WXNSIC
- Manufacturer part #
- XJNG2183
- Store part #
- C55862209
- Package / case
- SOP-8
- Category
- Gate Drivers
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
1,000 in stock
#C55862209
Stock & price checked 4 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹86.48 | ₹86.48 |
| 10+ | ₹69.97 | ₹699.70 |
| 30+ | ₹61.72 | ₹1,851.60 |
| 100+ | ₹53.67 | ₹5,367.00 |
| 500+ | ₹48.69 | ₹24,345.00 |
| 1,000+ | ₹46.29 | ₹46,290.00 |
1 × ₹86.48
₹86.48
excl. GST
₹102.05 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 4,000 per reel
XJNG2183
₹86.48 for 1 + GST
Specifications
- Input Logic Level - Low
- 800mV
- Rise Time
- 40ns
- Low Level Delay Time
- 130ns
- High Level Delay Time
- 130ns
- Fall Time
- 20ns
- Features
- Dead-time control;Interleaved conduction protection
- Current - Output High(IOH)
- 4A
- Load Type
- MOSFET;IGBT
- Quiescent Current
- 280uA
- Input Logic Level - High
- 2.5V
- Voltage - Supply
- 10V~20V
- Operating Temperature
- -40℃~+125℃
- Current - Output Low(IOL)
- 5A
Packaging & compliance
- RoHS
- RoHS
- Lifecycle
- Active
- Moisture sensitivity
- MSL 3 (168 hours)
- Packaging
- Tape & Reel (TR)
- Standard pack
- 4,000 / Reel
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 0.101 g
