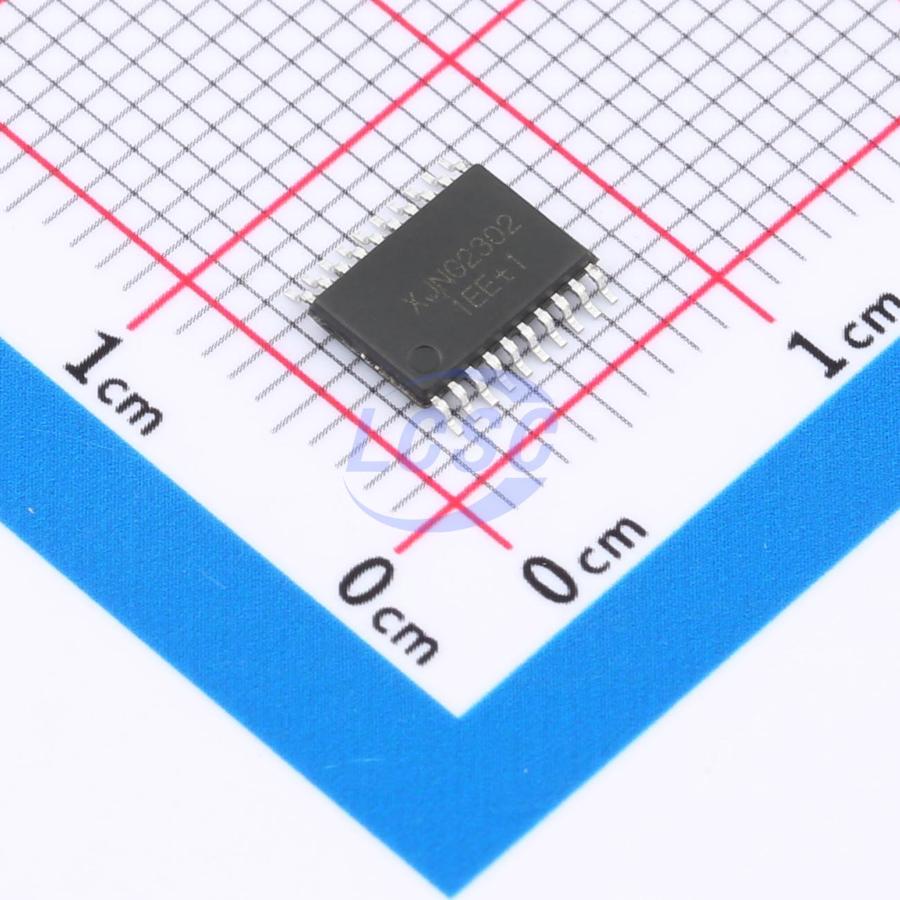

XJNG2302
Three Phase Half-Bridge Gate Driver IC MOSFET TSSOP-20
3-Phase 200V Half Bridge Driver
- Manufacturer
- WXNSIC
- Manufacturer part #
- XJNG2302
- Store part #
- C48542889
- Package / case
- TSSOP-20
- Category
- Gate Drivers
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
1,258 in stock
#C48542889
Stock & price checked 3 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹68.31 | ₹68.31 |
| 10+ | ₹53.99 | ₹539.90 |
| 30+ | ₹47.71 | ₹1,431.30 |
| 100+ | ₹40.11 | ₹4,011.00 |
| 500+ | ₹36.65 | ₹18,325.00 |
| 1,000+ | ₹34.48 | ₹34,480.00 |
1 × ₹68.31
₹68.31
excl. GST
₹80.61 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 4,000 per reel
XJNG2302
₹68.31 for 1 + GST
Specifications
- Low Level Delay Time
- 150ns
- High Level Delay Time
- 120ns
- Quiescent Current
- 230uA
- Voltage - Supply
- 7V~20V
- Operating Temperature
- -40℃~+125℃
- Driven Configuration
- Three Phase;Half-Bridge
- Current - Output Low(IOL)
- 1.8A
- Rise Time
- 30ns
- Fall Time
- 30ns
- Features
- Interleaved conduction protection;Dead-time control
- Current - Output High(IOH)
- 1.5A
- Load Type
- MOSFET
Packaging & compliance
- RoHS
- ROHS Compliant
- Lifecycle
- Active
- Moisture sensitivity
- MSL 3 (168 hours)
- Packaging
- Tape & Reel (TR)
- Standard pack
- 4,000 / Reel
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 0.521 g
Overview
XJNG2302 is a three-phase gate driver IC designed to drive high-side and low-side power MOSFETs in a half-bridge configuration. Its proprietary high-voltage IC and latch-up immune CMOS technology enable a robust monolithic structure. Logic inputs are compatible with standard CMOS or LSTTL outputs, down to 3.3V logic levels. The output drivers feature high-pulse-current buffer stages designed to minimize driver shoot-through. Floating channels are available for driving N-channel power MOSFETs in high-side configurations, with operating voltages up to 200V.
Applications
- Three-phase brushless DC motor driver
- Industrial motor control
Key features
- Full operating voltage to +200V
- dV/dt immunity ±50V/ns
- Typical negative bias voltage capability -9V
- Gate drive supply voltage range 7V to 20V
- Compatible with 3.3V/5V input logic
- Under-voltage lockout on all channels
- Cross-conduction prevention logic
- Typical source/sink current capability 1.5A/1.8A
