XTX

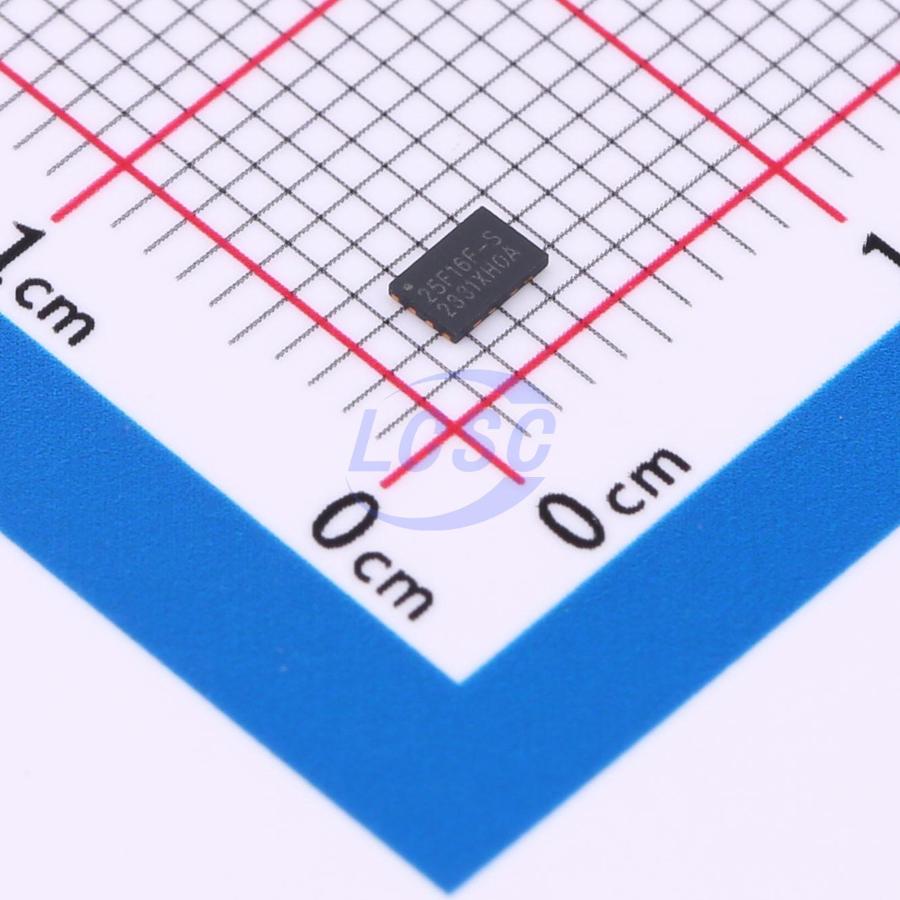

XT25F16FDTIGT-S
16Mbit 2.3V~3.6V 133MHz SPI DFN-8(2x3) Memory RoHS
DFN-8(2x3)ROHS CompliantActive
Quad I/O Serial NOR Flash
Datasheet (PDF)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
1,679 in stock
#C29781641
Stock & price checked 4 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹112.20 | ₹112.20 |
| 10+ | ₹89.16 | ₹891.60 |
| 30+ | ₹77.41 | ₹2,322.30 |
| 100+ | ₹66.11 | ₹6,611.00 |
| 500+ | ₹63.05 | ₹31,525.00 |
| 1,000+ | ₹59.36 | ₹59,360.00 |
1 × ₹112.20
₹112.20
excl. GST
₹132.40 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
XT25F16FDTIGT-S
₹112.20 for 1 + GST
Specifications
- Operating Temperature
- -40℃~+85℃
- Features
- Write enable latch;Hardware write protection;Software write protection;Absolute write protection
- Memory Size
- 16Mbit
- Voltage - Supply
- 2.3V~3.6V
- Program / Erase Cycles
- 100,000 cycles
- Clock Frequency
- 133MHz
- Data Retention - TDR (Year)
- 20 Years
- Block Erase Time(tBE)
- 120ms@(32KB);150ms@(64KB)
- Page Programming Time (Tpp)
- 400us
- Standby Supply Current
- 0.3uA
- Interface
- SPI
Packaging & compliance
- RoHS
- ROHS Compliant
- Lifecycle
- Active
- Moisture sensitivity
- MSL 3 (168 hours)
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 0.234 g
Overview
The XT25F16F-S (16M-bit) Serial flash supports the standard Serial Peripheral Interface (SPI), and supports the Dual/Quad SPI: Serial Clock, Chip Select, Serial Data I/O0 (SI), I/O1 (SO), I/O2 (WP#), and I/O3 (HOLD#).
Key features
- Sector of 4K-byte Block of 32/64k-byte
- Advanced Security Features 3*1024-Byte Security Registers With OTP Lock
- Write protect all/portion of memory via software Enable/Disable protection with WP# Pin Top or Bottom Block Protection
- Allows XIP(Execute In Place)Operation High speed Read reduce overall XIP instruction fetch time
- Continuous Read With 8/16/32/64-byte Wrap
- Temperature Range & Moisture Sensitivity Level: Industrial Level Temperature (-40℃ to +85℃), MSL3; Industrial Plus Level Temperature (-40℃ to +105℃), MSL3
- Power Consumption: 0.3μA typ. Deep Power-Down current
- Single Power Supply Voltage: 2.3~3.6V
- Endurance And Data Retention: Minimum 100,000 Program/Erase Cycle; 20-year Data Retention typical
- High Speed Clock Frequency: 133MHz for fast read with 30pF load; Dual I/O Data transfer up to 266Mbit/s; Quad I/O Data transfer up to 532Mbit/s
- Program/Erase Speed: Page Program time: 0.4ms typical; Sector Erase time: 45ms typical; Block Erase time: 0.12s/0.15s typical; Chip Erase time: 5s typical
